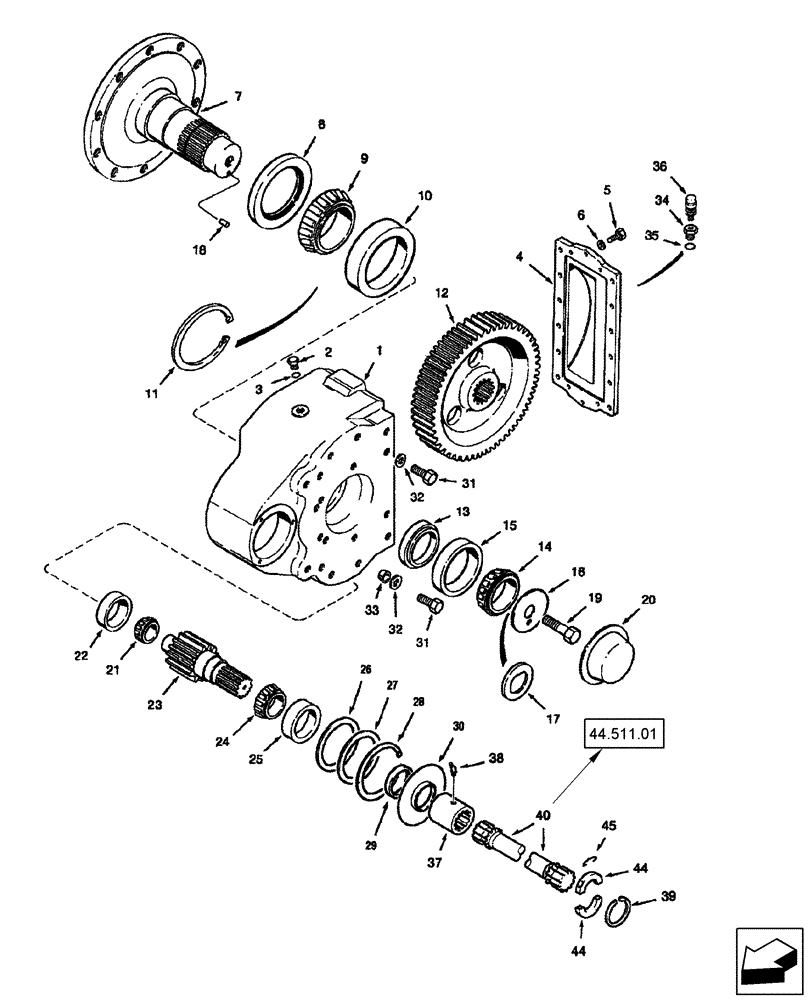

Запчасти Case IH 2577 (25.310.01) - FINAL DRIVE ASSY (25) - FRONT AXLE SYSTEM

87392269

DRIVE AXLE

Final Drive, Heavy Duty, Incl 1 - 6, 7A, 8, 9A, 10 - 30

2шт.

87392269R

REMAN-AXLE

Reman for New P/N 87392269

2шт.

87392269C

CORE-TRANSMISSION

Return Part Number

2шт.

87392267R

REMAN-TRANSMISSION

Final Drive

2шт.

87392267C

CORE-TRANSMISSION

Return Part Number

2шт.

1

135285A2

HOUSING

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

135286A1

COVER

1шт.

5

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

7

87338661

HUB

Output

1шт.

8

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

1шт.

9

335947A1

ROLLER BEARING,133.35mm ID x 46.04mm W

1шт.

10

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

1шт.

11

135297A1

CIRCLIP

1шт.

12

87354349

GEAR

73T, Final Drive

1шт.

13

135307A1

SPACER

1шт.

14

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

1шт.

15

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

1шт.

16

135289A1

RETAINER

1шт.

17

135299A1

SHIM,0.051mm Thk

(0.002")

1шт.

17

135300A1

SHIM,0.457mm Thk

(0.018")

1шт.

17

135301A1

SHIM,0.635mm Thk

(0.025")

1шт.

18

37-1512

DOWEL,5/16" x 3/4"

1шт.

19

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

1шт.

20

135296A1

BEARING COVER

1шт.

21

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

1шт.

22

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

1шт.

23

87354348

SHAFT

12T, Input

1шт.

24

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

1шт.

25

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

1шт.

26

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

(0.002")

1шт.

26

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

(0.018")

1шт.

26

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

(0.025")

1шт.

27

193652A1

WASHER

1шт.

28

101-21412

SNAP RING,#412, 4.430", Int

1шт.

29

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

1шт.

30

135291A1

GUARD

1шт.

31

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

26шт.

32

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3.4 mm

26шт.

33

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

1шт.

34

135950A1

ADAPTER

1/8" PT x 1-1/16" Or, Incl 35

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

2шт.

37

248600A1

COUPLING

Incl 38

4шт.

38

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

39

123763A1

SNAP RING

4шт.

40

242846A1

SHAFT

748 mm

2шт.

Models without Axle Extensions

1шт.

40

242852A1

SHAFT

904 mm, Used with 242462A1, 370220A1 Extensions

2шт.

40

242859A1

SHAFT

1046 mm, Used with 240851A1 Extension

2шт.

40

356460A1

SHAFT

1092 mm, Used with 356418A1 Extension

2шт.

44

244549A1

COLLAR

Inc. 44A Two Piece Collar Shaft

2шт.

44a

62-33116

HEX SOC SCREW,5/16" - 24 x 1"

(Not Shown)

1шт.

45

245105A2

CLIP

4шт.
