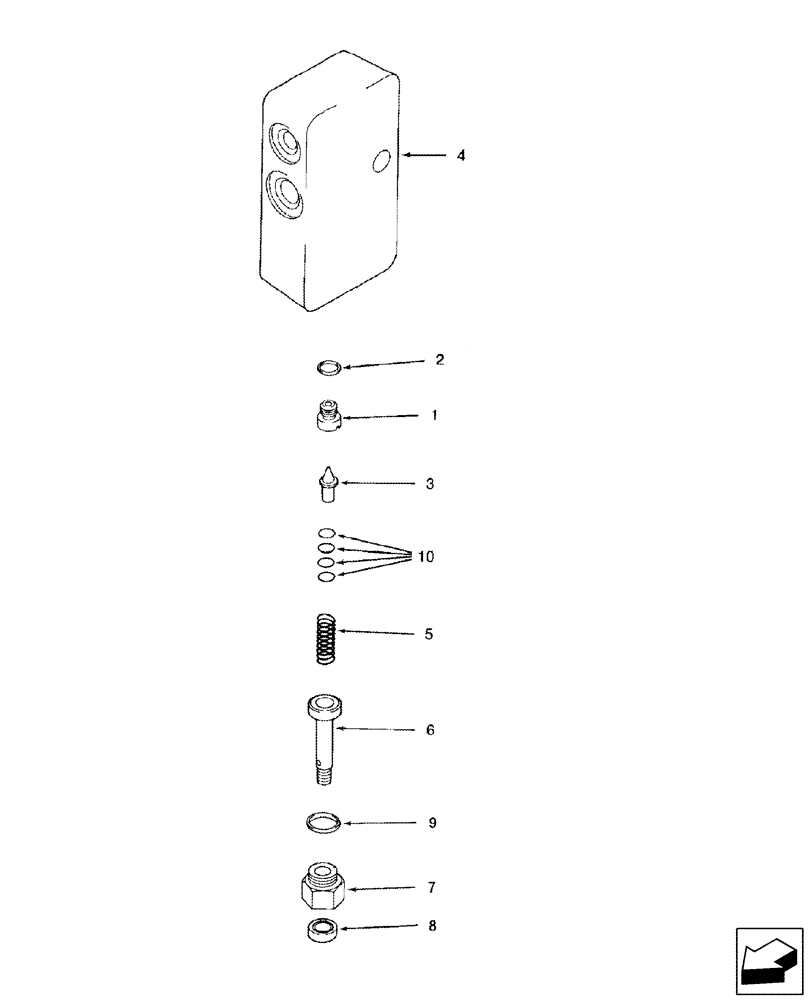

Запчасти Case IH 2577 (21.135.02) - VALVE ASSY - FOOT-N-INCH (21) - TRANSMISSION

123974A4

VALVE

Foot-N-Inch, 6000 psi, Incl 1 - 10

1шт.

1

123595A2

SEAT, VALVE

1шт.

2

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

3

398710R1

VALVE POPPET

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

5

539751R2

SPRING

1шт.

6

398708R1

STOP

1шт.

7

398707R1

GUIDE

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

530575R91

SHIM KIT

Incl 10

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM, 0.005"

4шт.

10

NSS

NOT SOLD SEPARAT

SHIM, 0.007"

4шт.

10

NSS

NOT SOLD SEPARAT

SHIM, 0.020"

2шт.

10

NSS

NOT SOLD SEPARAT

SHIM, 0.042"

1шт.
