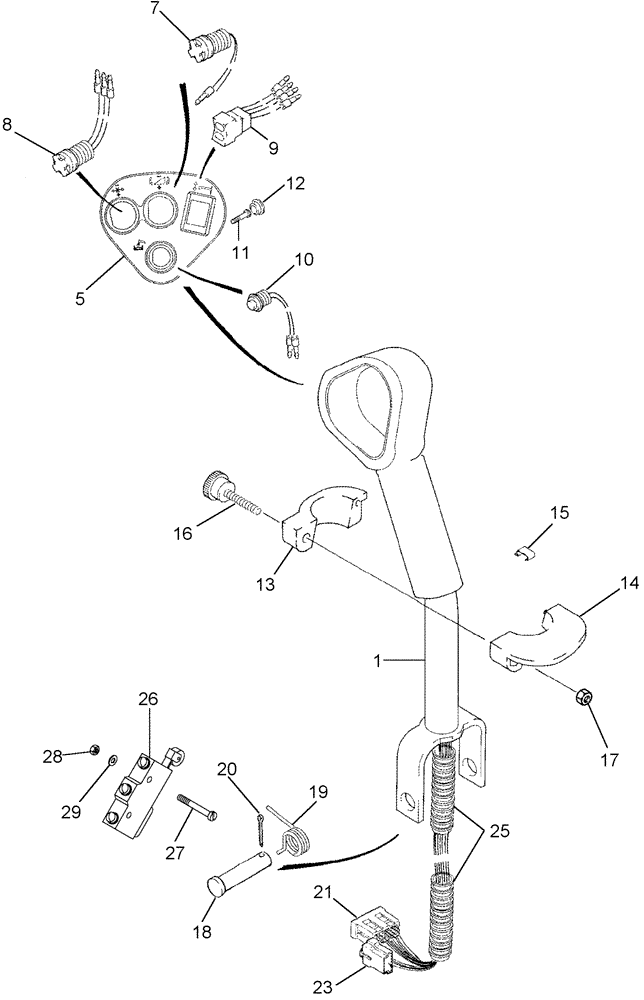

Запчасти Case IH 2388 (04-07) - LEVER ASSY - PROPULSION CONTROLS (06) - ELECTRICAL

1

113314A2

CONTROL LEVER

Propulsion

1шт.

5

124669A1

PLATE

1шт.

6

144109A2

DECAL

(Not Shown)

1шт.

See Figure 09H-23

1шт.

7

87318441

SWITCH ASSY

Header Control

1шт.

8

118680A1

SWITCH

Reel Control

1шт.

9

118683A1

SWITCH

Unloader Swing

1шт.

10

127597A1

SWITCH

Unloader Auger

1шт.

11

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

1шт.

12

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

13

116150A1

SUPPORT

Palm Rest, Left Hand

1шт.

14

116152A1

SUPPORT

Palm Rest, Right Hand

1шт.

15

1343962C1

CLIP,ELECTRICAL

1шт.

16

86987885

KNOB

Palm Rest

1шт.

17

425-104

NUT,1/4"-20, Cl 5

1шт.

18

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

19

128593A1

SPRING

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1шт.

21

225388C1

ELEC CONNECTOR,Male, 12 Pin

Type NA

1шт.

22

225390C1

WEDGE

Type NF, (Not Shown)

1шт.

23

225350C1

ELEC CONNECTOR,Male, 6 Pin

TYPE LY

1шт.

24

225353C1

WEDGE,Lock, Black

Type W6P, (Not Shown)

1шт.

25

120344C1

CONDUIT

184 mm (7-1/4 in)

1шт.

26

141655A1

SWITCH

Limit - Unloader

1шт.

27

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

28

225-14104

NUT,#4-40

2шт.

29

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.
