Запчасти Case IH 2388 (04-01) - HARNESS - FRONT (06) - ELECTRICAL

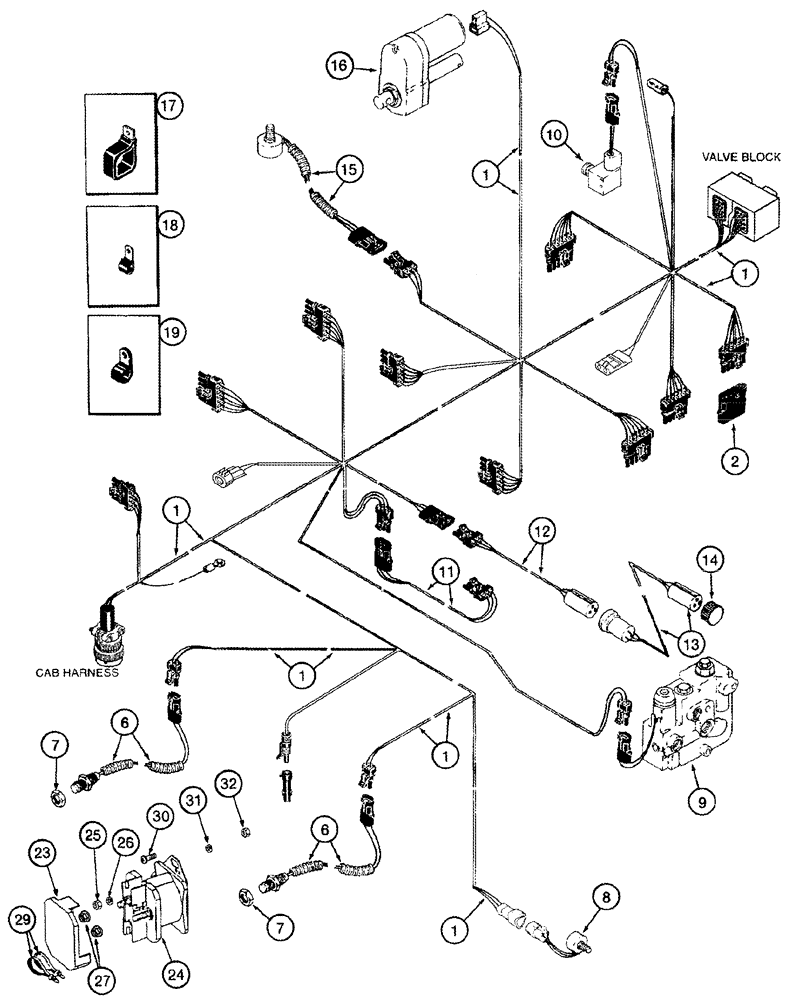

Схема запчастей Case IH 2388 - (04-01) - HARNESS - FRONT (06) - ELECTRICAL
8
6
1
19
30
7
15
9
1
18
32
2
13
14
10
17
31
25
1
11
8
1
12
23
16
29
7
1
26
27
1
24

Артикул

Название

Примечание

Количество

1

87309736

WIRE HARNESS

Front, Inc. 2 - 4

1шт.

2

127290A1

DIODE

1шт.

3

187308A1

CAP

(Not Shown)

6шт.

4

187309A1

BAR

Splice, (Not Shown)

6шт.

6

245193C2

SENSOR

Rotor Speed, Feeder Speed

2шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

8

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Feeder Position, For Mounting

1шт.

See Figure 04-21

1шт.

9

87374793

VALVE

Reel Drive

1шт.

See Figure 08-20

1шт.

10

368154A1

CONTROL VALVE

Accumulator

1шт.

See Figure 08-31

1шт.

11

142570A1

WIRE HARNESS

Header Lighting

1шт.

12

142553A1

WIRE HARNESS

Automatic Header Height Control

1шт.

13

1331312C1

WIRE HARNESS

Extension, Header Height Control, If Used

1шт.

14

225290C1

DUST CAP

Header Height Control Harness

1шт.

15

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Concave Position, For Mounting

1шт.

See Figure 04-02

1шт.

16

143239A2

MOTOR, ELECTRIC

Concave Control, For Mounting

1шт.

See Figure 09B-19

1шт.

16

143239A2R

REMAN-ELECTRIC MOTOR

2388, (RU) ASN HAJ300001

1шт.

16

143239A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

17

1301387C2

CLIP

2 in ID

1шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

6шт.

18

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

(Not Shown)

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

(Not Shown)

1шт.

22

142533A1

SUPPORT

(Not Shown)

1шт.

With Accumulator

1шт.

With Field Tracker

1шт.

178149A1

SOLENOID SWITCH

Inc. 23 - 29

1шт.

23

178148A1

COVER

1шт.

24

183038A1

SOLENOID

Switch

1шт.

25

225-14210

NUT,#10-32

Battery Cable to Solenoid Terminal 30

1шт.

26

492-11010

LOCK WASHER,#10

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

Harness to Solenoid Terminal 50

1шт.

28

892-11005

LOCK WASHER,M5

(Not Shown)

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

29

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

30

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

31

492-11031

LOCK WASHER,5/16"

2шт.

32

425-105

NUT,5/16"-18, G5

2шт.

33

492-11010

LOCK WASHER,#10

1шт.

34

225-14210

NUT,#10-32

1шт.
