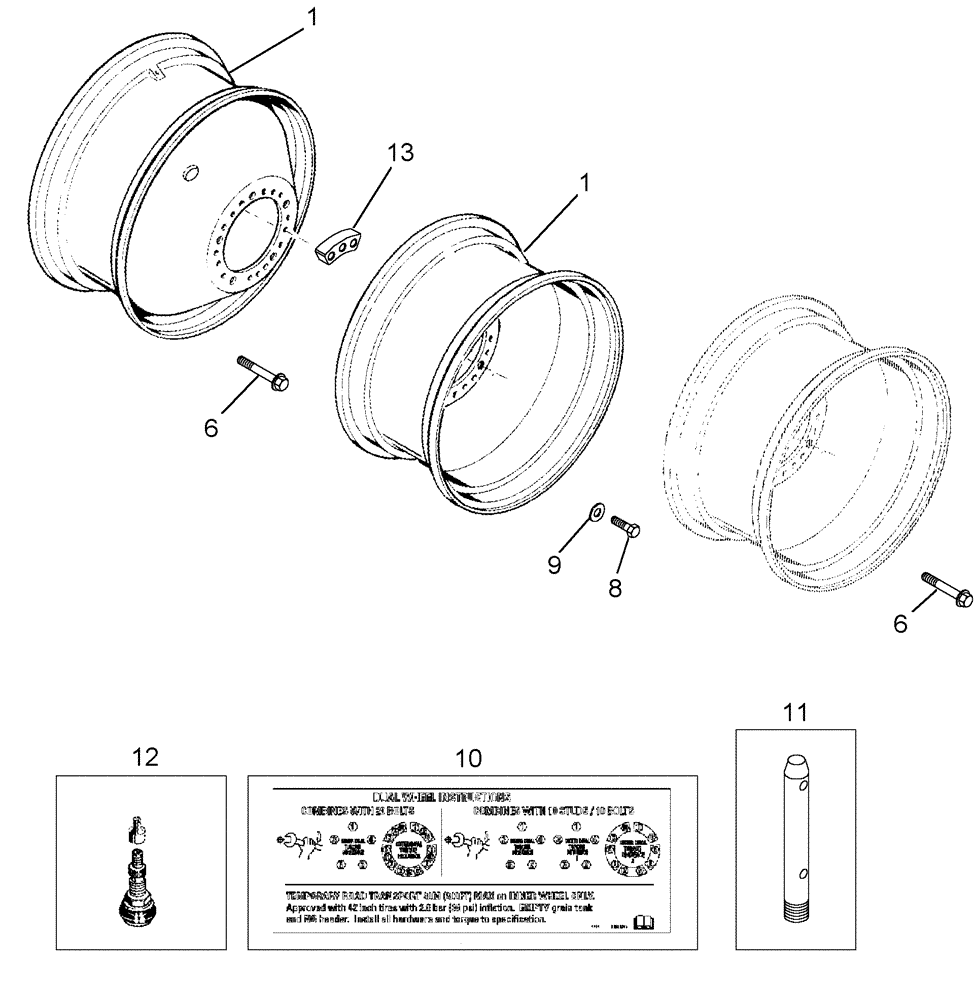

Запчасти Case IH 2388 (06-26) - WHEELS - DRIVE- DUAL (03) - POWER TRAIN

1

87386315

WHEEL ASSY.

18.4 x 42 Inch Tire

4шт.

1

87386313

RIM

20.8 x 42 Inch Tire

4шт.

1

87386310

WHEEL ASSY

20.8 x 38" Tire

4шт.

6

87367560

BOLT

M20 X1.5 X 95 12.9

30шт.

8

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

M22 x 55: 10.9

10шт.

9

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

23 x 37 x 5 mm

10шт.

10

87563205

DECAL

Dual Wheel

2шт.

See Figure 09H-21

1шт.

11

87283521

STUD,M22 x 180

Drive Wheel Starter

2шт.

12

395448

VALVE STEM

7/16 in dia, Used With Tubeless Tires, If Used

2шт.

13

87327940

PLATE

Wheel Mounting Spacer

10шт.
