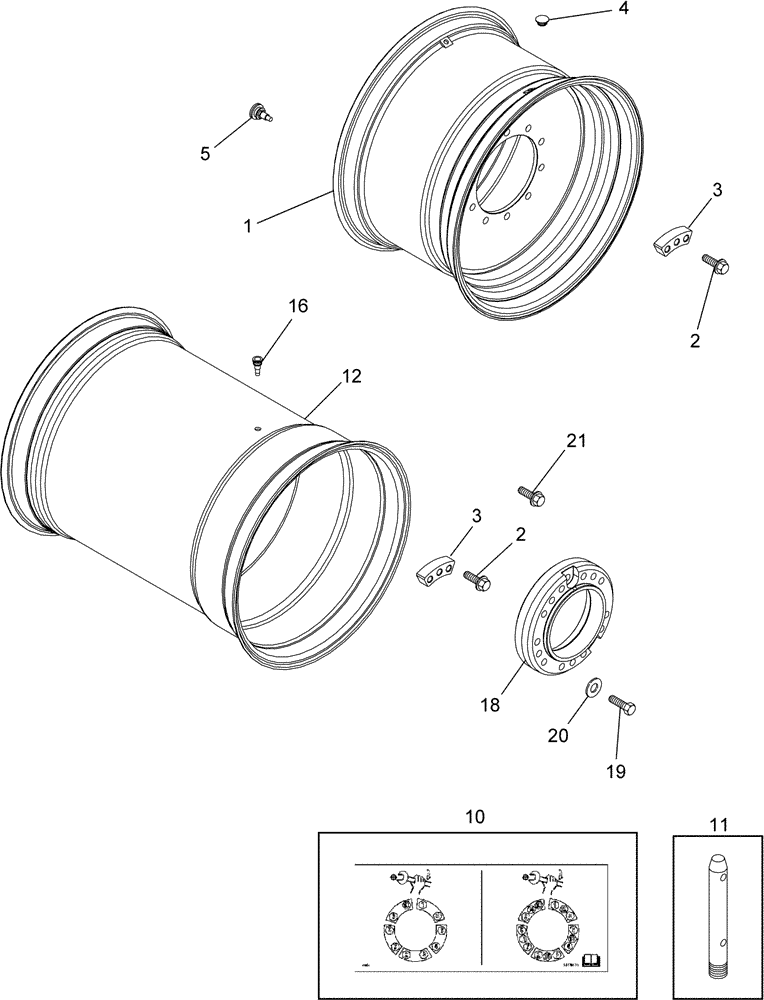

Запчасти Case IH 2388 (06-25) - WHEELS - DRIVE - SINGLE (03) - POWER TRAIN

1

87393349

WHEEL ASSY

Used with Bias 24.5 x 32" Tire

2шт.

With 10 Bolt Mounting

1шт.

1

87411121

WHEEL

24.5 x 32 Inch Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

87393054

WHEEL ASSY

800/54- R32 Tire, 800/65 - R32 Tire

2шт.

With 10 Bolt Mounting

1шт.

2

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

Flange, M22 x 75; 12.9

1шт.

3

87598803

PLATE

Wheel Mounting Spacer

10шт.

4

417194C1

PLUG

Used With Tubeless Tires, If Used

2шт.

4

359846A1

PLUG

Used With Tubeless Tires, If Used

2шт.

4

383697R1

PLUG

Used With Tube Type Tires

2шт.

4

86998062

PLUG

Used With Tube Type Tires

2шт.

5

179482C1

VALVE STEM

7/16 in dia, Used With Tubeless Tires

2шт.

5

87106339

VALVE STEM

Used With Tube Type Tires

2шт.

6

407184R1

VALVE

Core, Used With Tubeless Tires

2шт.

7

87393052

WHEEL ASSY

Used with Bias 30.5L x 32 Inch Tire

2шт.

8

427374A1

BOLT

Flange, M20 x 70

1шт.

8

427373A1

BOLT

M20 x 85; 10.9

1шт.

8

430666A1

BOLT

M20 x 45; 10.9

1шт.

9

130871A3

SPACER

1шт.

10

403425A1

DECAL

Bolt Torque, Single Drive Wheel

2шт.

See Figure 09H-21

1шт.

11

87283521

STUD,M22 x 180

Drive Wheel Starter

2шт.

12

237825A2

WHEEL

68 x 50 in, 16pr hf3 Hi-Flotation Tire

2шт.

16

86997685

TIRE TUBE

Used With Tubeless Tires

2шт.

18

87398579

SPACER

76 mm

2шт.

19

87515082

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

20шт.

20

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

20шт.

21

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

4шт.
