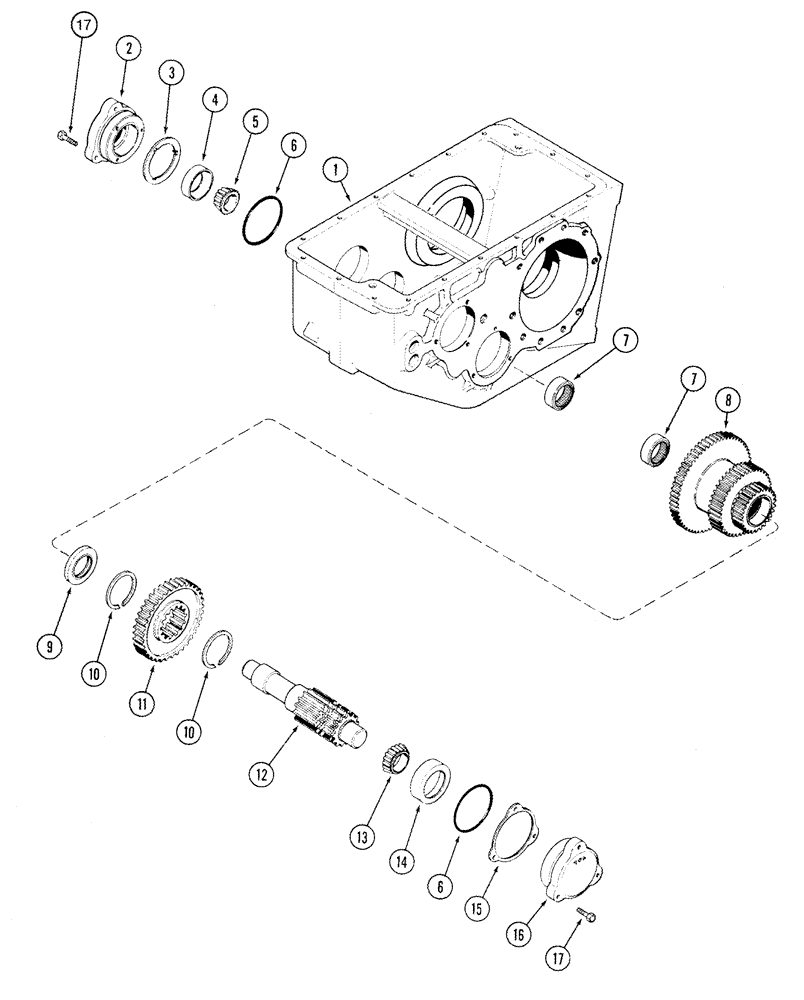

Запчасти Case IH 2388 (06-20) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN

87393461

TRANSMISSION

37/35 Change Gears, Inc. 1 - 17, Also Inc. Parts On Figure(s) 06-19, 06-21

1шт.

Corn and Grain Combine

1шт.

87393461R

REMAN-TRANSMISSION

37/35 Change Gears, Corn and Grain Combine

1шт.

87393461C

CORE-TRANSMISSION

Return Number

1шт.

87393465

TRANSMISSION

34/38 Change Gears, Inc. 1 - 17, Also Inc. Parts On Figure(s) 06-19, 06-21

1шт.

Rice Combine

1шт.

87393465R

REMAN-TRANSMISSION

34/38 Change Gears, Rice Combine

1шт.

87393465C

CORE-TRANSMISSION

Return Number

1шт.

1

REF

INSTRUCTION

Housing

1шт.

See Figure 06-19, REF 1

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER Left Hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

1шт.

4

131312C1

BEARING CUP

Left Hand Pinion Shaft

1шт.

5

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

2шт.

7

675708R91

NEEDLE BEARING

2шт.

8

87305298

GEAR,59T, 39T, 27T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

1шт.

10

196693H1

RING

2шт.

11

1997649C1

PINION,35T

Change Driven

1шт.

Corn and Grain Combine

1шт.

11

1349045C1

PINION

38T, Change Driven

1шт.

Rice Combine

1шт.

12

87354341

SHAFT

14T

1шт.

13

57862H

BEARING CONE,1.625" ID x 3.375" OD x 1.1875"

1шт.

14

57861H

BEARING CUP

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003")

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005")

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030")

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING Right Hand

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

Use 345-181 Loctite No. 516, 1ml

1шт.
