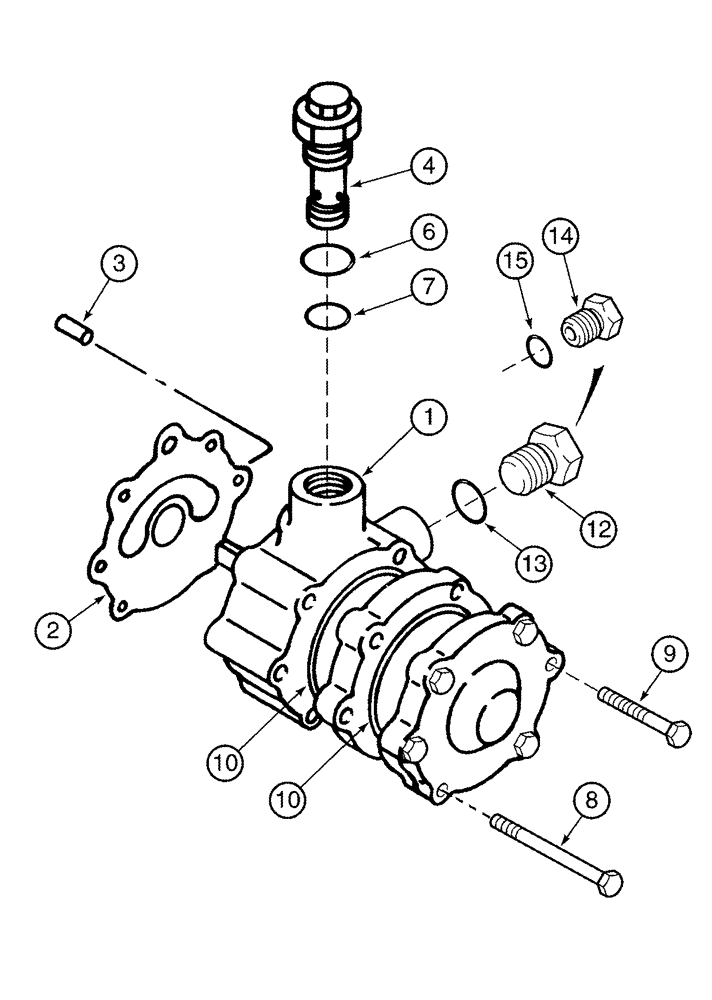

Запчасти Case IH 2388 (06-11) - PUMP ASSY - HYDROSTATIC - CHARGE PUMP - RICE COMBINE (03) - POWER TRAIN

REF

INSTRUCTION

Pump, Hydrostatic

1шт.

See Figure(s) 06-08 - 06-12

1шт.

107593A2

PUMP

Charge, Inc. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

133760C2

GASKET

1шт.

3

37-1510

DOWEL,5/16" x 5/8"

2шт.

1986741C1

VALVE PRESSURE RELIE

Inc. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

8

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

9

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

10

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

2шт.

12

86512512

PLUG,7/8" - 14 ORB

Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

196443A1

REDUCER

7/16 fem x 7/8 in Or, Replaces 218-5157, REF 12, Inc. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

255081A1

SEAL KIT

Charge Pump, Inc. 2, 6, 7, 13

1шт.
