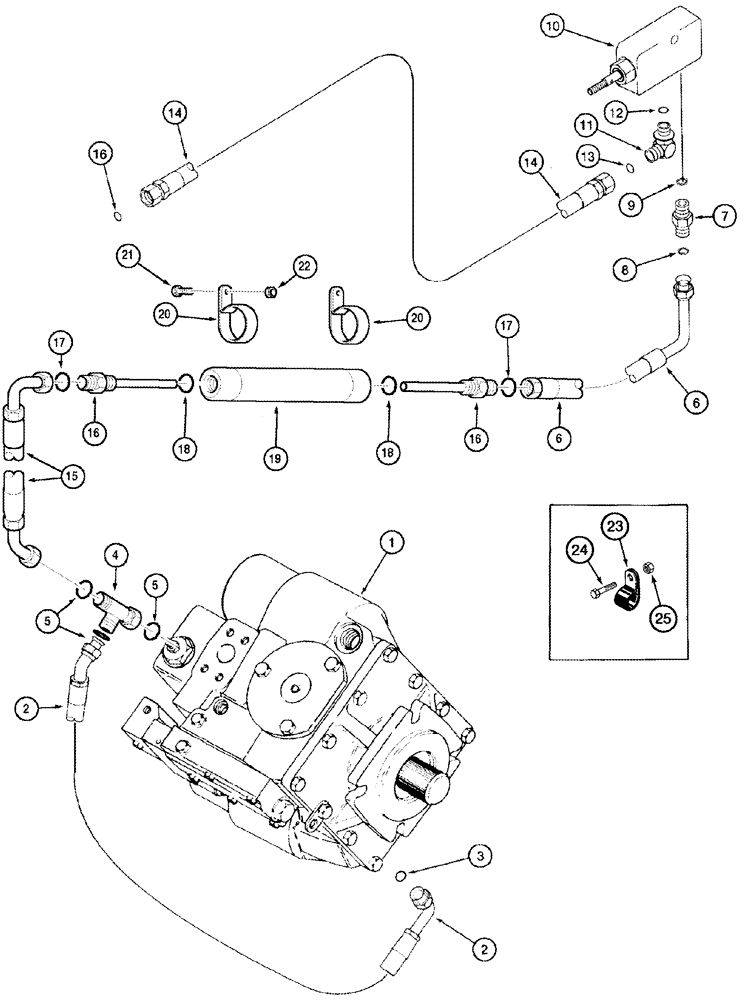

Запчасти Case IH 2388 (06-05) - HYDRAULICS - FOOT-N-INCH VALVE (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
MOTOR, Hydrostatic
1шт.
See Figure(s) 06-13 - 06-16, Two Speed, Illustrated
1шт.
2
141127A3
HOSE,6.35mm ID x 400mm L
400 mm (15-3/4 in), At Motor Relief Valve
1шт.
3
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
5
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
3шт.
6
141126A2
HOSE,6.35mm ID x 2800mm L
2800 mm (110-1/4 in), Supply, Foot-N-Inch Valve
1шт.
7
201-100
HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
Inc. 8, 9
1шт.
8
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
9
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
10
REF
INSTRUCTION
VALVE Assy, Foot-N-Inch
1шт.
See Figure 06-07
1шт.
11
201-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 12, 13
1шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
13
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
14
141158A2
FLEXIBLE HOSE
651 mm (25-5/8 in), Return, Foot-N-Inch Valve
1шт.
15
244209A3
HOSE ASSY.,620 mm Length
620mm (24-13/32 in), Foot-N-Inch Supply to Tube
1шт.
16
243956A1
FITTING
Inc. 17, 18
2шт.
17
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
242967A1
TUBE,31.6 mm ID, 41.3 mm OD, 270 mm Length
Supply, Foot-N-Inch Valve
1шт.
20
243755A1
CLAMP,39.67mm ID, 10.3mm Bolt Hole, P Type
1-9/16 ID
2шт.
21
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
2шт.
22
231-5146
FLANGE NUT,3/8"-16
2шт.
23
515-23206
CLAMP,13/16", Insul, 3/8" Bolt
P-type, For Return Hose
1шт.
23
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
For supply hose
4шт.
24
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
25
825-5148
SERRATED NUT,M8, Flg Ser
4шт.
26
1327979C1
MOLDING
152 mm (6 in), (Not Shown)
1шт.
Выбрано товаров: 29
