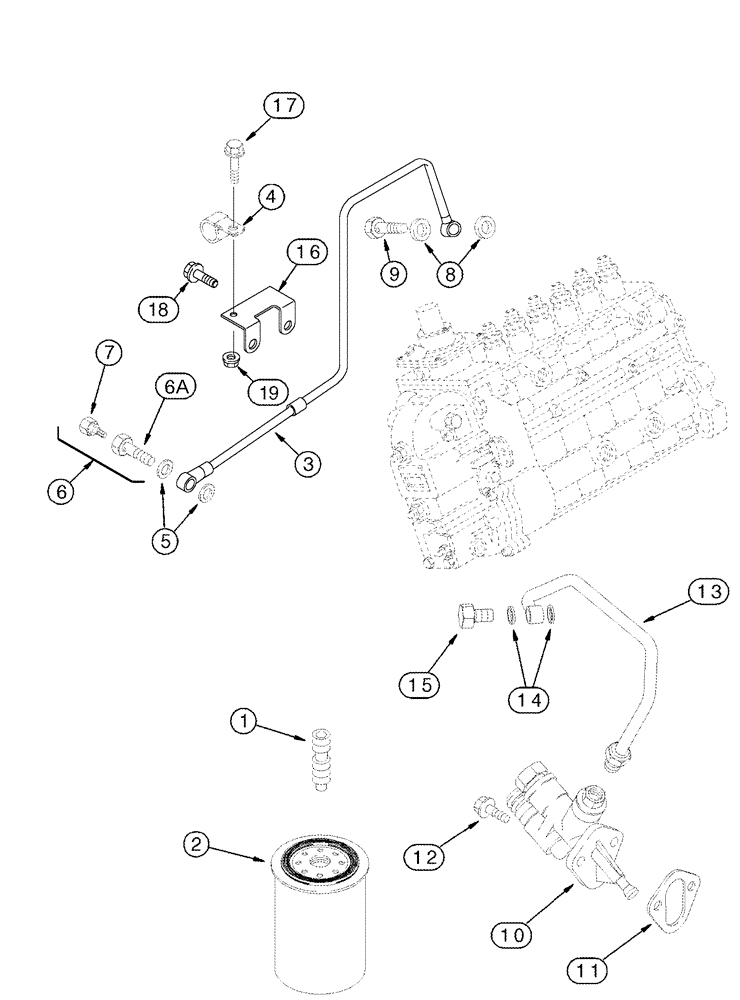

Запчасти Case IH 2388 (03-03) - FUEL FILTER - PUMP, TRANSFER (02) - FUEL SYSTEM

1

J925954

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J931063

FUEL FILTER

1шт.

3

87436149

FUEL TUBE,479.8, 94.1 mm L

Fuel Supply, Combination Flexible Hose and Rigid Tube

1шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

5

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 mm

2шт.

6

J905860

BANJO BOLT

Inc. 6A, 7

1шт.

6a

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

7

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

M6 x 10

1шт.

8

J863988

SEALING WASHER

Sealing

1шт.

9

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

10

J936316

FUEL PUMP

1шт.

11

J939258

GASKET,1.21mm Thk

1шт.

12

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

2шт.

13

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

14

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

2шт.

15

J916361

BANJO BOLT

1шт.

16

87436150

BRACKET

1шт.

17

283264A1

BOLT

M8 x 14; 10,9

1шт.

18

J924962

FLANGE BOLT

M8 x 16

2шт.

19

825-1408

NUT,M8, Cl 8

1шт.
