Запчасти Case IH 2388 (02-34) - KIT ENGINE OVERHAUL (01) - ENGINE

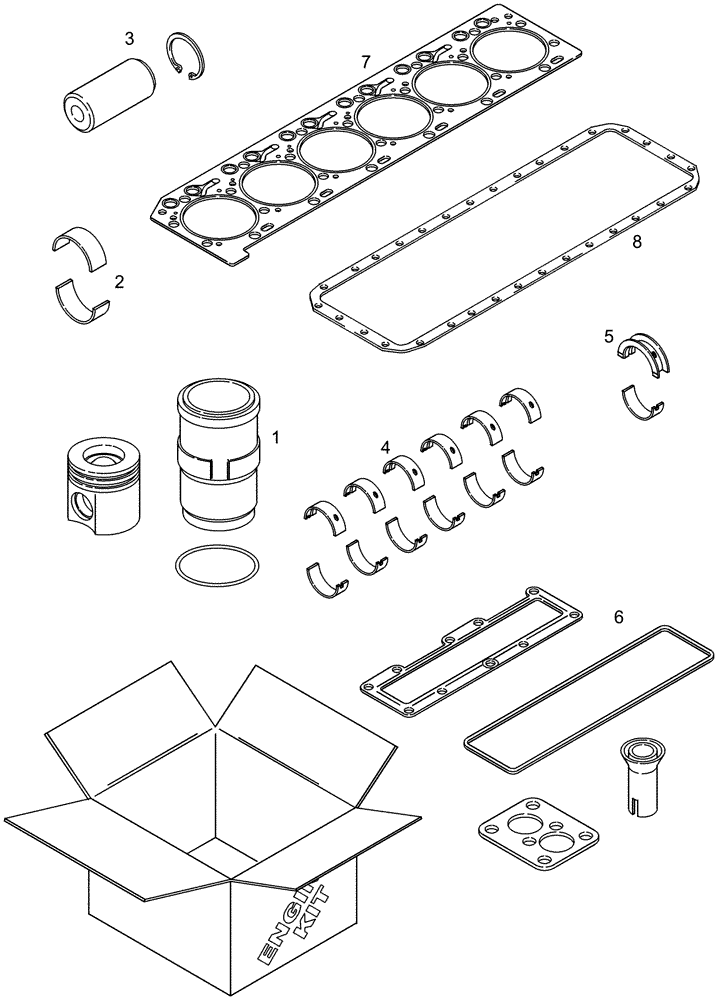

Схема запчастей Case IH 2388 - (02-34) - KIT ENGINE OVERHAUL (01) - ENGINE
4
1
8
7
3
5
6
2

Артикул

Название

Примечание

Количество

A78017

REPAIR KIT

Engine Overhaul, Inc. 1 - 8

1шт.

1

A77912

PACKAGE, REPAIR

Piston, Rings and Sleeve

6шт.

See Figure 02-28

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-28

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-28

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-27

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-27

1шт.

6

A78042

KIT

Valve Grind

1шт.

See Figure 02-32

1шт.

7

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

See Figure 02-22

1шт.

8

J938160

OIL PAN GASKET SET

Oil Pan

1шт.

See Figure 02-20

1шт.

Выбрано товаров: 17
