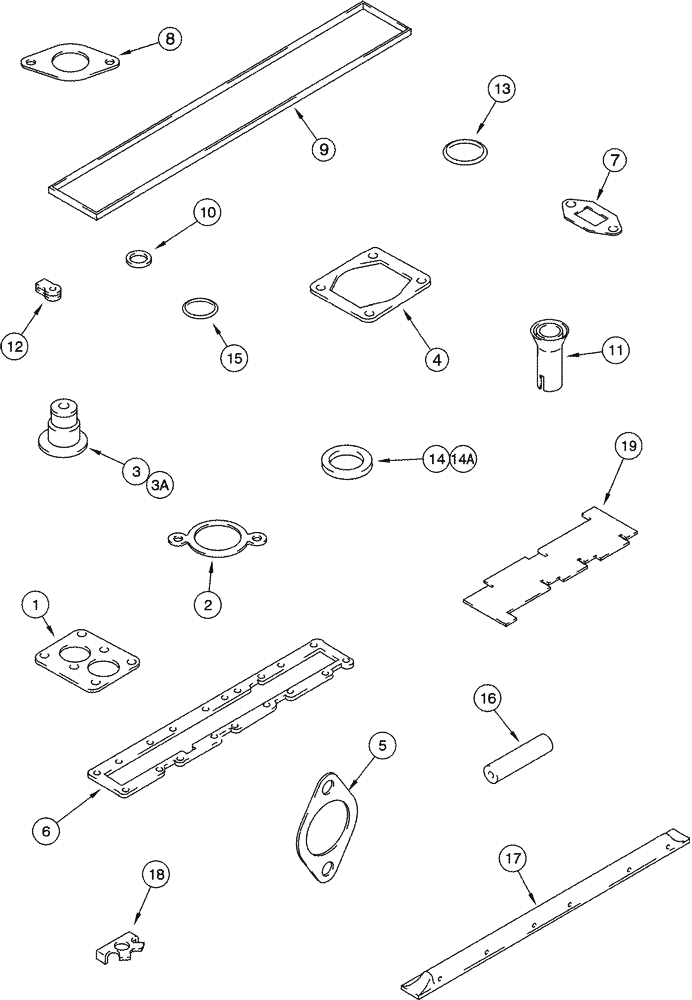

Запчасти Case IH 2388 (02-32) - GASKET KIT - VALVE GRIND (01) - ENGINE

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

A77976

GASKET KIT

Valve Grind, Inc. 1-19

1шт.

1

J914310

GASKET,0.8mm Thk

Thermostat Housing

1шт.

2

J918779

GASKET,1.19mm Thk

Water Outlet

1шт.

3

J927642

SEAL

Valve Stem

12шт.

4

J755843

GASKET,0.5mm Thk

Turbo Mount

1шт.

5

J932063

MANIFOLD GASKET,1.78mm Thk

Exhaust

1шт.

6

J936993

MANIFOLD GASKET,0.76mm Thk

Intake

1шт.

8

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

Valve Cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Valve Cover Bolts

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Injector

6шт.

12

J903380

SEAL

Banjo Connector

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

Injector Tip, 2.5 mm

6шт.

14a

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

Injector Tip, 1.5 mm

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water Filter Shut-off

1шт.

16

J930827

HOSE,51.00 mm

1шт.

17

J919677

TUBE

Rocker Arm Oil

1шт.

18

J914708

LOCKING PLATE

Exhaust Manifold Bolts

12шт.

19

87404692

GAUGE

Cylinder Head Bolt Length

1шт.
