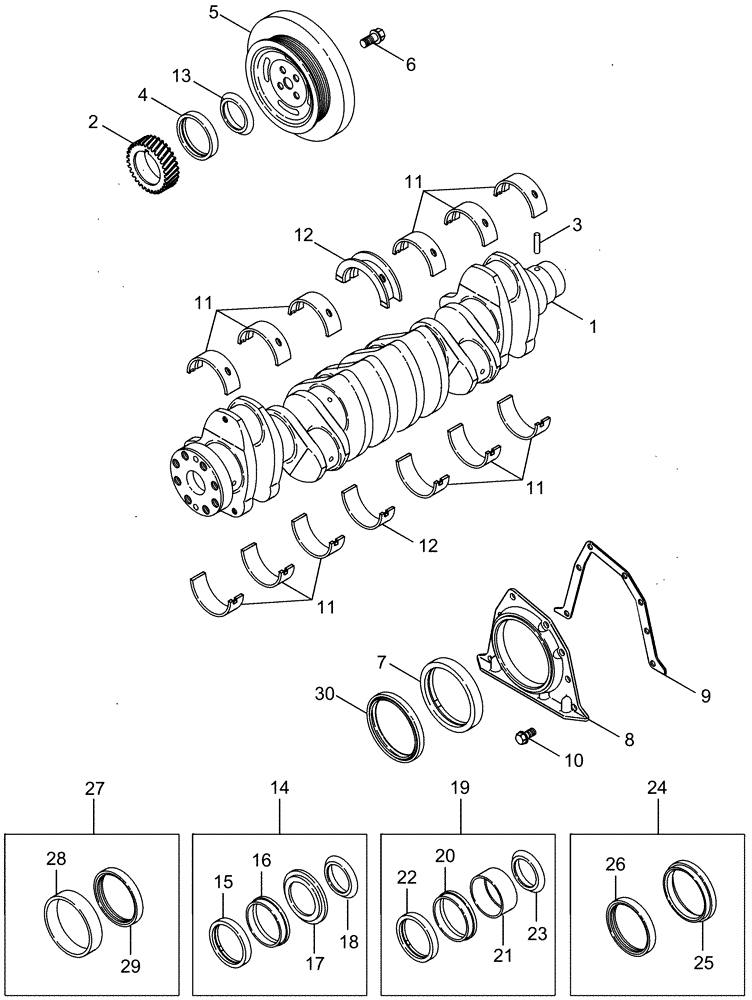

Запчасти Case IH 2388 (02-27) - CRANKSHAFT (01) - ENGINE

JR918986

REMAN-CRANKSHAFT

Remanufactured, Order J918986

1шт.

JC918986

CORE-CRANKSHAFT

1шт.

1

J918986

CRANKSHAFT

Inc. 2, 3

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790, REF 14

1шт.

5

J925570

DAMPER

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486, REF 24

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10,9

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Undersize 0.25 mm

6шт.

11

J945932

BEARING SET

Main, Undersize 0.50 mm

6шт.

11

J945933

BEARING SET

Main, Undersize 0.75 mm

6шт.

11

J945934

BEARING SET

Main, Undersize 1.00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Undersize 0.25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Undersize 0.50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Undersize 0.75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Undersize 1.00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize 0.25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize 0.50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Undersize 0.50 mm, Oversize 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790, REF 14

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Inc. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Inc. 24A, 25, 26

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, (Not Shown)

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

30

87423334

SEAL,129.5mm ID x 148.45mm OD x 6.5mm Thk

Dust

1шт.
