Запчасти Case IH 2388 (02-25) - OIL FILTER AND COOLER (01) - ENGINE

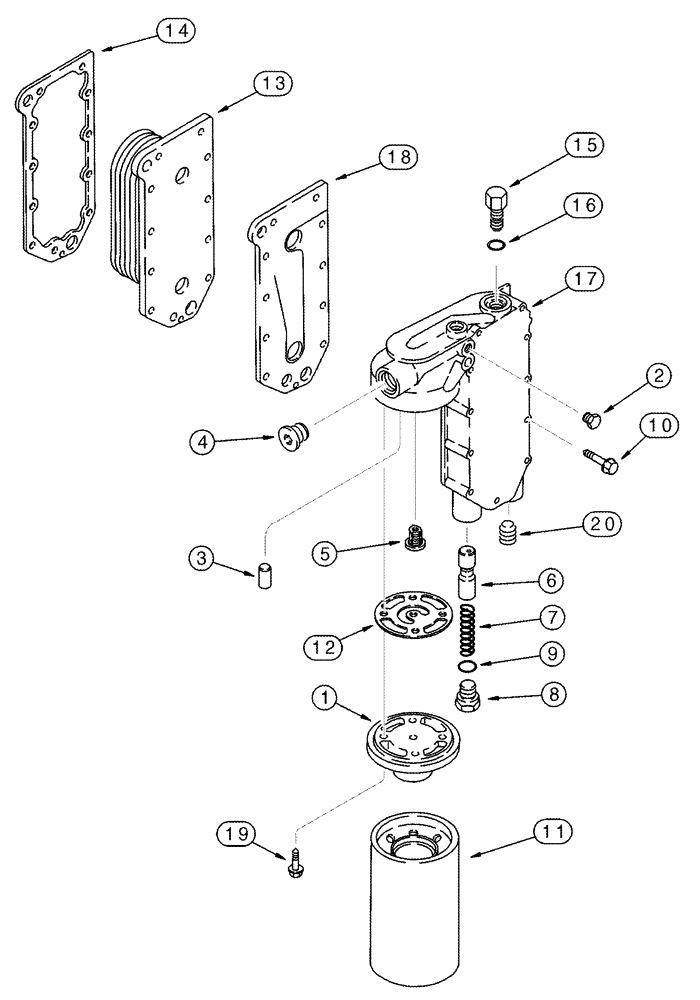

Схема запчастей Case IH 2388 - (02-25) - OIL FILTER AND COOLER (01) - ENGINE
13
11
12
1
9
10
17
3
5
18
16
15
4
20
6
8
19
14
7
2

Артикул

Название

Примечание

Количество

J934159

COVER

Head Assy., Inc. 1, 3, 5, 12, 17, 19

1шт.

1

J918334

FILTER HEAD

1шт.

2

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

5

J936365

VALVE PRESSURE RELIE

1шт.

6

J945967

PLUNGER

1шт.

7

A77541

SPRING

1шт.

8

J931084

PLUG

24 mm, Inc. 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

3/4 ID x 1/16

1шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65; 10.9

9-11шт.

10

87409553

BOLT

With Stud, M8

2шт.

11

J919562

ENGINE OIL FILTER

1шт.

12

J921605

GASKET

1шт.

13

J918175

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

15

J934410

BY-PASS VALVE

Inc. 16

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

J931077

COVER

1шт.

18

J4063496

GASKET,0.8mm Thk

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

Выбрано товаров: 22
