Запчасти Case IH 2388 (02-21) - CYLINDER HEAD, COVER AND BREATHER (01) - ENGINE

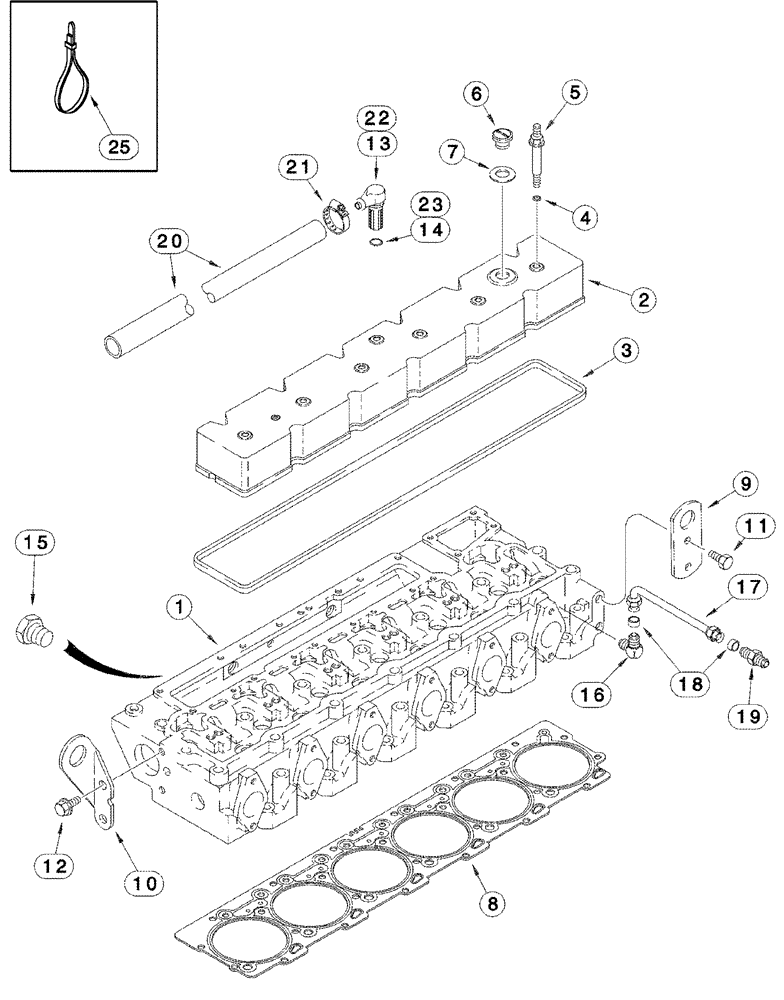

Схема запчастей Case IH 2388 - (02-21) - CYLINDER HEAD, COVER AND BREATHER (01) - ENGINE
16
12
2
6
8
7
4
9
22
3
25
1
23
13
11
5
18
19
10
14
17
15
21
20

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD Assy

1шт.

See Figure 02-30

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

6шт.

6

J902468

FILLER CAP,Male

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

Standard

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25 mm

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

0.50 mm

1шт.

9

J907861

LIFTING EYE

Lift, Front

1шт.

10

J906440

LIFTING EYE

Lift, Rear

1шт.

11

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

15

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

16

87026320

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

17

J924589

TUBE,6.35 mm OD x 112.6 mm L

Inc. 18

1шт.

18

222-153

SLEEVE,1/4" Tube

2шт.

19

87026319

HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut

1шт.

20

1541750C1

HOSE

Crankcase Breather, 3760 mm (148-1/8 in), Cut From 364360C2

1шт.

21

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

22

J935113

ELBOW

1шт.

23

J936331

SEAL,17.7mm ID x 22.74mm OD x 3.5mm Thk

17.4 mm ID x 4.3 mm

1шт.

24

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

25

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

Выбрано товаров: 25
