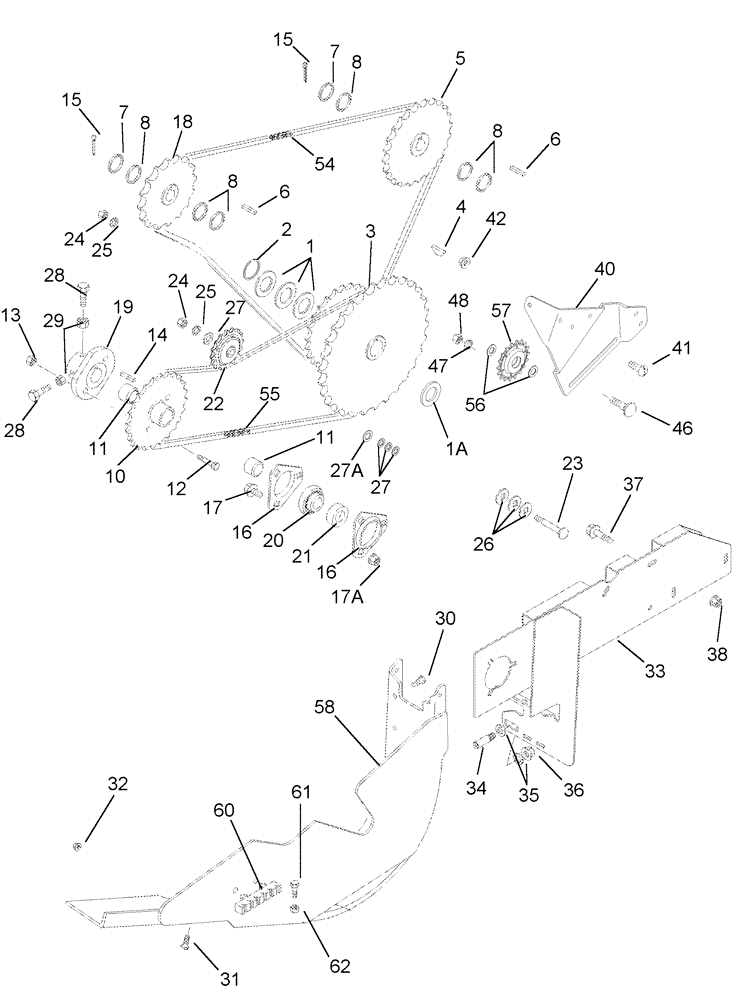

Запчасти Case IH 2388 (09E-08) - UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

1

1327731C1

THRUST WASHER

1-13/32 x 2-1/4 x 1/8

1шт.

1a

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1-13/32 x 2-1/4 x 1/8

1шт.

2

A21619

CIRCLIP

1шт.

3

87525821

SPROCKET

43T/25T

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

87525828

SPROCKET

28T

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

8

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1шт.

10

87525825

SPROCKET

Drive, Inc. 11

1шт.

11

1347384C1

BEARING,31.77mm ID x 19.05mm L

1шт.

12

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

5/16 x 1-1/4

2шт.

13

231-1445

NUT,5/16"-18, GB

4шт.

14

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

16

86620026

FLANGED BEARING

2шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

17a

231-5146

FLANGE NUT,3/8"-16

3шт.

18

87525831

SPROCKET

33T, Driven

1шт.

19

1347399C1

HUB

1шт.

20

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

1шт.

21

87431214

COLLAR,31.8mm ID x 53.98mm OD x 17.5mm W

1шт.

22

86627870

DRIVEN SPROCKET,15T

Idler, 15 Tooth #60

1шт.

23

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

26

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

3шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

3шт.

27a

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

28

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

3шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

33

87529284

SUPPORT ASSY.

Outer

1шт.

34

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

1шт.

35

495-21050

WASHER,7/16"

2шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

40

87529286

SUPPORT ASSY.

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

5шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

46

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

48

425-108

NUT,1/2" - 13, Gr 5

1шт.

54

87529598

CHAIN (AG),#50, 124 Links x 15.88mm = 1968.5mm

#50

1шт.

55

87529597

CHAIN (AG),#60, 107 Links x 19.05mm = 2057.4mm

#60

1шт.

56

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

57

87302107

SPROCKET

Idler #50

1шт.

58

140181A3

SHIELD

1шт.

60

3102155R1

HOLDER

1шт.

61

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

5/16 x 1-1/4

6шт.

62

231-1445

NUT,5/16"-18, GB

6шт.
