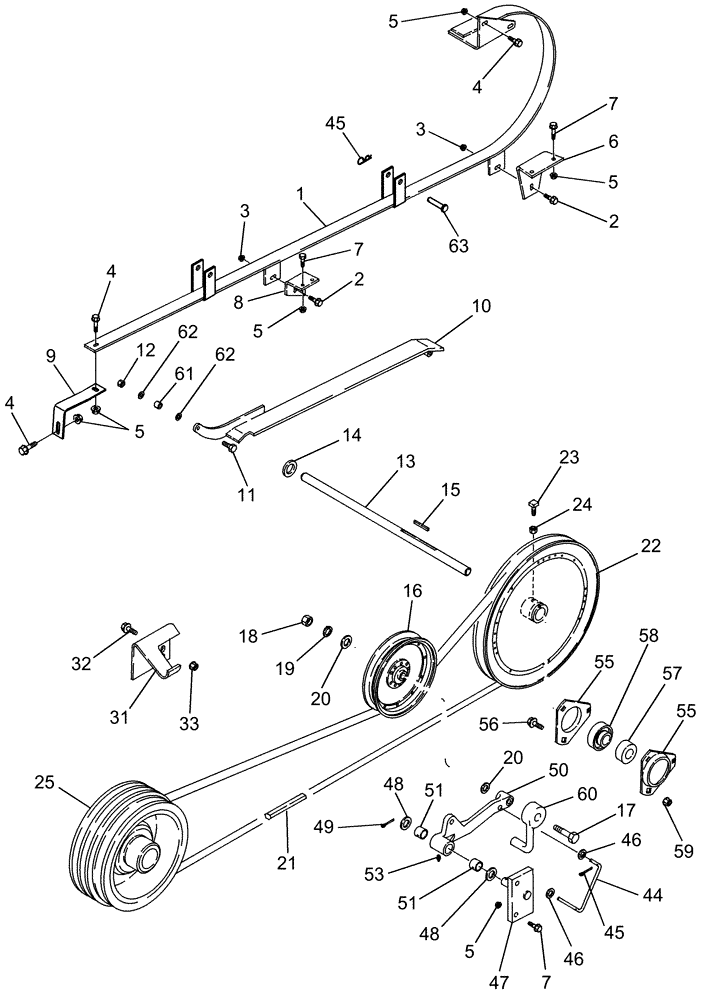

Запчасти Case IH 2388 (09E-07) - UNLOADER, BELT DRIVE (17) - GRAIN TANK & UNLOADER

1

87318425

GUIDE

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

192870C2

SUPPORT

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

8

126540A1

SUPPORT

Center

1шт.

9

87421474

SUPPORT

Upper

1шт.

10

87574298

SUPPORT ASSY.

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

13

1347352C1

SHAFT

1шт.

14

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1шт.

15

586879R1

KEY

5/16 x 2

1шт.

16

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

Drive

1шт.

17

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.

19

492-11062

BEARING WASHER,5/8"

1шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

21

1989217C1

V-BELT,22.327 mm W x 3712.09 mm L

1шт.

22

1994762C2

PULLEY

Driven, Serial Range: -HAJ304985

1шт.

22

1994762C3

PULLEY

Driven, Start Serial: HAJ304985

1шт.

23

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

, Serial Range: -HAJ304985

2шт.

23

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

, Start Serial: HAJ304985

3шт.

24

425-145

JAM NUT,Jam, 5/16"-18, G5

, Serial Range: -HAJ304985

2шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

, Start Serial: HAJ304985

3шт.

25

122948A1

PULLEY

Drive, Auxiliary Pump

1шт.

See Figure 08-08, REF 14

1шт.

31

443919A2

SUPPORT

Upper, Belt Trap

1шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

44

87574299

ROD

1шт.

45

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

46

495-11034

WASHER,5/16", SAE

4шт.

47

1324456C1

SUPPORT

Arm

1шт.

48

495-81039

WASHER,25/32" x 1 1/4" x .120"

2шт.

49

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

50

112008A1

ARM

Inc. 51

1шт.

51

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

3/4 ID x 7/8 OD x 3/4

2шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

55

86620026

FLANGED BEARING

4шт.

56

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

57

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

2шт.

58

87431214

COLLAR,31.8mm ID x 53.98mm OD x 17.5mm W

2шт.

59

231-5146

FLANGE NUT,3/8"-16

6шт.

60

194894C1

ROD

1шт.

61

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

62

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

63

439-1548

HEADED PIN,7.92mm OD x 76.2mm L

2шт.
