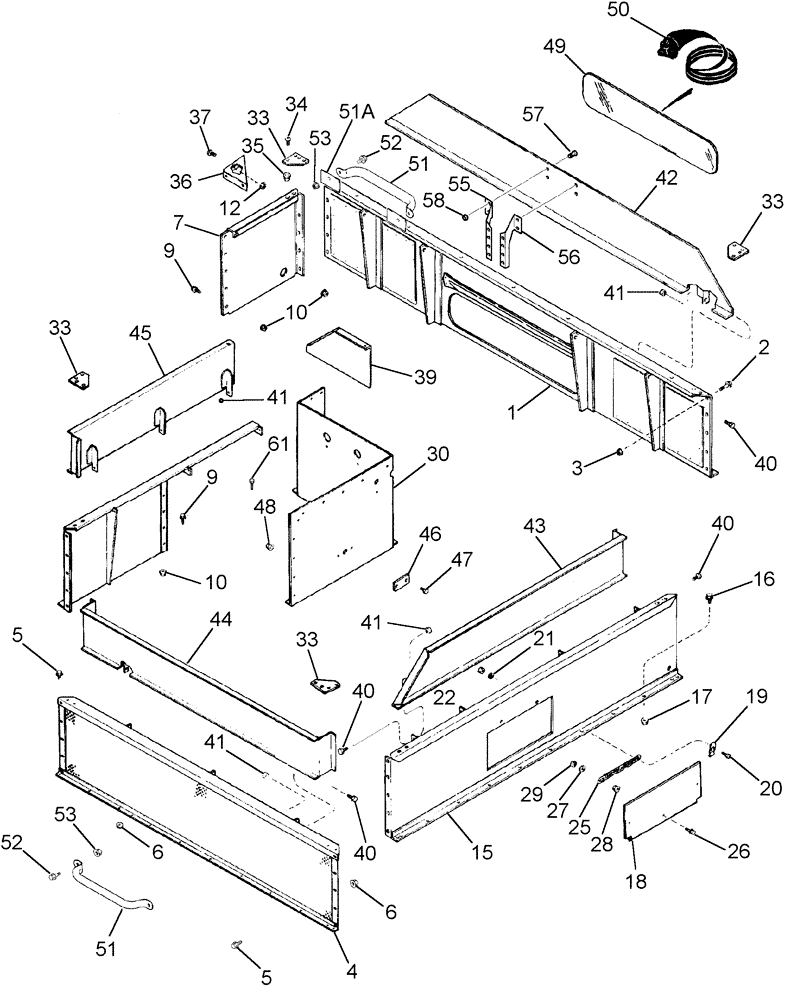

Запчасти Case IH 2388 (09E-04) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

189452A2

EXTENSION

Front, Inc. Decal

1шт.

See Figure 09H-23, REF 7

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

25шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

25шт.

4

442743A3

EXTENSION

Rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

26шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

26шт.

7

1321775C3

EXTENSION

Left Hand Front

1шт.

8

1321771C1

EXTENSION

Left Hand Rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

29шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

15

1327640C2

RISER

Right Hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

1327644C2

PLATE

1шт.

19

167800C1

CLIP

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

21

492-11010

LOCK WASHER,#10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

2шт.

30

1317635C2

SHEET

Left Hand

1шт.

33

1321757C1

PLATE

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

36

1327510C1

SUPPORT

1шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

39

87551551

EXTENSION

Left Hand Front

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13шт.

41

231-1445

NUT,5/16"-18, GB

16шт.

42

87551543

EXTENSION

Upper Front

1шт.

43

87551545

EXTENSION

Right Hand

1шт.

44

87551547

EXTENSION

Rear

1шт.

45

87551549

EXTENSION

Left Hand Rear

1шт.

46

1317645C2

PLATE

1шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

49

184957A1

GLASS

1шт.

50

188214A1

SEAL, GLASS

1шт.

51

256952A2

HANDRAIL

1-2шт.

51a

275731A1

PLATE

2-4шт.

52

279182A3

BOLT

3/8 x 1

2-4шт.

53

231-5346

FLANGE NUT,Flg, 3/8"-16

2-4шт.

54

198820C1

GROMMET

(Not Shown)

1шт.

55

241682A1

SUPPORT

Left Hand

1шт.

56

241683A1

SUPPORT

Right Hand

1шт.

57

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

58

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

59

258728A1

SEALING STRIP

(Not Shown)

3шт.

61

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

62

444672A2

SUPPORT

Rotor Service Cover

1шт.
