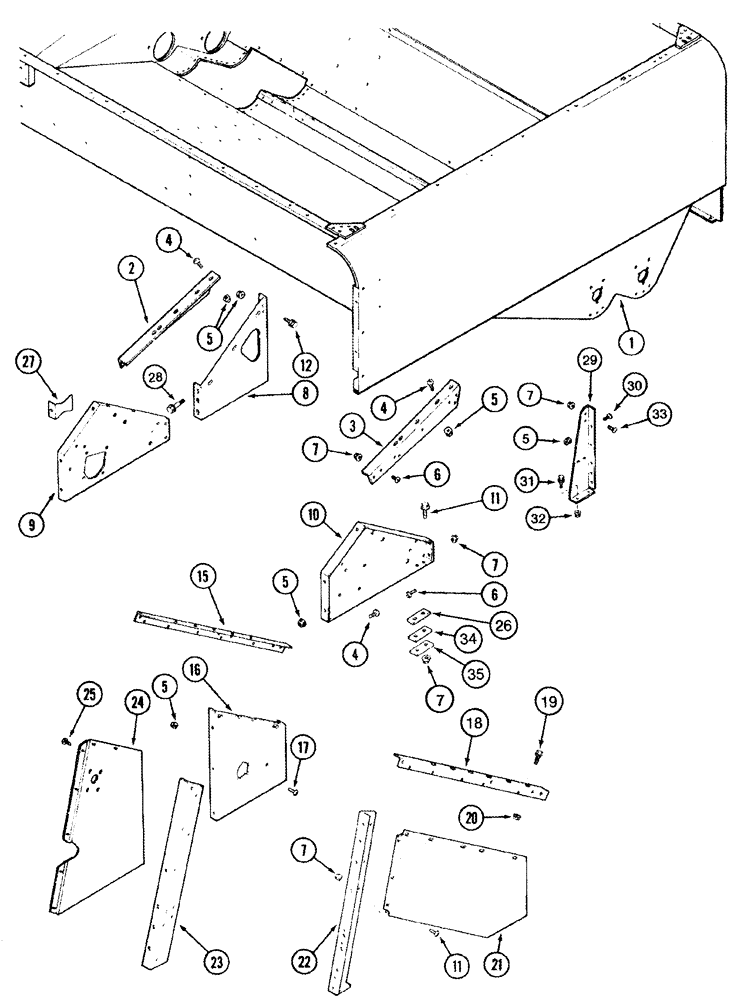

Запчасти Case IH 2388 (09E-03) - GRAIN TANK - SUPPORTS, LOWER (17) - GRAIN TANK & UNLOADER

1

87371346

TANK

Assy, Grain

1шт.

See Figure 09E-01

1шт.

2

192768C3

SUPPORT

Diagonal Left Hand

1шт.

3

192769C3

SUPPORT

Diagonal Right Hand

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

4

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

3шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

176194A4

SUPPORT

Left Hand Front

1шт.

9

192771C3

SUPPORT

Center Left Hand

1шт.

10

192772C3

SUPPORT

Center Right Hand

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

17шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

15

193469C1

SUPPORT

Left Hand Rear, Bottom

1шт.

16

1347380C2

SUPPORT

Left Hand Rear

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

18

193470C1

SUPPORT

Right Hand Rear, Bottom

1шт.

19

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

21

193465C2

COVER

Right Hand Rear

1шт.

22

181394C2

SUPPORT

Vertical, Right Hand Rear

1шт.

23

193462C4

SUPPORT

Vertical, Left Hand Rear

1шт.

24

193464C3

SUPPORT

Left Hand Rear

1шт.

25

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16 x 13/16

32шт.

26

1302549C2

PLATE

Left Hand Front

1шт.

27

193531C1

SUPPORT

4шт.

28

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

2шт.

29

193430C4

SUPPORT

Right Hand Front

1шт.

30

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5шт.

31

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

6шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

7шт.

34

302454A1

PLATE

Front Middle

1шт.

35

302455A1

PLATE

Front Top

1шт.

36

1301560C2

STIFFENER

Under Rear Tank Wall, (Not Shown)

1шт.
