Запчасти Case IH 2388 (09D-09) - INCLINED DELIVERY - AUGER (16) - GRAIN ELEVATORS & AUGERS

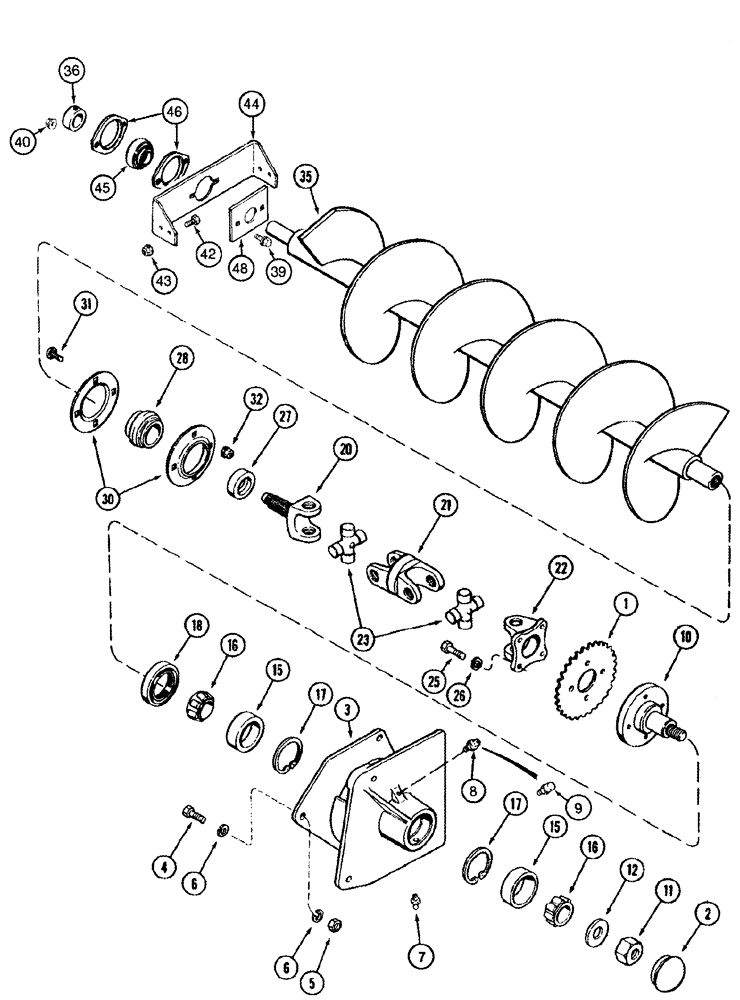

Схема запчастей Case IH 2388 - (09D-09) - INCLINED DELIVERY - AUGER (16) - GRAIN ELEVATORS & AUGERS
22
6
7
39
17
5
10
27
31
12
21
8
6
43
2
16
40
15
28
35
17
32
25
18
16
23
26
9
44
4
45
36
42
48
11
1
30
20
15
3
46

Артикул

Название

Примечание

Количество

1

1321039C1

SPROCKET

29T, Driven

1шт.

2

453771R1

PLUG

1шт.

3

1321020C1

HOUSING

1шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

9

219-430

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

1шт.

10

1321021C1

SHAFT

1шт.

11

185413C1

LOCK NUT

7/8

1шт.

12

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

29/32 x 2-3/64 x 1-1/64

1шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

2шт.

16

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 inch ID

2шт.

17

100-21256

SNAP RING,2.562", Int, #256

2шт.

18

380200R92

OIL SEAL

1шт.

1321055C91

UNIVERSAL JOINT

Inc. 20 - 23

1шт.

20

87302539

YOKE

Shaft

1шт.

21

1321057C1

JOINT

Center

1шт.

22

1321058C1

YOKE

Flange

1шт.

23

1321059C91

U-JOINT SPIDER

Journal and Bearing

2шт.

25

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

4шт.

26

492-11044

LOCK WASHER,7/16"

4шт.

27

87431215

COLLAR

1шт.

28

611583R91

BALL BEARING

1шт.

30

87430518

FLANGE

2шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

35

87347842

AUGER

Chrome

1шт.

36

87431214

COLLAR,31.8mm ID x 53.98mm OD x 17.5mm W

1шт.

39

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

42

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

44

297992A1

SUPPORT

1шт.

45

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

1шт.

46

50591

FLANGE,52mm

2шт.

48

297931A1

GUARD

Extended Wear

1шт.

Выбрано товаров: 38
