Запчасти Case IH 2388 (09D-08) - AUGER ASSEMBLY - TAILINGS DELIVERY (16) - GRAIN ELEVATORS & AUGERS

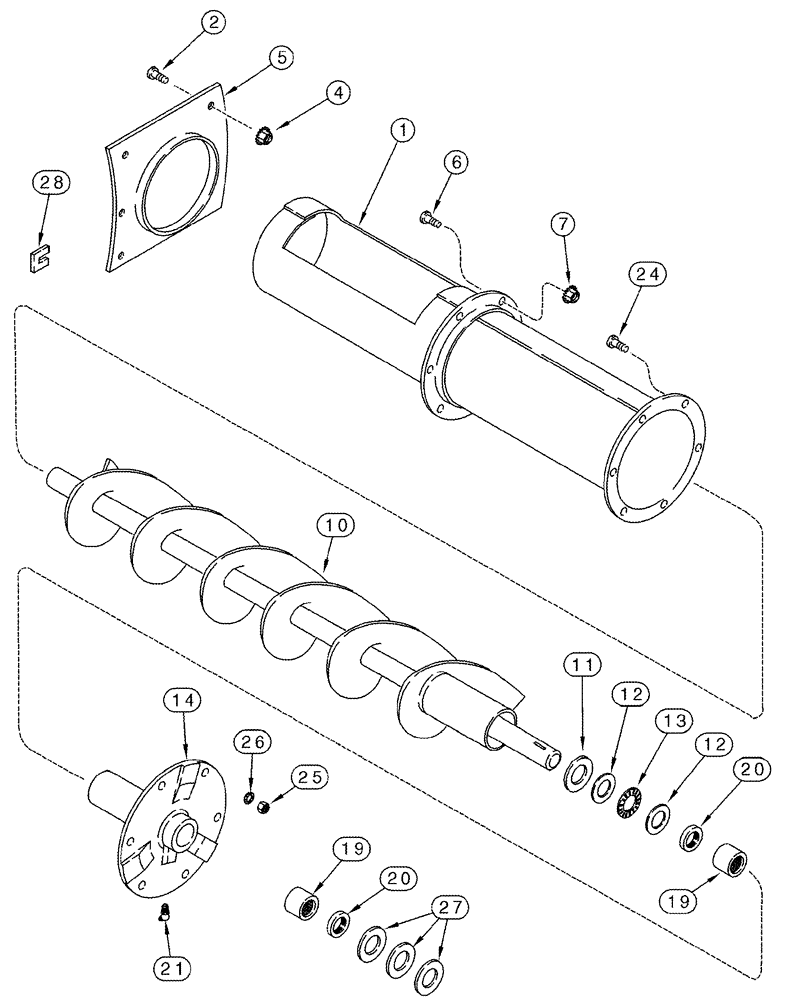

Схема запчастей Case IH 2388 - (09D-08) - AUGER ASSEMBLY - TAILINGS DELIVERY (16) - GRAIN ELEVATORS & AUGERS
24
20
25
1
14
10
7
20
11
6
4
2
5
12
12
28
26
27
19
13
19
21

Артикул

Название

Примечание

Количество

1

191854C1

TUBE,356.9 mm Length

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

5

186700C1

COVER

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

10

192563C1

AUGER

1шт.

11

495-11106

WASHER,1", SAE

1шт.

12

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

14

1324840C1

BEARING HOUSING,36.525 mm ID x 50 mm OD x 43, 160 mm

1шт.

19

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

2шт.

20

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

2шт.

21

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

25

425-105

NUT,5/16"-18, G5

5шт.

26

492-11031

LOCK WASHER,5/16"

5шт.

27

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

7шт.

28

151670C1

SHIM

0.036 in

4шт.

Выбрано товаров: 19
