Запчасти Case IH 2388 (09D-03) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS

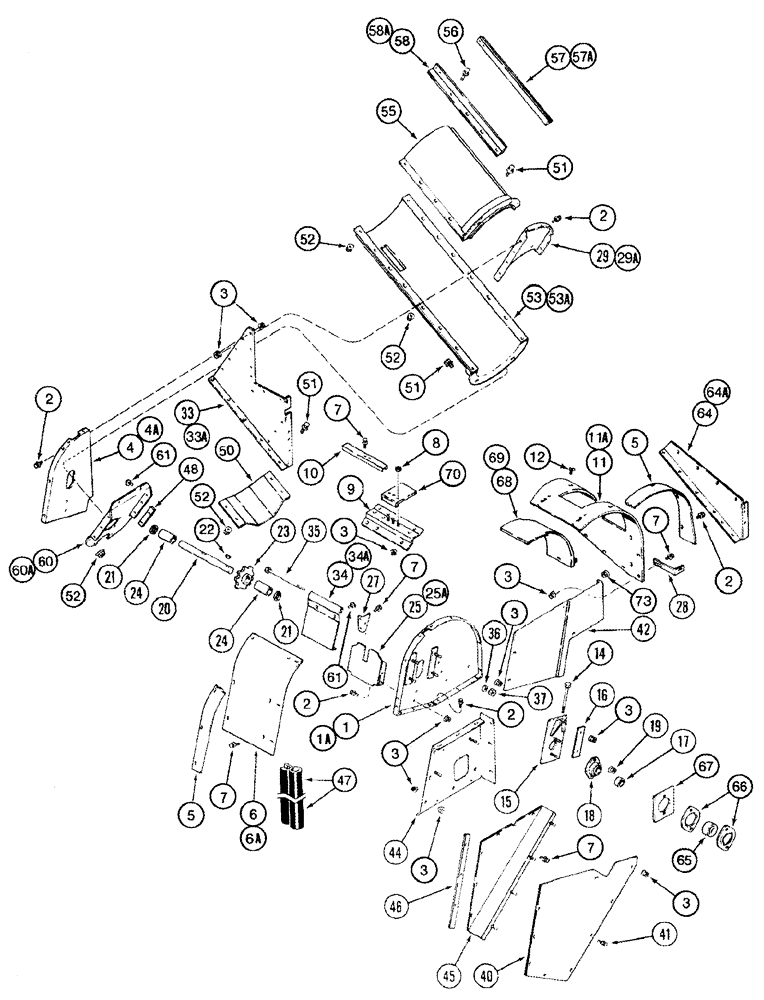

Схема запчастей Case IH 2388 - (09D-03) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS
40
1
7
65
36
33
2
60
69
12
21
9
7
16
5
7
52
11a
3
19
64
57a
58a
3
18
27
68
53a
44
3
58
34a
24
11
60a
3
73
3
17
29a
3
51
42
24
45
8
4
23
52
1a
52
64a
3
2
2
2
7
14
48
10
61
5
6
34
35
56
46
15
52
66
21
47
57
28
41
25a
61
6a
37
7
2
51
53
70
29
50
51
33a
55
67
20
22
4a
3
25

Артикул

Название

Примечание

Количество

1

1319908C1

SIDE PLATE

Right Hand, Serial Range: -HAJ303001

1шт.

1

87675650

SIDE PLATE

Right Hand, Start Serial: HAJ303001

1шт.

1a

251458A1

SIDE PLATE

Right Hand, Extended Wear

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

1319901C1

SIDE PLATE

Left Hand, Serial Range: -HAJ303001

1шт.

4

87675649

SIDE PLATE

Left Hand, Start Serial: HAJ303001

1шт.

4a

282600A1

SIDE PLATE

Left Hand, Extended Wear

1шт.

5

87301284

PLATE

Head Sealing

1шт.

6

1319940C1

COVER

Rear

1шт.

6a

251459A1

COVER

Rear, Extended Wear

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

8

231-4116

NUT,3/8"-16, GB

3шт.

9

198581A2

STIFFENER

Anchor Assy

1шт.

10

1317474C2

CHANNEL

1шт.

11

198602A1

COVER

Front

1шт.

Without Yield Monitor

1шт.

Without Advanced Farming System

1шт.

11

238646A1

COVER

Front

1шт.

With Advanced Farming System

1шт.

With Yield Monitor

1шт.

11a

251464A1

COVER

Front, Extended Wear

1шт.

With Advanced Farming System

1шт.

With Yield Monitor

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

1/2 x 5-1/2

2шт.

15

1317251C3

SUPPORT

2шт.

16

1310040C1

BAR

4шт.

17

87431216

COLLAR,31.77mm ID x 44.45mm OD x 15.9mm W

With Set Screw

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

If Used, Optional With 65 - 67

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

87515819

SHAFT

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

4шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

23

1317192C1

SPROCKET

Drive, 9T

1шт.

24

1317471C1

SPACER

2шт.

25

1318476C1

PLATE

1шт.

25a

251468A1

COVER

Extended Wear

1шт.

27

1321553C1

BRACKET

1шт.

28

1321833C1

STRAP

1шт.

29

121370A1

PLATE

Left Hand Front, Inc. Decal 1319494C1

1шт.

See Figure 09H-19, REF 7

1шт.

29a

334204A1

PLATE

Left Hand Front, Extended Wear, Inc. Decal 144383A1

1шт.

See Figure 09H-19, REF 7

1шт.

33

1321550C2

SUPPORT

Rear

1шт.

33a

298841A1

SHEET

Rear, Extended Wear

1шт.

34

1319954C1

BRACKET

1шт.

34a

251470A1

BRACKET

Extended Wear

1шт.

35

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

40

1321095C1

PANEL

Right Hand

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

42

1321097C2

COVER

1шт.

44

1321060C1

SUPPORT

1шт.

45

1321497C1

PANEL

Left Hand

1шт.

46

1321155C1

SPACER

1шт.

47

1321263C1

RUBBER SEAL,1137mm L

2шт.

48

1321554C1

PLATE

1шт.

50

1321556C1

COVER

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

53

199006A2

TUBE,887 mm Length

Lower

1шт.

53

1321557C2

TUBE,887 mm Length

Trough Without Sensor Hole

1шт.

53a

251472A1

GUARD

Lower, Extended Wear

1шт.

55

1321560C3

TUBE

Upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

56

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

4шт.

57

1321568C3

ANGLE

Front

1шт.

57a

297934A1

SUPPORT

Front, Extended Wear

1шт.

58

1321569C3

ANGLE

Rear

1шт.

58a

297936A1

SUPPORT

Rear, Extended Wear

1шт.

60

1979134C1

SUPPORT

1шт.

60a

249274A1

SUPPORT

Extended Wear

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

, Serial Range: -HAJ303001

4шт.

61

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

, Start Serial: HAJ303001

4шт.

64

1321552C2

SUPPORT

Front

1шт.

64a

253270A1

GUARD

Front, Extended Wear

1шт.

65

156010C92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

If Used, Optional With REF 18

2шт.

66

87106572

FLANGE

Used With REF 65, 67

4шт.

67

1979642C1

SPACER

Used With REF 65, 66

2шт.

68

229609A2

COWL

Front, Corn And Grain

1шт.

69

325494A1

HOOD

Extended Wear

1шт.

70

197877A2

SUPPORT

Front

1шт.

71

353-147

PLUG

Sleeve, (Not Shown)

1шт.

72

410009A1

SPRING NUT

Self-Retaining

6шт.

Выбрано товаров: 86
