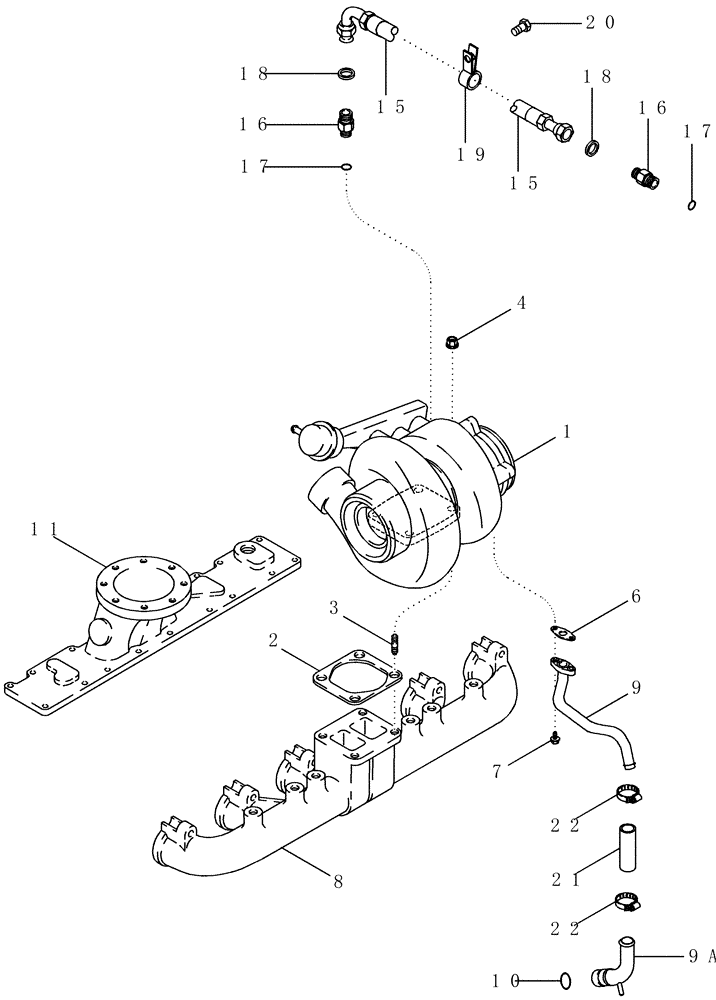

Запчасти Case IH 2388 (02-16) - TURBOCHARGER SYSTEM (01) - ENGINE

1

87561561

REPAIR KIT

Turbocharger, Inc. 2, 6

1шт.

See Figure 02-17

1шт.

2

J901356

GASKET,0.5mm Thk

Turbo Mount

1шт.

3

J818823

STUD

M10 x 1.5

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

87405601

MANIFOLD

Exhaust

1шт.

9

87559981

TUBE,22.22 mm OD x 266.4 mm L

Turbo Drain at Turbo

1шт.

9a

J931973

TUBE,0.875" OD

Turbo Drain

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

J926044

COVER

Intake

1шт.

15

87345099

FLEXIBLE HOSE,9.53mm ID x 385mm L, SAE 100R14

533 mm (21 in)

1шт.

16

J922789

HYD CONNECTOR

Male, Inc. 17

2шт.

17

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

18

313262A1

O-RING,0.07" Thk x 0.364" ID

2шт.

19

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1шт.

20

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

21

J286499

HOSE

76 mm (3 in), Turbo Drain Tube

1шт.

22

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.
