Запчасти Case IH 2388 (09C-10) - SHIELDS, INLET AND SEPARATOR - LEFT HAND (15) - BEATER & CLEANING FANS

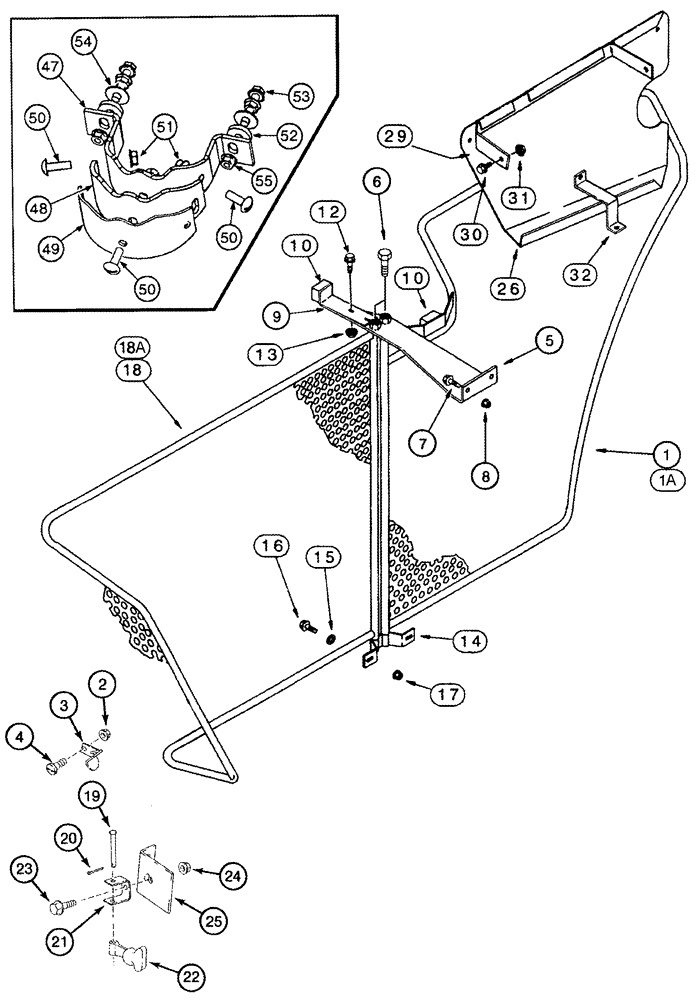

Схема запчастей Case IH 2388 - (09C-10) - SHIELDS, INLET AND SEPARATOR - LEFT HAND (15) - BEATER & CLEANING FANS
53
8
47
25
49
23
15
13
19
52
17
3
1a
18a
14
29
1
4
21
10
30
20
48
55
50
54
5
12
51
9
18
24
16
2
32
50
22
50
26
6
10
7
31

Артикул

Название

Примечание

Количество

1

189353A2

GUARD

LH Front, Incl. 1A and Decal 181595A1

1шт.

See Figure 09H-19, REF 2

1шт.

1a

240826A2

SHIELD

LH

1шт.

2

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

3

L105124

LATCH HOOK

2шт.

4

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

5

142424A1

SUPPORT

Upper

1шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

142427A3

SUPPORT

Upper

1шт.

10

187885C1

SEALING STRIP

660 mm (26 in), Cut From 87281C1, Lower

2шт.

10

187884C1

SEALING STRIP,50mm L

51 mm (2 in), Cut From 187885C1

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

142430A2

SUPPORT

1шт.

15

495-11066

WASHER,5/8", SAE

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

404920A1

SHIELD

Rear, Incl. 18A and Decal 181595A1

1шт.

See Figure 09H-19, REF 2

1шт.

18a

392028A2

SHIELD

Rear, LH

1шт.

19

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

1шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

21

188103C2

BRACKET

1шт.

22

494307C1

LATCH

1шт.

23

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

25

229268A2

BRACKET

1шт.

26

243165A1

GUARD

Unloader Drive, Inc. Decal 181475A1

1шт.

Use with 243170A1, REF 32

1шт.

See Figure 09H-19, REF 11

1шт.

29

185524A2

SUPPORT

Unloader Drive Shield

1шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

243170A1

SUPPORT

1шт.

Use with 610784R1, REF 34

1шт.

34

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

(Not Shown)

1шт.

Use with 243170A1, REF 32

1шт.

47

241070A2

SUPPORT

1шт.

48

246444A2

INDEX

1шт.

49

251517A1

SUPPORT

1шт.

50

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

3шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

52

251987A1

RUBBER WASHER

2шт.

53

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

2шт.

54

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

55

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

56

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX, (Not Shown)

2шт.
