Запчасти Case IH 2388 (09C-06) - CLEANING FAN - DRIVE (15) - BEATER & CLEANING FANS

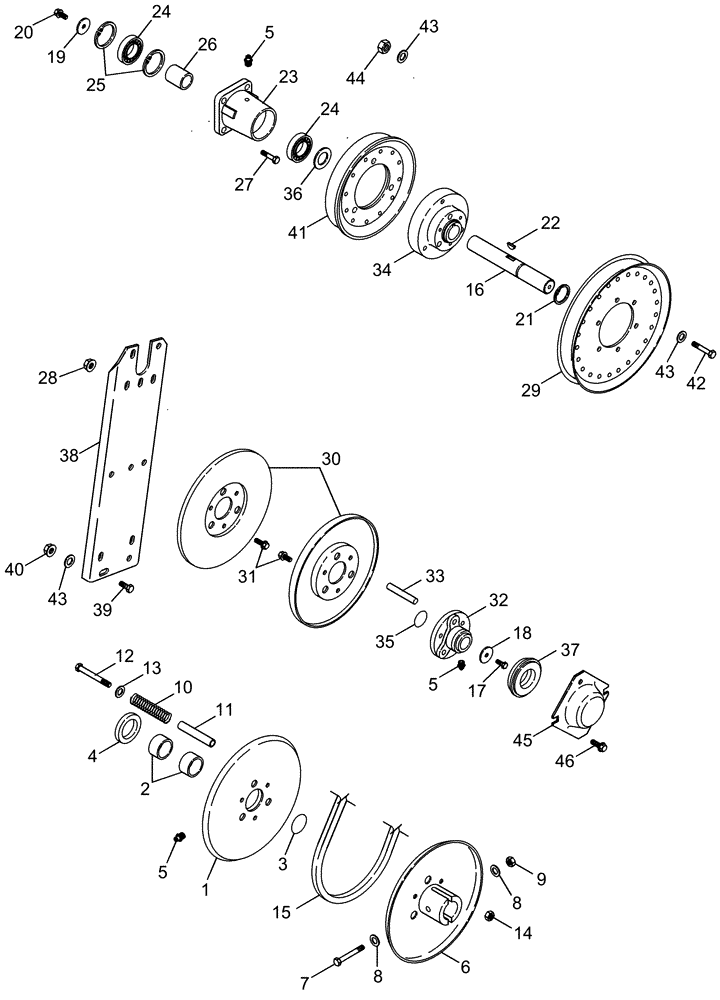

Схема запчастей Case IH 2388 - (09C-06) - CLEANING FAN - DRIVE (15) - BEATER & CLEANING FANS
46
18
4
3
11
39
27
20
31
15
38
44
35
7
36
43
29
41
24
6
26
42
22
16
13
30
25
34
43
28
40
12
21
1
32
33
9
8
5
8
23
19
14
5
10
43
24
5
2
45
37
17

Артикул

Название

Примечание

Количество

1541552C2

PULLEY

11-1/4 OD, Inc. 2 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Pulley

1шт.

2

1541551C1

BUSHING,44.32mm ID x 48.97mm OD x 30.2mm L

2шт.

3

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

4

1541775C1

SEAL

1-47/64 ID x 2-21/64

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

6

87522943

PULLEY,285mm OD

11-1/4 OD

1шт.

7

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

8

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

2шт.

9

232-4118

NUT,1/2"-13, GC

1шт.

10

1302181C2

SPRING

3шт.

11

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

3шт.

12

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

13

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

3шт.

14

231-4115

NUT,5/16"-18, GB

3шт.

15

301146A1

V-BELT,31.80 mm W x 1847.25 mm L

1шт.

16

194853C3

SHAFT

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

18

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

19

195-81030

WASHER

17/32 x 1-1/2 x 3/16

1шт.

20

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 x 1

1шт.

21

100-16125

SNAP RING,#125, Ext

1шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

23

192418C1

HUB

1шт.

24

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

2шт.

25

360936R1

RING

2шт.

26

152926C1

SPACER

2 x 1-5/8 x 1-7/8

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

28

231-5146

FLANGE NUT,3/8"-16

3шт.

29

295918A1

PULLEY,355.6mm OD

1шт.

30

301141A1

PULLEY

12 OD

2шт.

31

115745A1

FLANGE BOLT

6шт.

32

185286C91

HUB

Inc. 33

1шт.

33

37-1856

DOWEL,1/2" x 3 1/2"

3шт.

34

183333C1

HUB

1шт.

35

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

36

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

1-9/32 x 1-7/8 x 3/16

1шт.

37

168215C92

BALL BEARING,50.8mm ID x 92.84mm OD x 20.5mm W

1шт.

38

189967A1

SUPPORT

Inc. Decal 144385A1

1шт.

See Figure 09H-19, REF 9

1шт.

39

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

40

231-5146

FLANGE NUT,3/8"-16

6шт.

41

193948C1

PULLEY,39.61mm W x 254mm OD

9-3/4 in OD

1шт.

42

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

43

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

9шт.

44

231-4116

NUT,3/8"-16, GB

3шт.

45

86990344

COVER

Fan Drive Bearing

1шт.

46

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

2шт.
