Запчасти Case IH 2388 (09B-24) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE

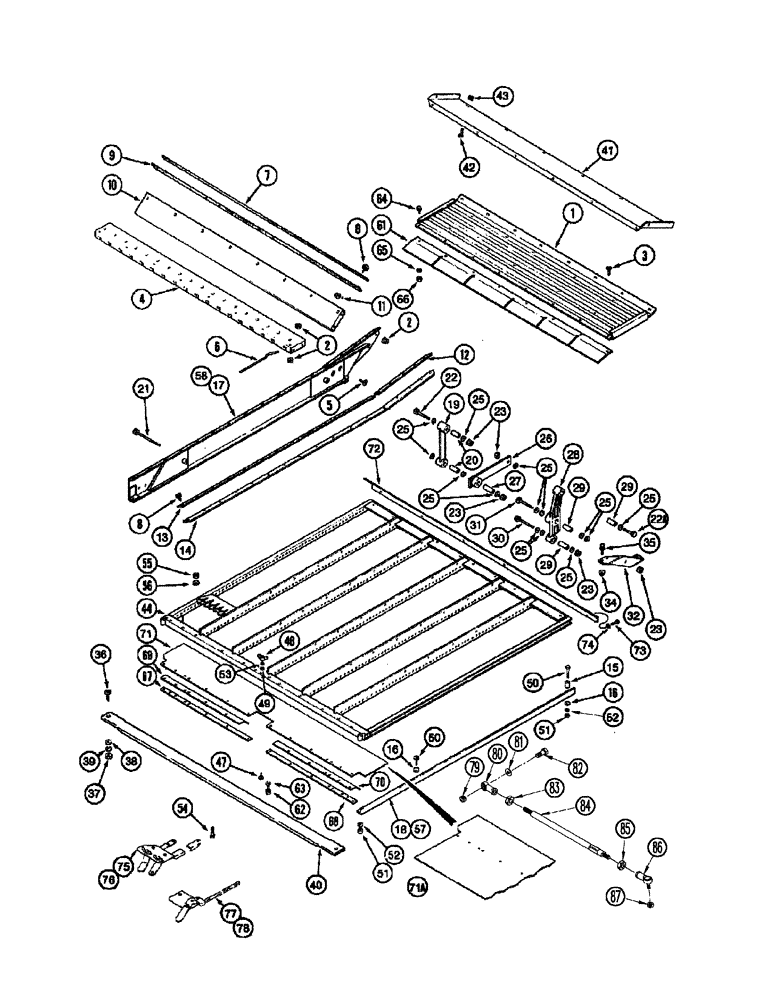

Схема запчастей Case IH 2388 - (09B-24) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE
51
25
7
6
83
50
75
22a
63
12
27
57
23
80
21
78
79
29
31
84
38
10
76
25
70
22
73
49
40
56
67
32
71a
5
37
23
30
34
62
50
71
1
2
14
65
18
52
74
25
68
58
23
61
11
2
13
28
16
69
25
44
72
25
41
26
25
64
42
55
52
36
9
77
81
66
15
16
85
8
20
82
51
3
8
35
29
67
17
48
25
47
39
86
25
53
54
4
23
19
29
43

Артикул

Название

Примечание

Количество

1

1312938C1

GRAIN PAN

GRAINPAN

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

4

1312969C1

SUPPORT

1шт.

5

460-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

Short

27шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

Long

27шт.

7

192050C2

BAR

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

9

192049C1

SEALING STRIP

1шт.

10

192045C1

SUPPORT

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

192052C3

BAR

Short

2шт.

13

1325332C2

BAR

Long

2шт.

14

1325331C1

SEALING STRIP

2шт.

15

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

2шт.

17

1322452C2

RAIL

1шт.

18

1325333C3

SUPPORT

Left Hand

1шт.

19

1957455C1

ARM

Inc. 20, Serial Range: -HAJ303741

2шт.

19

87671724

ARM ASSY.

Inc. 20, Start Serial: HAJ303741

2шт.

20

1330324C1

BUSHING

, Serial Range: -HAJ303741

2шт.

20

87538600

RUBBER BUSHING,16mm ID x 32.6mm OD x 58.9mm L

, Start Serial: HAJ303741

2шт.

21

426-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

2шт.

22

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

22a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

23

232-41110

NUT,5/8"-11, GC

10шт.

23

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

25

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

26шт.

25

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

, Serial Range: -HAJ303512

4шт.

25

495-81056

WASHER,29/32" x 1 1/2" x 3/64

, Start Serial: HAJ303512

2шт.

26

1330357C1

ARM

Inc. 27, Serial Range: -HAJ303741

2шт.

26

87671722

ARM ASSY.

Inc. 27, Start Serial: HAJ303741

2шт.

27

1330324C1

BUSHING

, Serial Range: -HAJ303741

1шт.

27

87538600

RUBBER BUSHING,16mm ID x 32.6mm OD x 58.9mm L

, Start Serial: HAJ303741

1шт.

28

1957460C2

LEVER

Inc. 29, Serial Range: -HAJ303741

2шт.

28

87672100

ARM ASSY.

Inc. 29, Start Serial: HAJ303741

2шт.

29

1330323C2

BUSHING

5/8 x 1-1/2 x 2-57/64, Serial Range: -HAJ303741

3шт.

29

87538599

BUSHING,16mm ID x 38.2mm OD x 73mm L

, Start Serial: HAJ303741

3шт.

30

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

2шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

2шт.

32

1968827C1

SUPPORT

Left Hand

1шт.

33

1968828C1

SUPPORT

Right Hand, (Not Shown)

1шт.

34

231-5146

FLANGE NUT,3/8"-16

8шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

36

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

39

492-11031

LOCK WASHER,5/16"

1шт.

40

1322458C3

SUPPORT

1шт.

41

192065C1

SUPPORT

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

14шт.

42

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

8шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

44

1322673C6

GRAIN SIEVE

1-5/8, Closz Slat Chaffer, Inc 76, 77, 88 - 93

1шт.

44

1322659C6

GRAIN SIEVE

1-5/8, Corn Slat Chaffer, Inc. (1 each) 47, 48, 53, 64, 76, 77, 78C

1шт.

44

1347372C7

GRAIN SIEVE

Petersen Chaffer, Inc. (1 each) 47 - 48A, 53, 64, 75, 78, 78C; (2 each) 48A

1шт.

44

1322467C6

GRAIN SIEVE

1-1/8, Closz Slat, Adjustable Chaffer, Inc. (1 each) 47 - 48A, 53, 64; (2 each) 49, 75, If Used

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1шт.

48

231-4144

NUT,1/4"-20, GB

1шт.

48a

495-11028

WASHER,1/4", SAE

Used with 1322673C6, 1322659C6, 1347372C7

2шт.

49

495-21031

WASHER,1/4"

Used with 1322467C6

2шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

4шт.

52

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

53

492-11025

LOCK WASHER,1/4"

1-3шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

7шт.

54

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

55

232-4115

LOCK NUT,5/16"-18, GC

14шт.

56

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

14шт.

57

1325334C3

SUPPORT

Right Hand

1шт.

58

1322453C2

RAIL

Right Hand

1шт.

61

1994858C1

COVER

1шт.

62

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

2шт.

63

492-11038

LOCK WASHER,3/8"

2шт.

64

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

65

492-11025

LOCK WASHER,1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

8шт.

67

1338345C2

RETAINER

Left Hand

1шт.

68

1338346C1

RETAINER

Right Hand

1шт.

69

1322698C3

ANGLE

Left Hand Rear

1шт.

70

1322699C3

ANGLE

Right Hand Rear

1шт.

71

1979332C4

SEAL,3.05mm Thk

1шт.

With Straw Chopper

1шт.

71a

124004A2

SEAL

1шт.

With Straw and Chaff Spreader

1шт.

72

120001A1

DEFLECTOR

Used With 1347372C7

1шт.

73

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

6шт.

74

495-31022

WASHER,#10

6шт.

75

280367A2

LEVER

Rear, Used With 1322467C6, 1347372C7

1шт.

76

280369A2

LEVER

Rear, Used With 1322659C6, 1322673C6

1шт.

77

280365A2

LEVER

Front, Used With 1322659C6, 1322673C6

1шт.

78

280375A1

LEVER

Front, Used With 1347372C7

1шт.

78c

120667A1

PLATE

Indicator, Double Adjustment Lever, Used With 1322467C6, 1347372ZC7, 1322659C6, 1322673C6 Not Illustrated

1шт.

79

231-4146

NUT,3/8"-16, GB

1шт.

80

427179A1

BALL JOINT HEAD,3/8" - 24

End

1шт.

81

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

82

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

83

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

84

407139A2

ADJUSTMENT ROD

Upper Chaffer Sieve

1шт.

85

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

86

403123A1

BALL JOINT,3/8" - 24

End, Studded

1шт.

87

232-4646

LOCK NUT,3/8"-24, GC

1шт.
