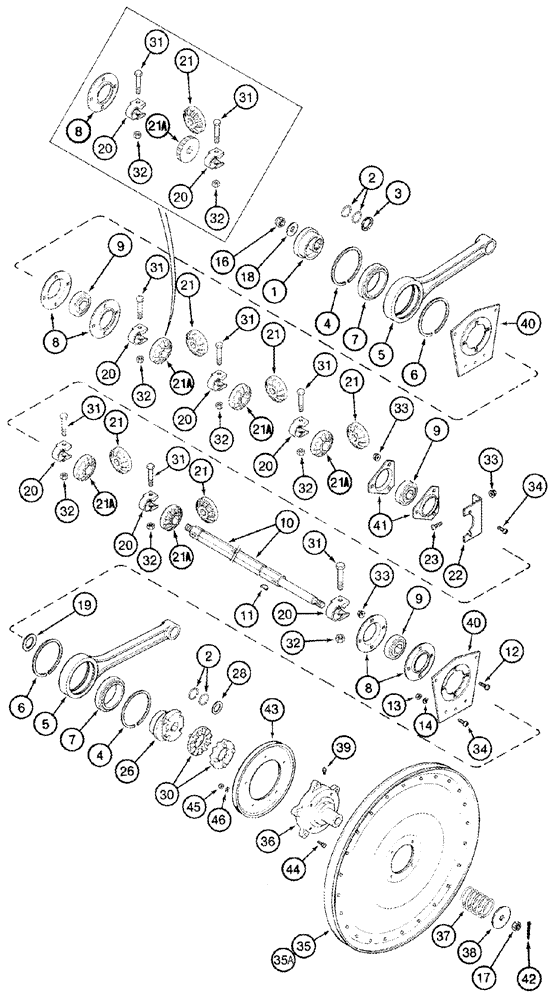

Запчасти Case IH 2388 (09B-21) - DRIVE - SHAKER SHAFT AND AUGER (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
1
1322573C1
CAM
Left Hand
1шт.
2
1322623C1
RETAINER
1-13/64 in
4шт.
3
1330336C1
WASHER,24mm ID x 31.65mm OD x 3mm Thk
29/32 x 1-1/4 x 1/8
1шт.
4
1979190C1
RETAINER
2шт.
5
87582203
ARM ASSY.
Shaker Shaft
2шт.
See Figure 09B-22, REF 24
1шт.
6
1322624C1
SNAP RING
5-1/8
2шт.
7
1345226C1
BALL BEARING,80mm ID x 125mm OD x 22mm W
2шт.
8
87430518
FLANGE
4шт.
9
156816C91
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
3шт.
10
1322616C2
SHAFT
1шт.
11
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
2шт.
13
425-106
NUT,3/8"-16, Cl 5
8шт.
14
492-11038
LOCK WASHER,3/8"
8шт.
16
231-41112
LOCK NUT,3/4"-10, GB
1шт.
18
1979580C1
WASHER,19.05mm ID x 44.5mm OD x 11mm L
1шт.
20
225265R1
CLAMP
6шт.
21
194194C1
GEAR
14T
5шт.
21a
191677C1
GEAR
14T
5шт.
Note: The Left Most Bevel Drive Gear, REF 21A, On the Shaker Shaft Must Be turned 180 Degrees, So That the Gear Teeth are Mounted Facing REF 8 Flange When Using a 1309229C1 Left Hand Rotation Auger. See Inset Illustration Figure(s) 9B-21. See Figure(s) 9B-20
1шт.
22
186589C1
SUPPORT
1шт.
23
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
2шт.
26
1322574C1
CAM
Right Hand
1шт.
28
1979191C1
WASHER,27mm ID x 31.65mm OD x 3mm Thk
1-1/16 x 1-1/4 x 1/8
1шт.
30
B12170
RATCHET,Clutch Slip, 94.49mm
2шт.
31
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
6шт.
32
231-4118
LOCK NUT,1/2"-13, GB
6шт.
33
231-5146
FLANGE NUT,3/8"-16
13шт.
34
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
8шт.
35
359099A1
PULLEY,612.14mm OD
Driven
1шт.
See Figure 09A-02
1шт.
36
1303136C2
HUB
1шт.
37
19302K
SPRING
1шт.
38
388418C1
SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk
1шт.
39
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
40
1302221C1
PLATE
2шт.
42
432-828
COTTER PIN,1/8" x 1 3/4"
1шт.
43
566516R92
PULLEY,256.46mm OD
9-3/4 OD
1шт.
44
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
5шт.
45
425-105
NUT,5/16"-18, G5
5шт.
