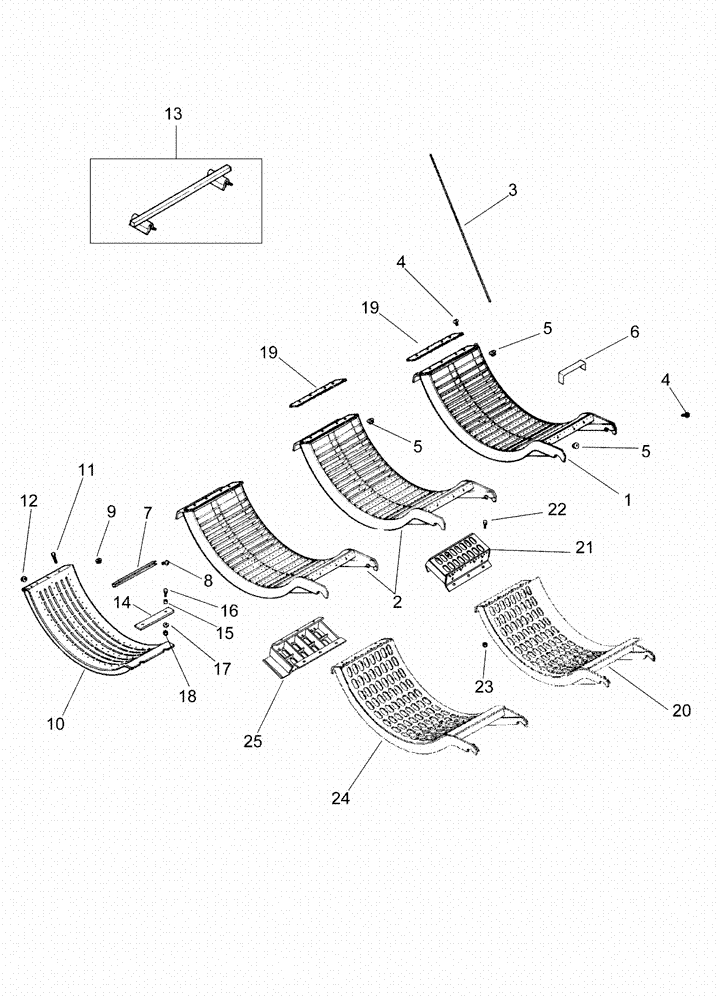

Запчасти Case IH 2388 (09B-17) - CONCAVES - GRATES AND CONCAVES (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
1
418647A1
CONCAVE
Front, Small Wire, Inc. 3 - 5, 19
1шт.
With Heat Treatment
1шт.
1
386188A1
CONCAVE
Front, Large Wire, Inc. 3 - 5
1шт.
Without Heat Treatment
1шт.
1
418645A1
CONCAVE
Front, Large Wire, Inc. 3 - 5, 19
1шт.
With Heat Treatment
1шт.
2
386189A1
CONCAVE
No. 2 and 3, Large Wire, Inc. 3 - 5
1шт.
Without Heat Treatment
1шт.
2
418646A1
CONCAVE
No. 2 and 3, Large Wire, Inc. 3 - 5, 19
2шт.
With Heat Treatment
1шт.
2
418648A1
CONCAVE
No. 2 and 3, Small Wire, Inc. 3 - 5, 19
1шт.
With Heat Treatment
1шт.
3
386352A1
WIRE
WIRE Concave, Large Wire
14шт.
3
418158A1
WIRE
WIRE Concave, Small Wire
30шт.
With Heat Treatment
1шт.
3
412400A1
WIRE
Concave, Smooth
6шт.
4
450-73816
SERRATED SCREW,Truss HD, 3/8" - 16 x 1"
8шт.
5
231-5146
FLANGE NUT,3/8"-16
8шт.
6
1309425C1
CHANNEL
Small Wire
1шт.
With Heat Treatment
1шт.
6
1309424C1
CHANNEL
Large Wire
1шт.
Without Heat Treatment
1шт.
7
191536C1
CHANNEL
Grate Adjusting, Corn, Used With 191535C2, REF 10
9шт.
8
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
27шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
27шт.
10
191535C2
GRATE
Slotted, Grain
3шт.
11
410-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8
3шт.
12
231-5146
FLANGE NUT,3/8"-16
3шт.
13
1324046C3
BAR
Small Wire
1шт.
With Heat Treatment
1шт.
14
186784C2
BAR
3шт.
15
600179R1
SPACER,13.9mm ID x 21.34mm OD x 14.3mm L
6шт.
16
281058
BOLT,Hex, 1/2" - 13 x 2", Gr 8
6шт.
17
495-11053
WASHER,1/2", SAE
6шт.
18
232-4118
NUT,1/2"-13, GC
6шт.
19
193859C1
PLATE
Concave
2шт.
19
431897A1
BAR
Concave
2шт.
20
316772A1
CONCAVE
Front Smooth Slotted, No. 1
1шт.
21
316773A1
EXTENSION
Concave, Front Smooth, No. 1
1шт.
22
410-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8
4шт.
23
231-5146
FLANGE NUT,3/8"-16
4шт.
24
316778A1
CONCAVE
Front Smooth Slotted, No. 2. and 3
2шт.
25
316774A1
EXTENSION
Concave, Front, No. 2 and 3
2шт.
Выбрано товаров: 44
