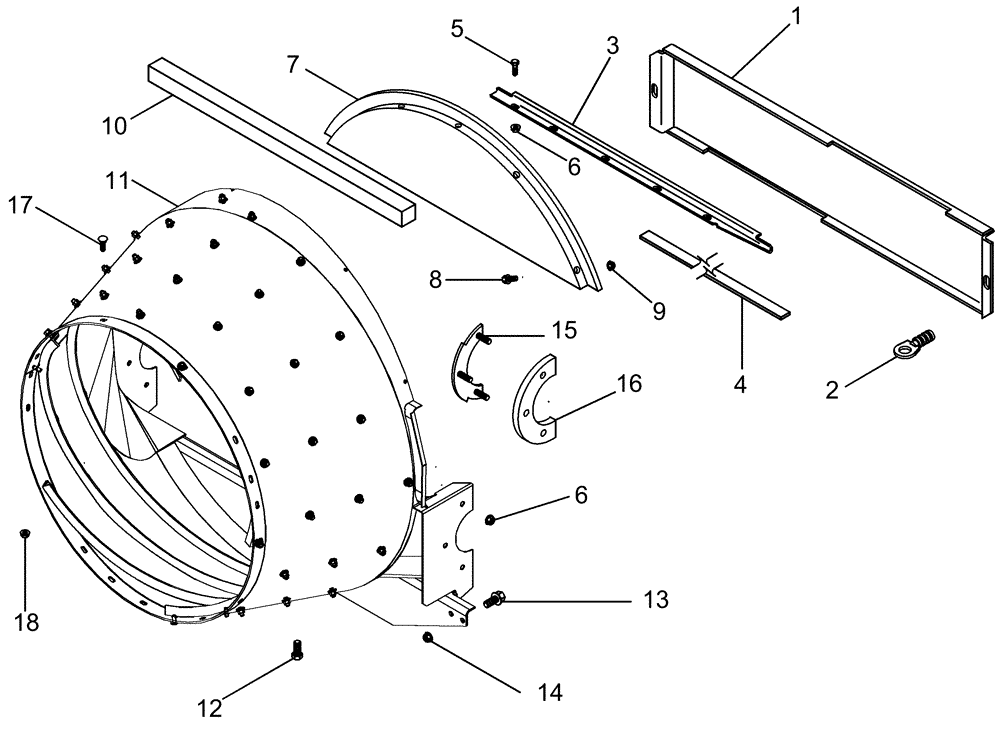

Запчасти Case IH 2388 (09B-12) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

87540270

SHEET

Rotor Front Door

1шт.

2

188029C1

LATCH

2шт.

3

231848A1

RETAINER

Front Door Lower Seal

1шт.

4

231849A2

DOOR SEAL,995mm L

Front Door Lower Seal

1шт.

5

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11шт.

7

193607C3

SUPPORT

Rotor Front, Standard Wear

1шт.

7

291127A1

GUARD

Rotor Front, Extended Wear

1шт.

Rice Combine

1шт.

8

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

10шт.

10

233482A1

DOOR SEAL,380mm L

2шт.

11

443123A1

KIT

Extended Wear With Standard Vanes

1шт.

11

428245A2

PACKAGE

Extended Wear With Stainless Steel Vanes

1шт.

11

428247A2

CONE

Standard Wear With Stainless Steel Vanes

1шт.

Rice Combine

1шт.

12

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

195409C1

PLATE

Three Stud

2шт.

16

195202C1

SEAL

2шт.

17

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

2шт.

17

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

23шт.

18

231-5146

FLANGE NUT,3/8"-16

25шт.

19

419957A1

SEAL

Seal, Rear Service Deck Connection, Cut 1260 mm From 195917C2, Not Illustrated

1шт.
