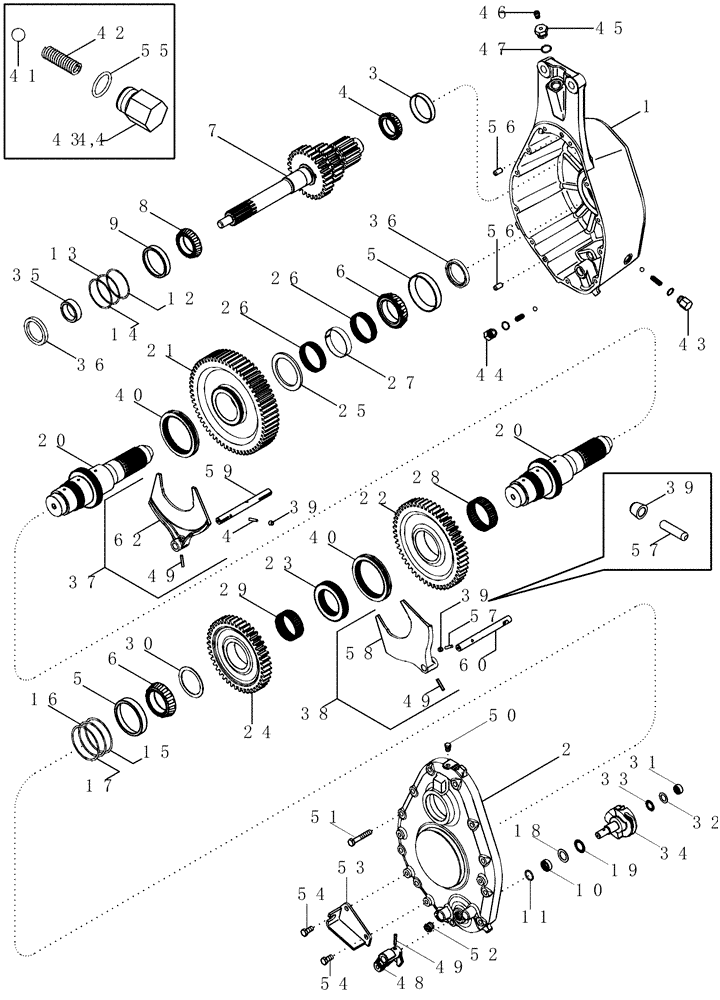

Запчасти Case IH 2388 (09B-04) - ROTOR DRIVE - HOUSING, GEAR (14) - ROTOR, CONCANVES & SIEVE

87331237

GEARBOX

Inc. 1- 60

1шт.

87330126R

GEARBOX

2388 (RU) ASN HAJ300001, Reman For New P/N 87331237

1шт.

87330126C

CORE

Return Number

1шт.

1

87330128

HOUSING

Inc. 56

1шт.

2

87330131

COVER

Rotor Drive Gear Case

1шт.

3

130503H

BEARING CUP

1шт.

4

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1шт.

5

29214H

BEARING CUP,110mm OD x 18.82mm W

2шт.

6

80572270

BEARING ASSY,63.5mm ID x 22mm W

2шт.

7

451231A2

SHAFT

Rotor Drive Input

1шт.

8

87326176

BEARING ASSY,50.8 mm ID x 63 mm OD x 25.4 mm

1шт.

9

114979H

BEARING CUP,92mm OD x 19.845mm W

1шт.

10

96423C1

NEEDLE BEARING,1" ID x 1.2505" OD x 0.5"

1шт.

11

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

12

253178A1

SHIM,83mm ID x 91.5mm OD x 0.38mm Thk

Input Shaft 91.5 OD x 0.381 THK

1шт.

13

253177A1

SHIM,83mm ID x 91.5mm OD x 0.25mm Thk

Input Shaft 91.5 OD x 0.254 THK

1шт.

14

337374A1

SHIM,83mm ID x 91.5mm OD x 0.2mm Thk

Input Shaft 91.5 OD x 0.203 THK

1шт.

15

258819A1

SHIM,98.5mm ID x 109mm OD x 0.38mm Thk

Input Shaft 109 OD x 0.381 THK

1шт.

16

258818A1

SHIM,98.5mm ID x 109mm OD x 0.25mm Thk

Input Shaft 109 OD x 0.254 THK

1шт.

17

337375A1

SHIM

Input Shaft 109 OD x 0.203 THK

1шт.

18

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

Thrust

1шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Needle

1шт.

20

87367599

SHAFT

Rotor Drive Output

1шт.

21

87330133

GEAR

Low Driven 61T

1шт.

22

87326186

GEAR

Mid Driven 51T

1шт.

23

451244A1

SPLINED RING,50T Internal / 54T External

1шт.

24

87326187

GEAR

High Driven 43T

1шт.

25

451245A2

THRUST WASHER,80.3mm ID x 100mm OD x 5mm Thk

1шт.

26

235584A1

BEARING, NEEDLE,79.99mm ID x 86.02mm OD x 19.63mm W

2шт.

27

451255A1

SPACER,81.93mm ID x 85.85mm OD x 17.5mm L

Low Driven Gear Bearing

1шт.

28

235591A1

BEARING, NEEDLE,84.98mm ID x 93.02mm OD x 29.63mm W

1шт.

29

235594A1

BEARING, NEEDLE,74.99mm ID x 83.02mm OD x 29.63mm W

1шт.

30

235595A2

THRUST WASHER,75.25mm ID x 95mm OD x 2.28mm Thk

1шт.

31

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

1шт.

32

396795R1

THRUST WASHER

Thrust Washer

1шт.

33

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

Needle

1шт.

34

307483A3

CAM

Gear Shift

1шт.

35

194047C2

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

Input Shaft

1шт.

36

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

Rotor Gear Case

2шт.

37

451249A1

SHIFT RAIL

Low/Mid Shift

1шт.

38

451253A1

SHIFT RAIL

High Shift

1шт.

39

236851A1

ROLLER,12mm OD x 9.5mm L

Cam, 3 Spd Rotor Drive

2шт.

40

87491816

COLLAR

Shift

2шт.

41

211-1014

BALL,7/16" Dia

In Grd; 24

2шт.

42

295537A1

SPRING

Detent Ball

2шт.

43

307410A1

PLUG

7/8 x 14

1шт.

44

451237A1

PLUG,7/8" - 14

7/8 -14

1шт.

45

87326175

PLUG,1-1/16" - 12

Adapter Vent

1шт.

46

219-433

BREATHER,1/8"-27, Short

1шт.

47

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

48

87402650

ARM

Cam Shift 3 Spd Rotor Gearbox

1шт.

49

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

1шт.

50

86568834

PLUG,1/4" - 18 NPT

1шт.

51

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

11шт.

52

353-779

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic, w/O-Ring

1шт.

53

451241A2

BRACKET

Shift Cable

1шт.

54

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

56

37-1816

DOWEL,1/2" x 1"

2шт.

57

37-1420

DOWEL,1/4" x 1 1/4"

2шт.

58

451251A1

SHIFTER FORK

2шт.

59

451250A1

SHIFT RAIL

Lo-Mid Gear

1шт.

60

451254A1

SHIFT RAIL

Hi Gear

1шт.

61

87525964

SHIM,83mm ID x 91.5mm OD x 0.08mm Thk

M83.0 x 91.5 x 0.076 (Not Shown)

1шт.

62

87525965

SHIM

M98.5 x 109.0 x 0.076 (Not Shown)

1шт.
