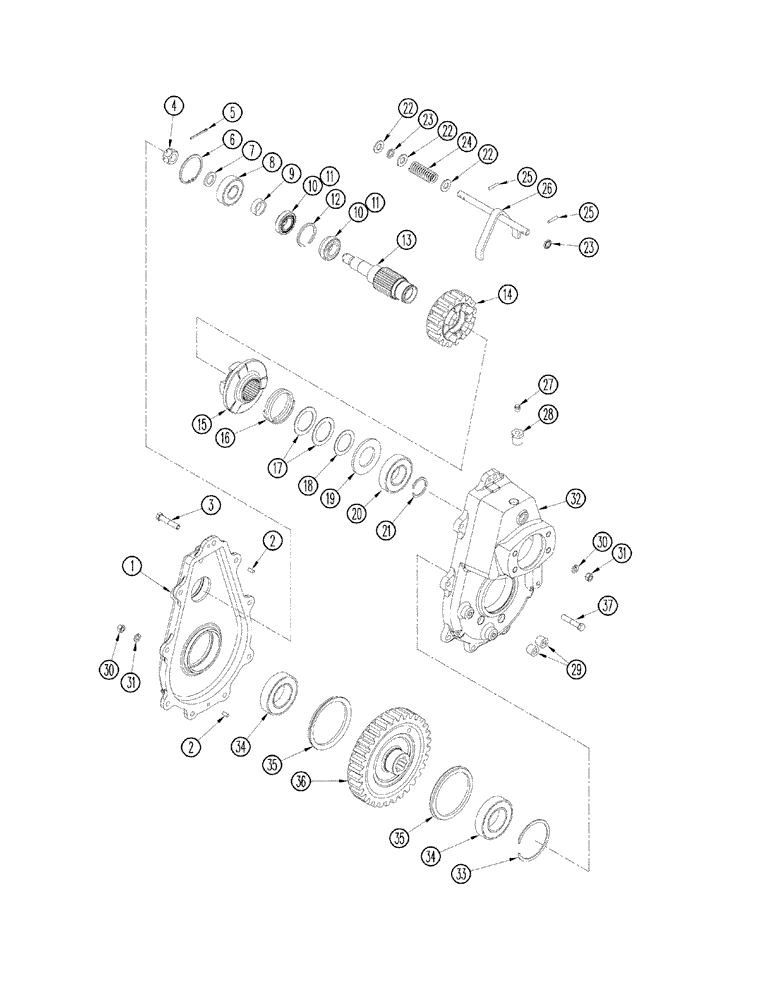

Запчасти Case IH 2388 (09A-22) - GEARBOX - FEEDER REVERSER (13) - FEEDER

86980131

GEARBOX

Inc. 1 - 36

1шт.

86980131R

REMAN-GEARBOX

2388 (RU) ASN HAJ300001 (10/06-)

1шт.

86980131C

CORE-GEARBOX

Return Number

1шт.

1

681631

HOUSING

Inc. 2

1шт.

2

64780

DOWEL,1/4" x 1/2", HDN

1/4 x 1/2

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

7шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

5

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

6

100-21244

SNAP RING,2.44", Int, #244

1шт.

7

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

1шт.

8

86548977

BALL BEARING,0.9843" ID x 2.4409" OD x 0.6693"

1шт.

9

144929

SPACER

1шт.

10

132709

BEARING CUP,50.29mm OD x 10.67mm W

2шт.

11

132710

BEARING CONE,25.4mm ID x 14.73mm W

2шт.

12

685097

SNAP RING

1шт.

13

681639

SHAFT

1шт.

14

681629

GEAR

16T

1шт.

15

681637

CLUTCH

1шт.

16

646518

SPRING

1шт.

17

26224

WASHER

1-25/32 x 2-1/2 x 0.060 in

2шт.

18

704377

WASHER

1-25/32 x 3-5/16 x 3/16 in

1шт.

19

50519

WASHER

1.58 x 2-1/4 x 0.060 in

1шт.

20

112041R91

BALL BEARING

1шт.

21

80037184

SNAP RING

1шт.

22

495-11053

WASHER,1/2", SAE

3шт.

23

163024

WIPER SEAL

2шт.

24

681902

SPRING

1шт.

25

435-5616

GROOVED PIN,3/16" x 1", Type E

2шт.

26

681650

ROD

1шт.

27

572820

BREATHER

1шт.

28

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1шт.

29

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

2шт.

30

425-106

NUT,3/8"-16, Cl 5

9шт.

31

492-11038

LOCK WASHER,3/8"

7шт.

32

86980130

HOUSING

1шт.

33

42447

SNAP RING

1шт.

34

2031

BALL BEARING,50 mm ID x 90 mm OD x 20 mm

2шт.

35

781754

RING,89.66mm ID x 107.66mm OD x 10.92mm Thk

2шт.

36

681627

GEAR

32T

1шт.

37

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.
