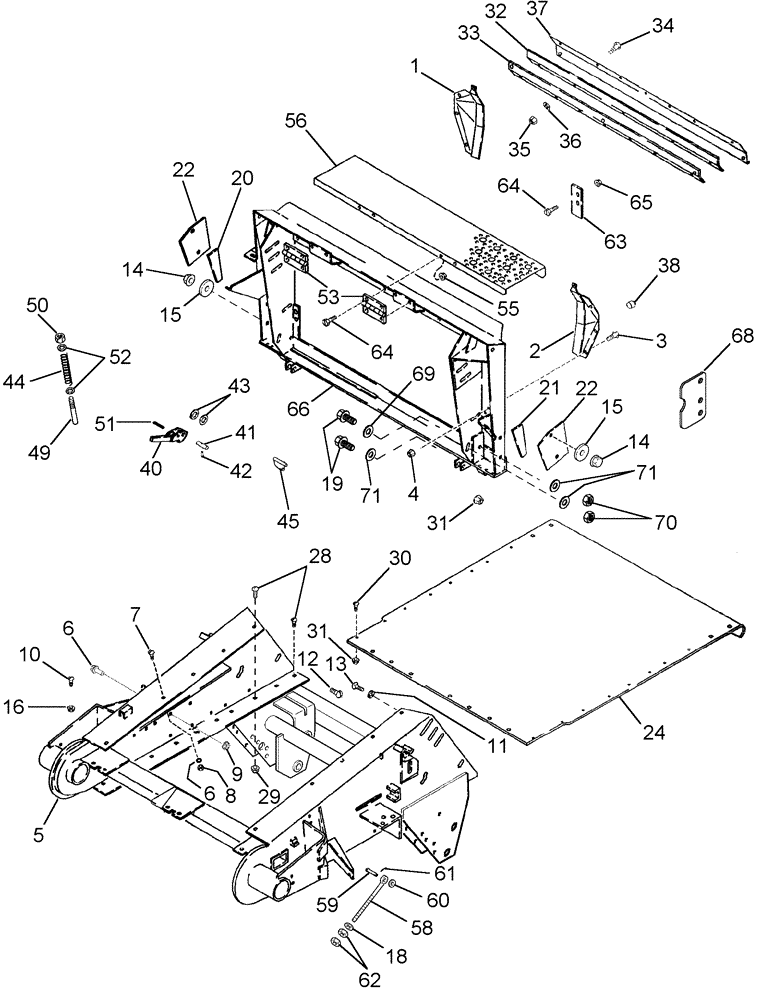

Запчасти Case IH 2388 (09A-15) - FEEDER - HOUSING AND ADAPTER (13) - FEEDER

1

184853C1

DEFLECTOR

Left Hand Front

1шт.

2

184854C1

DEFLECTOR

Right Hand Front

1шт.

51

38-1816

LOCK PIN,1/8" x 1", Slotted

2шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

5

400931A3

HOUSING

1шт.

With 54-1/2 Inch Feeder

1шт.

Inc. Decals 144379A1, See Figure 09H-19, REF 4; 144385A1, REF 9

1шт.

5

400929A3

HOUSING

1шт.

With 60 Inch Feeder

1шт.

Inc. Decals 144379A1, See Figure 09H-19, REF 4; 144385A1, REF 9

1шт.

6

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

2шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

11

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

8шт.

12

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

2шт.

13

416-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 8

8шт.

14

400025A1

FLANGE NUT

5/8; 8

8шт.

15

145678C3

WASHER

17 mm

8шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

18

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

19

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

20

1327752C1

FOAM INSULATION

Side, Left Hand

1шт.

21

1327753C1

FOAM INSULATION

Side, Right Hand

1шт.

22

1327737C2

PLATE

Feeder Side, Serial Range: -HAJ300989

2шт.

22

87624710

COVER

Feeder Side, Start Serial: HAJ300989

2шт.

24

1324572C2

PANEL

Lower

1шт.

With 54-1/2 Inch Feeder

1шт.

24

1345455C1

PANEL

Lower, Perforated

1шт.

With 54-1/2 Inch Feeder

1шт.

24

1324574C2

PANEL

Lower

1шт.

With 60 Inch Feeder

1шт.

24

118846A1

BOTTOM

Lower, Perforated

1шт.

With 60 Inch Feeder

1шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

4шт.

29

131-946

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

16шт.

31

425-286

FLANGE NUT,Flg, 3/8"-16, G5

16шт.

32

109254A1

PLATE

1шт.

33

1319473C1

COVER

Upper

1шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

35

232-4115

LOCK NUT,5/16"-18, GC

5шт.

35

231-4115

NUT,5/16"-18, GB

7шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

5шт.

36

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

7шт.

37

1319475C1

COVER

Adapter

1шт.

38

1321640C1

GROMMET

Cover

2шт.

40

179024C1

HINGE

2шт.

41

177141C1

PIN,15.88mm OD x 41mm L

2шт.

42

438-11616

LOCK PIN,1/4" x 1", Slotted

2шт.

43

495-81175

WASHER,21/32" x 1" x .120"

4шт.

44

367833R1

SPRING

2шт.

45

1338021C1

PIN,7.94mm OD

2шт.

49

177138C1

ROD

2шт.

50

231-1445

NUT,5/16"-18, GB

2шт.

52

495-11034

WASHER,5/16", SAE

4шт.

54

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

22шт.

55

231-5146

FLANGE NUT,3/8"-16

25шт.

56

140768A4

STEP

1шт.

58

1321735C3

EYEBOLT

BOLT, EYE

2шт.

59

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

2шт.

60

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

61

432-1216

COTTER PIN,3/16" x 1"

2шт.

62

9803187

NUT,1/2"-13, G8

4шт.

63

181646C1

SUPPORT

2шт.

64

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

65

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

66

140764A4

ADAPTER

Feeder, Serial Range: -HAJ300989

1шт.

66

87624709

ADAPTER

Feeder, Start Serial: HAJ300989

1шт.

67

126046A1

GASKET,287.02mm L

292 mm (11-1/2 in), Cut From 196707C1, (Not Shown)

2шт.

68

87558951

PLATE ASSY.

2шт.

69

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

2шт.

70

425-108

NUT,1/2" - 13, Gr 5

4шт.

71

195-81030

WASHER

6шт.
