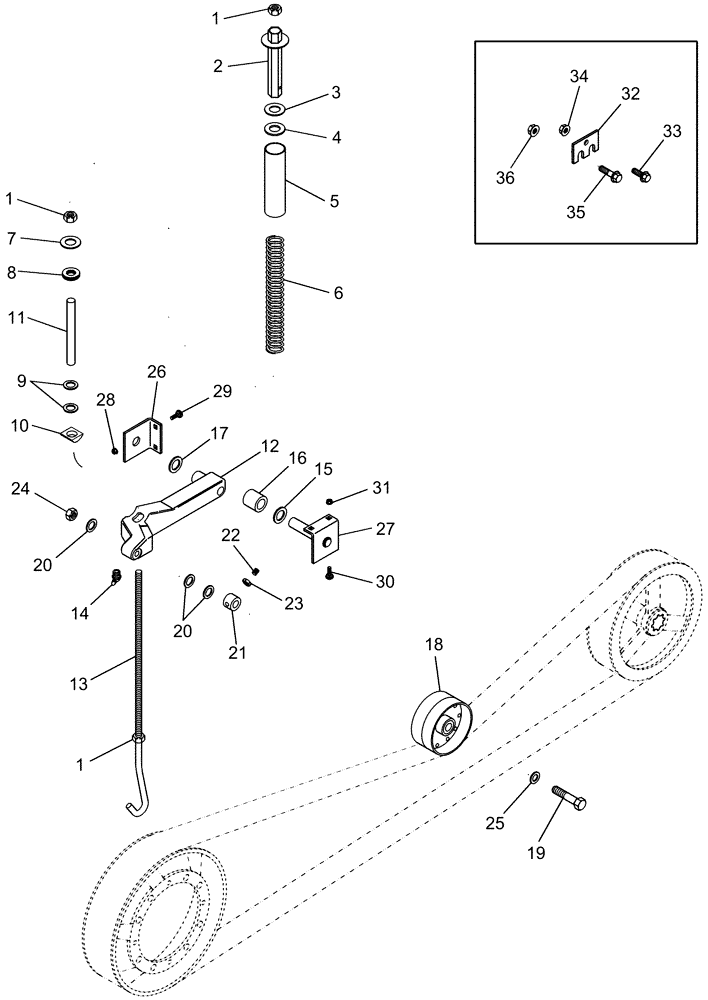

Запчасти Case IH 2388 (09A-13) - FEEDER - JACKSHAFT IDLER PIVOT (13) - FEEDER

1

425-1010

NUT,5/8"-11, G5

2шт.

1

86990149

NUT

5/8 in

1шт.

2

86988850

TENSIONER

5/8 in

1шт.

3

413528A1

WASHER,26.98mm ID x 50.8mm OD x 1.58mm Thk

1-1/16 x 2 x 1/16, Plastic

1шт.

4

495-81191

WASHER,1 5/32" x 2" x .060"

2шт.

5

389973A2

TUBE,44.32 mm ID, 47.63 mm OD, 232 mm Length

1шт.

6

389972A2

SPRING

1шт.

7

389974A1

SPRING WASHER

Spring Guide

1шт.

8

413909A1

WASHER

Inc. 8A, 8B

1шт.

8a

416747A1

WASHER

Special, Spherical Upper

1шт.

8b

416749A1

WASHER

Special, Spherical Lower

1шт.

9

495-81039

WASHER,25/32" x 1 1/4" x .120"

2шт.

10

413984A1

PIVOT

1шт.

11

413513A1

SLEEVE

1шт.

12

411925A1

ARM

1шт.

413827A1

HOOK

Inc. 13, (1) 425-1010

1шт.

13

413526A1

ROD

5/8 in

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

15

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

7шт.

16

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

1шт.

17

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

18

176579C1

IDLER

8 in OD, Drive Tightener

1шт.

19

135260A1

BOLT,Hex W/ Timing Mark, 5/8" - 11 x 5", Gr 5

5/8 x 5

1шт.

20

495-11066

WASHER,5/8", SAE

3шт.

21

1345410C1

BUSHING,16.7mm ID x 35mm OD x 15mm L

17 x 35 x 15 mm

1шт.

22

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

23

425-105

NUT,5/16"-18, G5

2шт.

24

232-41110

NUT,5/8"-11, GC

1шт.

25

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

1шт.

26

182323C1

SUPPORT

1шт.

27

182322C1

SUPPORT

1шт.

28

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

31

231-5146

FLANGE NUT,3/8"-16

4шт.

32

412294A1

STRAP

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
