Запчасти Case IH 2388 (09A-10) - FEEDER - DRIVE (13) - FEEDER

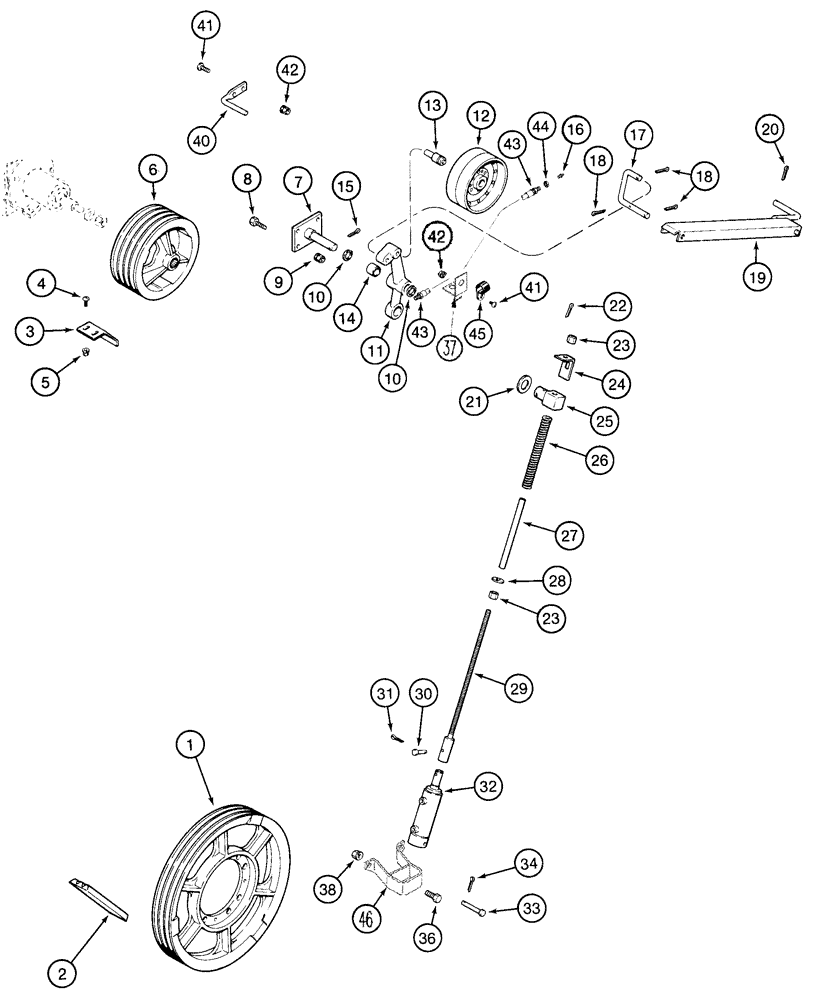

Схема запчастей Case IH 2388 - (09A-10) - FEEDER - DRIVE (13) - FEEDER
23
46
40
13
10
18
32
4
30
31
24
27
23
45
34
42
7
15
21
22
11
18
10
6
44
42
2
29
1
19
37
16
20
41
36
26
43
9
8
3
41
12
14
5
28
17
33
25
43
38

Артикул

Название

Примечание

Количество

1

396781A1

PULLEY,573mm OD

22-9/16 OD, Driven

1шт.

2

194528C2

BELT,22.225 mm W x 3641.50 mm L, 3, Ribs

Over center

1шт.

Without Rock Trap

1шт.

2

1315074C2

V-BELT,22.23 mm W x 4029.32 mm L

1шт.

With Rock Trap

1шт.

3

186513C1

SUPPORT

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

193999C3

PULLEY

12 in OD, Drive

1шт.

7

185414C2

SUPPORT

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

6шт.

194494C93

ARM

Inc. 11 -14

1шт.

11

NSS

NOT SOLD SEPARAT

Lever

1шт.

12

174757C1

PULLEY

8 in OD, Idler

1шт.

13

86976596

BEARING,30mm OD x 82.55mm L

1шт.

14

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1 x 1-1/4 x 1-1/8

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

116032A1

HOOK

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

3шт.

19

116029A1

HOLDER

1шт.

Without Power Guide Axle

1шт.

19

116030A1

HOLDER

1шт.

With Rock Trap

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1шт.

22

432-1240

COTTER PIN,3/16" x 2 1/2"

1шт.

23

425-1010

NUT,5/8"-11, G5

2шт.

24

450553A2

CLIP

5/8 in

1шт.

25

450554A1

PIVOT

5/8 in

1шт.

26

450555A1

SPRING

5/8 in

1шт.

27

450551A1

SPACER

5/8 in

1шт.

28

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

29

450556A1

ROD

5/8 in

1шт.

30

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

31

432-612

COTTER PIN,3/32" x 3/4"

1шт.

32

133405C92

CYLINDER

Fan Engage, 51 ID x 63 mm strk

1шт.

See Figure(s) 08-30, 08-22

1шт.

32

87337239R

REMAN-HYD CYLINDER

2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ300001, Fan Engage, 51 ID x 63 mm strk (10/06-), Reman for New PN 133405C92

1шт.

32

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

32a

134713A1

CHECK VALVE,11/16" - 16 ORFS x 9/16" - 18 ORB

Check Valve

1шт.

33

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

36

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

37

419744A1

BRACKET

Hose

1шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

87373945

ROD

1шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2-3шт.

41

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

42

231-5146

FLANGE NUT,3/8"-16

3-4шт.

43

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

44

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

45

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

46

84170096

SUPPORT

1шт.

Выбрано товаров: 56
