(09H-21) - DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL

Запчасти Case IH 2388 (09H-21) - DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL (12) - CHASSIS

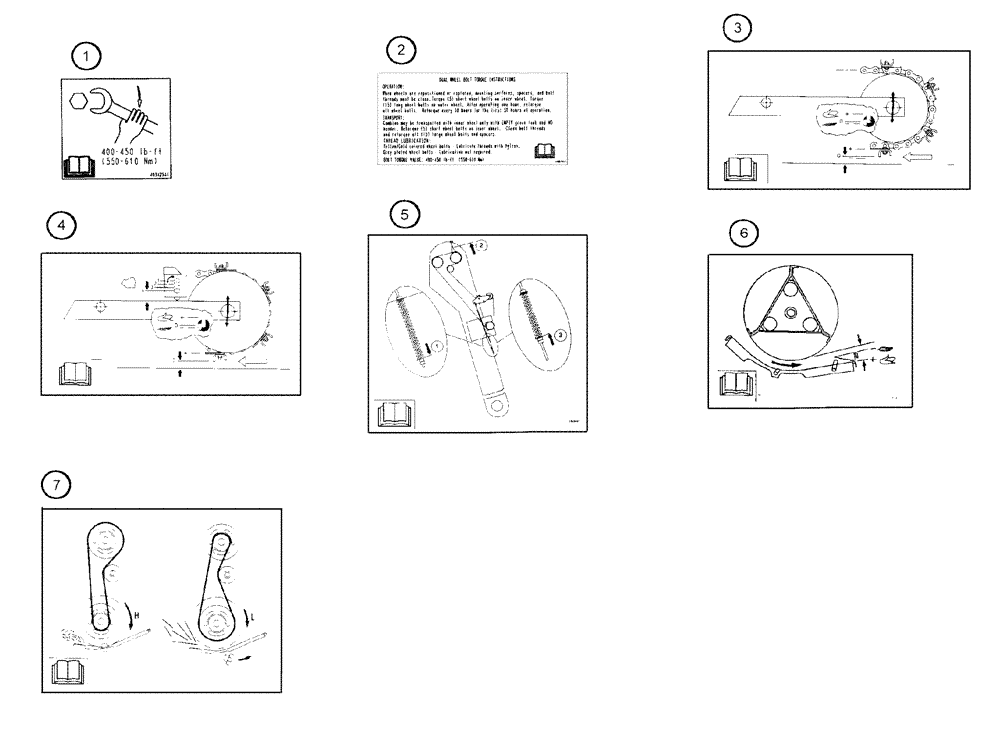

Схема запчастей Case IH 2388 - (09H-21) - DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL (12) - CHASSIS
2
6
4
1
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

403425A1

DECAL

Bolt Torque, Single Drive Wheel

2шт.

2

448670A1

DECAL

Bolt Torque, Dual Wheel

2шт.

3

175782A1

DECAL

Feeder Drum Adjuster

1шт.

Without Stone Retarder

1шт.

4

175783A1

DECAL

Feeder Drum Adjuster

1шт.

With Stone Retarder

1шт.

5

175168A1

DECAL

Inclined, Delivery Auger Elevator

1шт.

6

175786A1

DECAL

Beater Bottom Adjuster

1шт.

7

175788A1

DECAL

Straw Chopper Drive

1шт.
