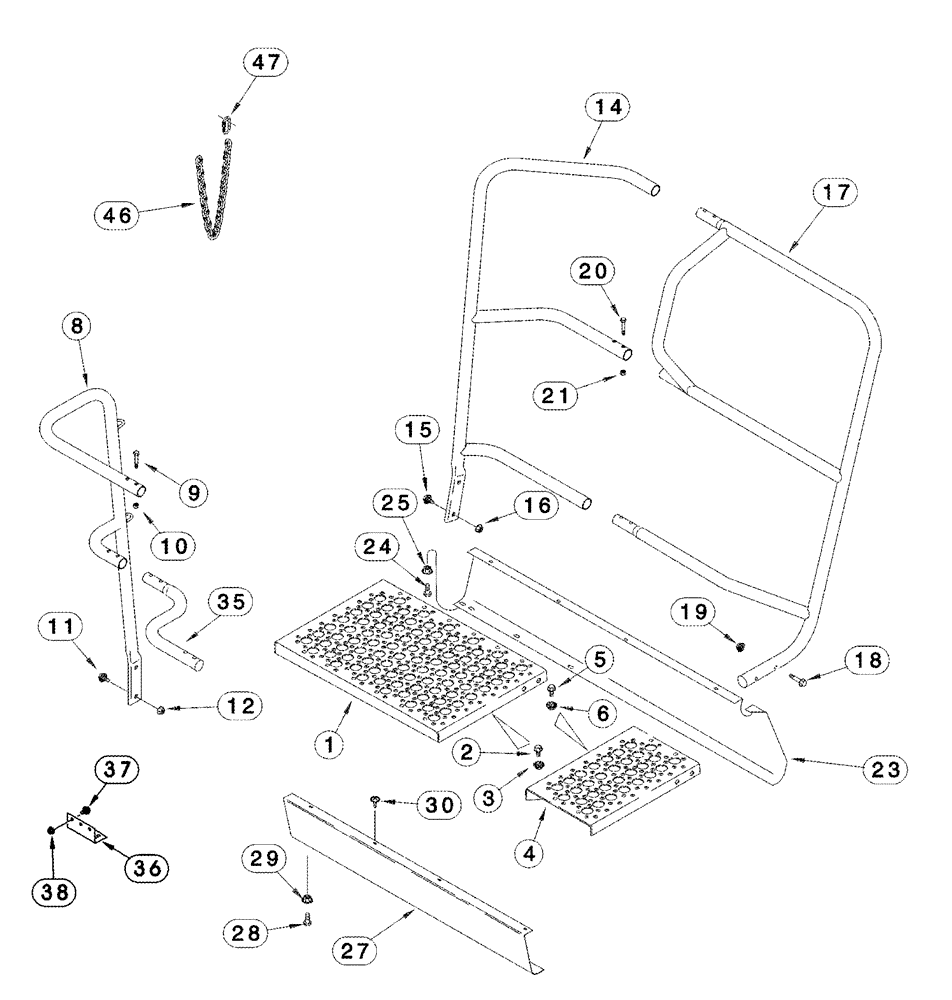

Запчасти Case IH 2388 (09H-14) - PLATFORM, OPERATORS - LEFT HAND (12) - CHASSIS

1

142163A2

PLATFORM

30 in

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

124315A1

STEP

10 in

1шт.

See Figure 09H-16

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

8

87547863

RAMP

40 in, Rear

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

10

231-1445

NUT,5/16"-18, GB

6шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

87547861

RAMP

40 in, Front

1шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

87547853

RAMP

Front

1шт.

18

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

2шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

21

231-1445

NUT,5/16"-18, GB

6шт.

23

127718A2

SUPPORT

1шт.

24

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

27

326938A1

CHANNEL

40 in, Left Hand Rear

1шт.

28

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

30

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

8шт.

35

87547859

TUBE,29.15 mm ID x 28.2 - 33.35 mm OD x 393, 205 mm L

Center

1шт.

36

141049A2

SUPPORT

2шт.

37

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

46

324546A1

CHAIN,628mm L

2шт.

47

326376A2

LINK

Ladder Chain

4шт.
