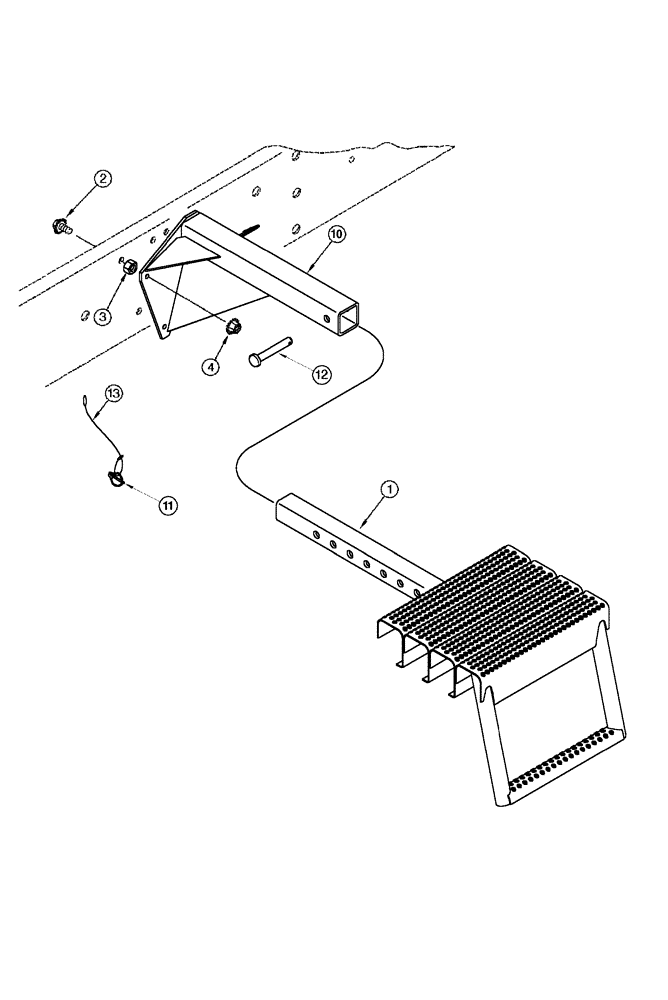

Запчасти Case IH 2388 (09H-12) - LADDER - RADIATOR ACCESS (12) - CHASSIS

1

87412228

STEP

Radiator Access

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

6

418690A1

PLATE

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

10

87412230

SUPPORT

Support, Radiator Access

1шт.

11

A33497

LINCH PIN,4.76mm OD Pin

1шт.

12

87024650

HEADED PIN

5/8 x 3

1шт.

13

427336A1

CABLE,457.2mm L

457 mm (18 in)

1шт.
