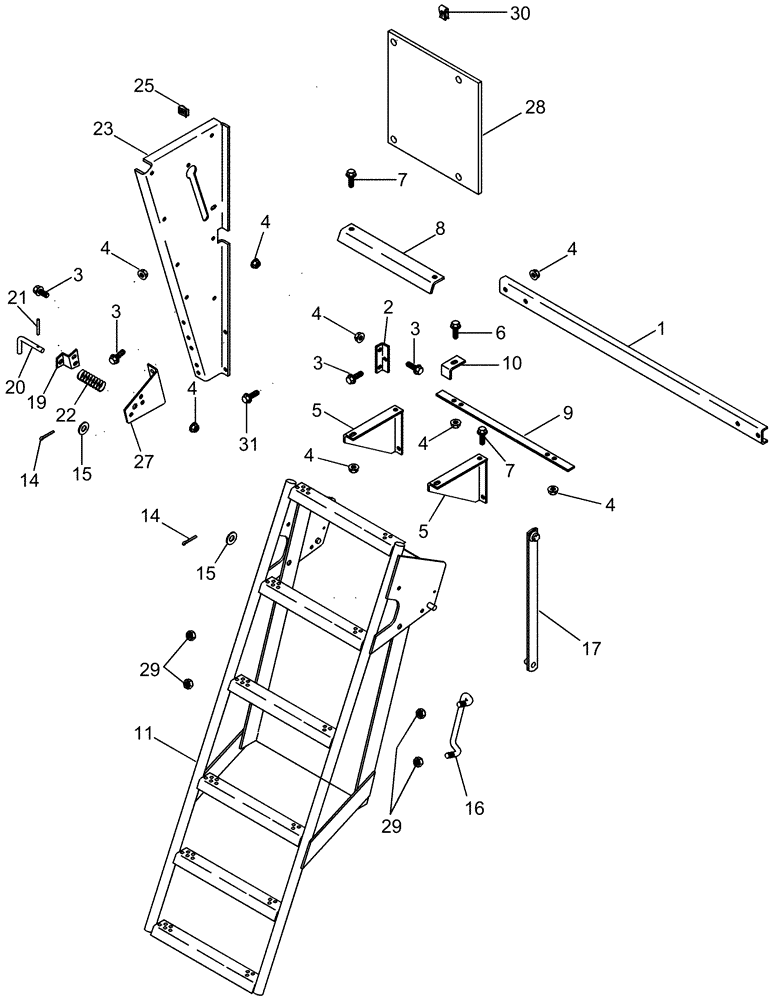

Запчасти Case IH 2388 (09H-10) - LADDER, SERVICE (12) - CHASSIS

1

382341A1

CHANNEL

1шт.

2

1327997C2

BRACKET

2шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

17шт.

5

1347489C1

SUPPORT

2шт.

6

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

8

1327607C1

PLATE

1шт.

9

1319722C1

BAR

1шт.

10

1321975C1

BRACKET

1шт.

11

87553728

LADDER

Inc. Decal 311858A1

1шт.

See Figure 09H-18, REF 9

1шт.

14

432-1212

COTTER PIN,3/16" x 3/4"

4шт.

15

495-11066

WASHER,5/8", SAE

6шт.

16

1329715C1

HANDLE

1шт.

17

1321698C1

LINK

2шт.

19

1319739C1

BRACKET

1шт.

20

1319740C2

PIN,3mm OD x 20mm OAL

1шт.

21

38-1813

LOCK PIN,1/8" x 13/16", Slotted

1шт.

22

540815R2

SPRING

1шт.

23

87552551

BRACE

LH (Shown)

1шт.

24

364130A1

SUPPORT

RH, (Not Shown)

1шт.

25

488837C1

SPRING NUT

5/16

4шт.

27

1319738C1

BRACKET

2шт.

28

364784A1

PLATE

1шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.
