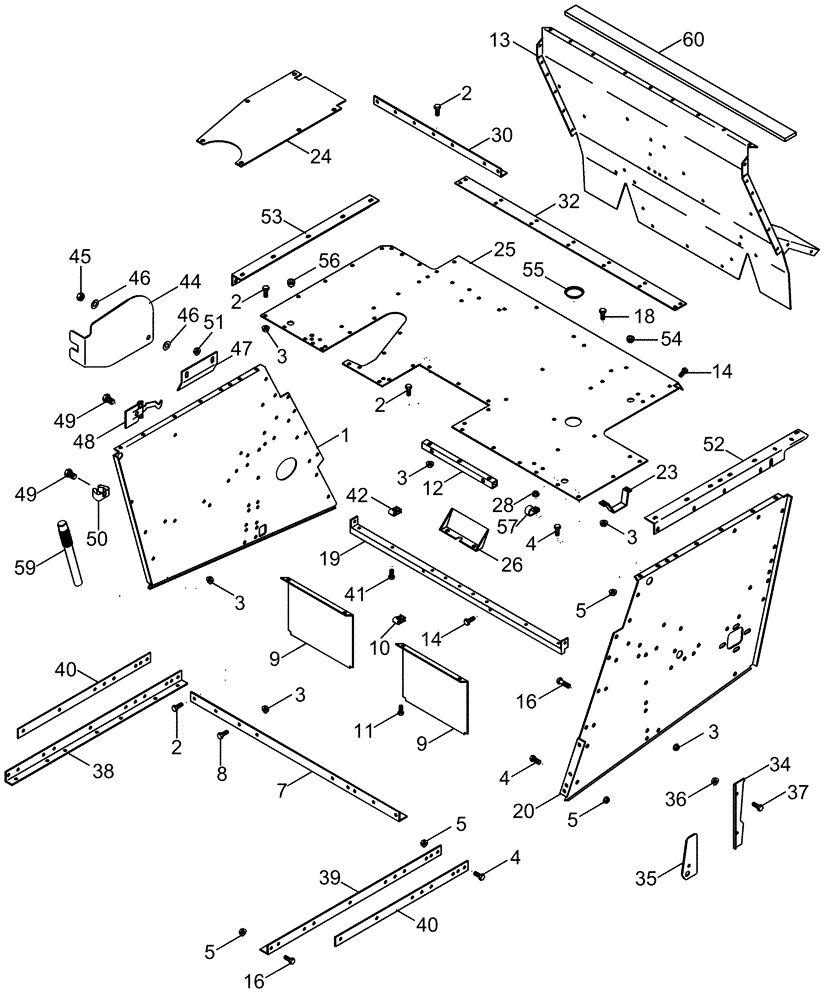

Запчасти Case IH 2388 (09H-05) - SEPARATOR - HOOD (12) - CHASSIS

1

87344263

SHEET

Left-Hand, Inc. Decals 144388A1 & 179620A2

1шт.

See Figure(s) 09H-19, REF 6; 09H-20, REF 6

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

69шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

87шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

13шт.

5

231-5146

FLANGE NUT,3/8"-16

21шт.

7

192304C2

RAIL

Rear

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

441739A1

SUPPORT

Rear, Inc. Decals 144370A1 & 435799A1

2шт.

See Figure(s) 09H-19, REF 1; 09H-20, REF 9

1шт.

10

488837C1

SPRING NUT

5/16

14шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

12

186971C1

ANGLE

Rear

1шт.

13

364626A3

SUPPORT

Fuel Tank

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

17

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16 x 13/16

10шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

18

488837C1

SPRING NUT

5/16

17шт.

19

358622A1

SUPPORT

1шт.

20

87372079

SHEET

Right-Hand

1шт.

23

380043A1

STOP

Fuel Tank

2шт.

24

441454A1

COVER

Engine

1шт.

25

87372077

SHEET

Rear Deck

1шт.

26

364781A1

RETAINER

Fuel Tank

1шт.

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

30

279682A1

SUPPORT

Rear Deck

1шт.

32

87412923

SHEET

Rear Deck

1шт.

33

280059A1

SEAL

(Not Shown)

1шт.

34

87374618

SHEET

Seal

1шт.

35

418096A2

SHEET

Seal

1шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

38

412620A1

SUPPORT

Angle, Left Hand Separator Hood

1шт.

39

412622A1

SUPPORT

Angle, Right Hand Separator Hood

1шт.

40

418632A1

STRAP

Spacer

2шт.

41

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

7шт.

42

410009A1

SPRING NUT

U-type

8шт.

43

1302758C1

PLUG

Clean Out Hole, (Not Shown)

1шт.

44

87314912

SHIELD

Sieve Lamp

1шт.

45

231-1444

NUT,1/4"-20, GB

1шт.

46

87308449

WASHER

1/4 x 1/2

2шт.

47

87314913

RETAINER

1шт.

48

167800C1

CLIP

Door Retainer

1шт.

49

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

3шт.

50

106744A1

CLIP

Sieve Handle

2шт.

51

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

52

87415390

SUPPORT

Right Hand Rear Trim Panel

1шт.

53

183368A2

SUPPORT

Left Hand Rear Trim

1шт.

54

195806C1

GROMMET

1шт.

55

87000778

PLUG,89mm OD

1шт.

56

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1шт.

57

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

59

106743A1

HANDLE

Extension Assy.

1шт.

60

280059A1

SEAL

Foam Tape

1шт.

61

87602943

(Not Shown)

1шт.
