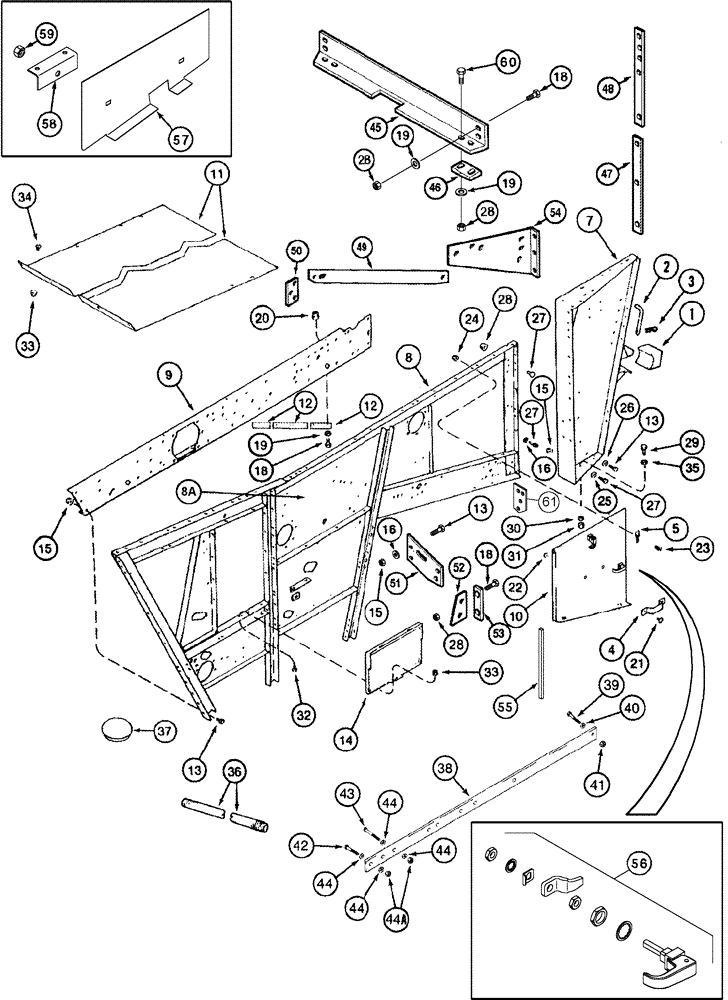

Запчасти Case IH 2388 (09H-04) - SEPARATOR - DOORS - RIGHT HAND (12) - CHASSIS

1

1989327C2

RETAINER

1шт.

1

1989327C3

RETAINER

12 Row Ready

1шт.

2

418694A1

ROD,25.4mm OD

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

87686906

LATCH

1шт.

5

86991204

LATCH

2шт.

7

87386289

POST

Right Hand

1шт.

8

87590294

SEPARATOR

Right Hand, Inc. 8A

1шт.

8a

192626C3

SHEET

Right Hand Upper Center

1шт.

9

87335705

SILL

RH, Main

1шт.

10

86991350

DOOR

Right Hand Front

1шт.

11

87615042

SHEET

1шт.

12

186018C1

STRAP

1шт.

13

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

21шт.

14

87301105

DOOR

1шт.

15

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

23шт.

16

495-21044

WASHER,3/8"

3шт.

17

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

(Not Shown)

1шт.

18

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

44шт.

20

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

2шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

4шт.

26

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

13шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

28

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

21шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1010

NUT,5/8"-11, G5

2шт.

32

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

33

231-5146

FLANGE NUT,3/8"-16

3шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

35

493-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

36

1319395C1

CONDUIT

12-1/8, Cut From 1262114C1

1шт.

37

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

38

198572A1

STRAP

12 Row Ready

1шт.

39

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

12 Row Ready

1шт.

40

496-41041

WASHER,13/32" x 1 1/8" x .134"

12 Row Ready

2шт.

41

429-106

NUT,3/8"-16, G8

12 Row Ready

1шт.

42

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

12 Row Ready

6шт.

43

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

12 Row Ready

2шт.

44

496-21053

WASHER,17/32" x 1 1/16" x .134"

12 Row Ready

16шт.

44a

429-108

NUT,1/2"-13, G8

12 Row Ready

8шт.

45

237623A1

SUPPORT

Front

1шт.

46

236509A1

SPACER

1шт.

47

236935A1

PLATE

Lower Right Hand

1шт.

48

236934A1

PLATE

Upper Right Hand

1шт.

49

236727A1

PLATE

Right Hand

1шт.

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

9шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

50

236728A1

PLATE

1шт.

51

87527681

PLATE

Left Hand Front

1шт.

52

87527683

SPACER

Left Hand

1шт.

53

239001A1

PLATE

1шт.

54

236317A1

SUPPORT

Right Hand

1шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

55

86991662

DOOR SEAL

Seal, 362 mm (14-1/4 in), Cut From 1971350C1

1шт.

56

86991204

LATCH

2шт.

57

87422278

SHEET

Air Flow Restriction

1шт.

58

86985754

SUPPORT

Support

2шт.

59

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

60

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

61

87527680

PLATE

Front Post Support

1шт.
