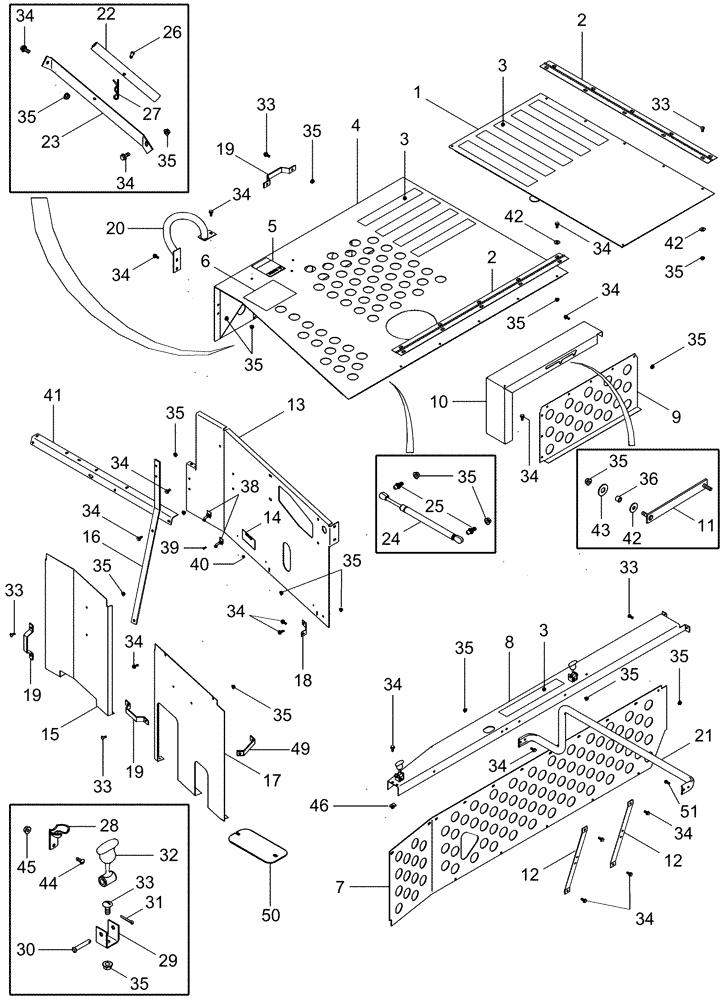

Запчасти Case IH 2388 (09H-01) - ENGINE SHIELDS AND SERVICE DECK (12) - CHASSIS

1

87306863

DOOR Rotor Cover

1шт.

2

442774A2

HINGE

2шт.

3

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in)

8шт.

4

87343628

DOOR

Engine Cover, Serial Range: -HAJ303001

1шт.

4

87713739

DOOR

Engine Cover, Start Serial: HAJ303001

1шт.

5

181597A1

WARNING DECAL

1шт.

6

435798A1

DECAL

Top Lube Fittings

1шт.

7

87362502

SHEET

Service Deck

1шт.

8

87547222

CHANNEL

Door and Hood Support, Left Hand

1шт.

9

451545A2

SHIELD

Rotor Drive Cover

1шт.

10

444055A2

CHANNEL

Upper

1шт.

11

1302413C1

PROP

Door

1шт.

12

451648A2

SUPPORT

Engine Cover

2шт.

13

87529011

BRACKET

Rear

1шт.

14

173881C1

DECAL

Important, Clean Engine

1шт.

15

87313659

SHIELD

Engine Air Left Hand

1шт.

16

87422854

SUPPORT

1шт.

17

87363206

SHIELD

Engine Air Right Hand

1шт.

18

444680A2

BRACKET

Engine Shield

1шт.

19

87686906

LATCH

3шт.

20

445183A2

HANDRAIL

Service Deck

1шт.

21

87313662

HANDRAIL

Engine Compartment

1шт.

22

448354A1

BRACKET

Cylinder Lockout

1шт.

23

87313660

SUPPORT

Dearation Panel

1шт.

24

446346A1

GAS STRUT

Engine Door Lift

2шт.

25

87025782

STUD

4шт.

26

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

27

473443R1

COTTER PIN

5/16

1шт.

28

L105124

LATCH HOOK

2шт.

29

188103C2

BRACKET

Hook Anchor

2шт.

30

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

32

494307C1

LATCH

2шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

25шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

39шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

61шт.

36

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

38

167800C1

CLIP

4шт.

39

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

40

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

41

442193A1

SUPPORT

Engine Deck Rear

1шт.

42

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11шт.

43

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

44

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

2шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

46

87301815

RIVET

2шт.

47

231-5315

FLANGE NUT,Flg, 5/16"-18

1шт.

48

1327979C1

MOLDING

152 mm (6 in), Cut From 196707C1, (Not Shown)

1шт.

49

87313658

SUPPORT

Dearation Panel

1шт.

50

87338173

PLATE

Cooler Box, Lower

1шт.

51

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

2шт.
