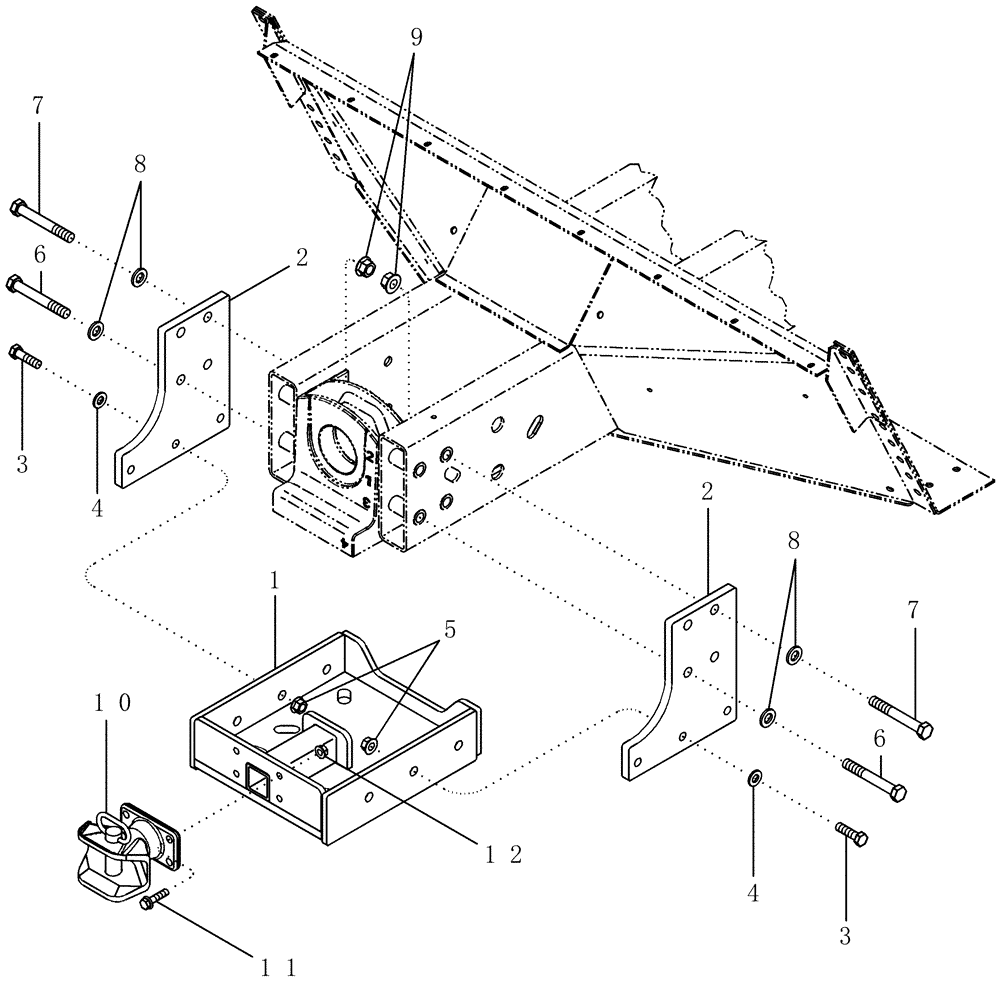

Запчасти Case IH 2388 (05-27) - HITCH, TRAILER (11) - TRACKS/STEERING

86993039

KIT

Hitch, Position 1 and 2, Inc. 1 - 9

1шт.

1

86993033

BASE

Hitch

1шт.

2

86993035

PLATE

Position No. 1 and 2

2шт.

2

86993036

PLATE

Position No. 3

2шт.

2

86993037

PLATE

Position No. 4

2шт.

3

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

6шт.

4

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

6шт.

5

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

6шт.

6

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

7

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

6шт.

8

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

9

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

8шт.

10

1311089C91

HOOK

1шт.

11

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
