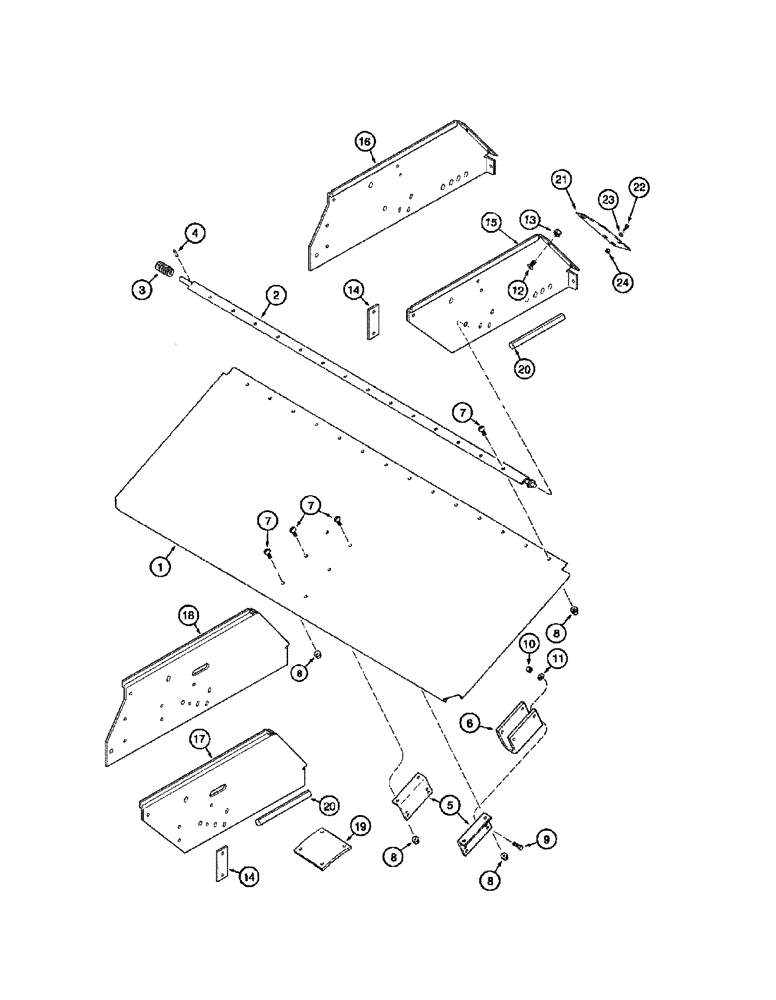

Запчасти Case IH 2388 (05-25) - AXLE, STEERING - SHIELD (11) - TRACKS/STEERING

1

1325597C2

SHIELD

Steering Axle

1шт.

With Straw Chopper

1шт.

1a

447681A1

DOOR

Steering Axle, (Not Shown)

1шт.

See Figure 09D -12

1шт.

With Straw and Chaff Spreader

1шт.

2

188176C1

SUPPORT

1шт.

3

203942C1

SPRING

1шт.

4

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1шт.

5

183093C1

BRACKET

2шт.

6

183094C1

CUSHION

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

232-4115

LOCK NUT,5/16"-18, GC

4шт.

11

495-11034

WASHER,5/16", SAE

4шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

1325376C1

PLATE

Hood Extension

2шт.

15

428291A1

PLATE

Hood Extension, Right-Hand

1шт.

With Straw Chopper

1шт.

16

87307501

PLATE

Hood Extension, Right-Hand

1шт.

With Straw and Chaff Spreader

1шт.

17

1322478C6

PLATE

Hood Extension, Left Hand

1шт.

With Straw Chopper

1шт.

18

87705901

PLATE

Hood Extension, Left-Hand

1шт.

With Straw and Chaff Spreader

1шт.

19

1345126C1

CUSHION

1шт.

20

1968976C1

SEALING STRIP

2шт.

21

316715A1

SEAL

Rubber, Hood Extension

2шт.

Used with 1322478C6

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

23

495-21044

WASHER,3/8"

2шт.

24

231-4146

NUT,3/8"-16, GB

2шт.
