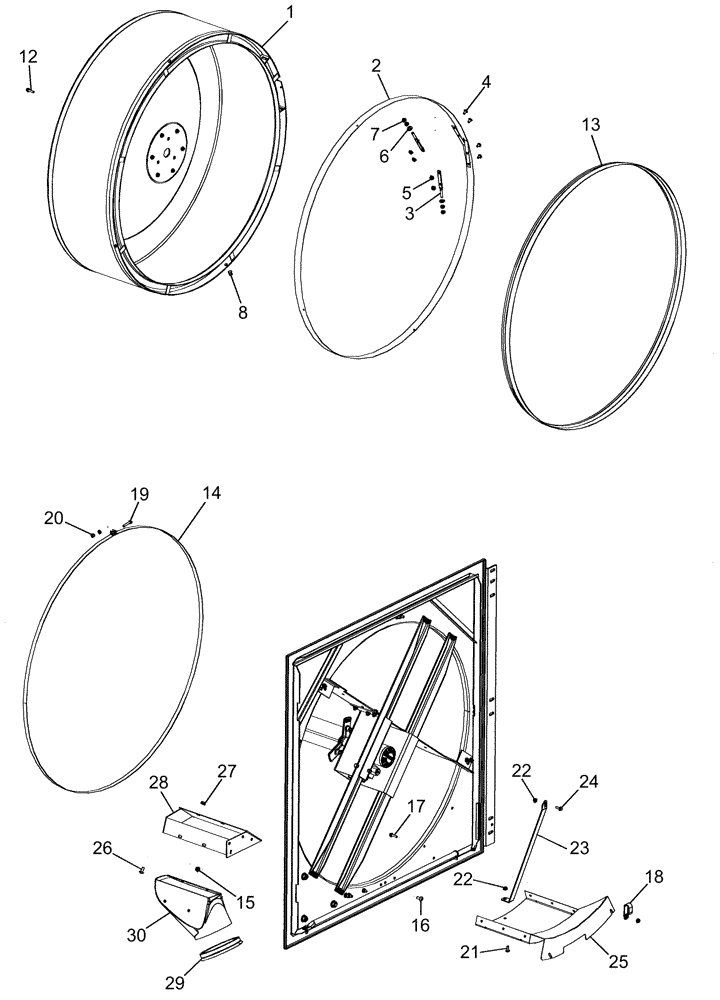

Запчасти Case IH 2388 (02-07) - METAL ROTARY AIR SCREEN ASSY (01) - ENGINE

1

87361459

SCREEN

1шт.

2

87417475

BAND

1шт.

3

87413544

BOLT

2шт.

4

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

6

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

7

425-105

NUT,5/16"-18, G5

4шт.

8

390747A1

RIVET

3шт.

9

87331483

DISC

1шт.

10

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

11

425-284

FLANGE NUT,Flg, 1/4"-20.G5

6шт.

12

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

3шт.

13

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

1шт.

14

87420689

CLAMP,1060mm

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

16

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

3шт.

17

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

18

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

19

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

1шт.

20

231-1444

NUT,1/4"-20, GB

1шт.

21

450-82512

1шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

23

87385914

STRAP

1шт.

24

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1шт.

25

87351930

BRACKET

1шт.

26

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

87385905

BRACKET

1шт.

29

87363448

SEAL,Blockoff, 482mm L

1шт.

30

87378423

NOZZLE

1шт.

31

87302735

REPAIR KIT

Repair Kit, Inc. Wear Strip, Hardware and Instructions, (Not Shown)

1шт.

32

1327979C1

MOLDING

Cut 15 mm (6 in) From 196707C1, (Not Shown)

1шт.
