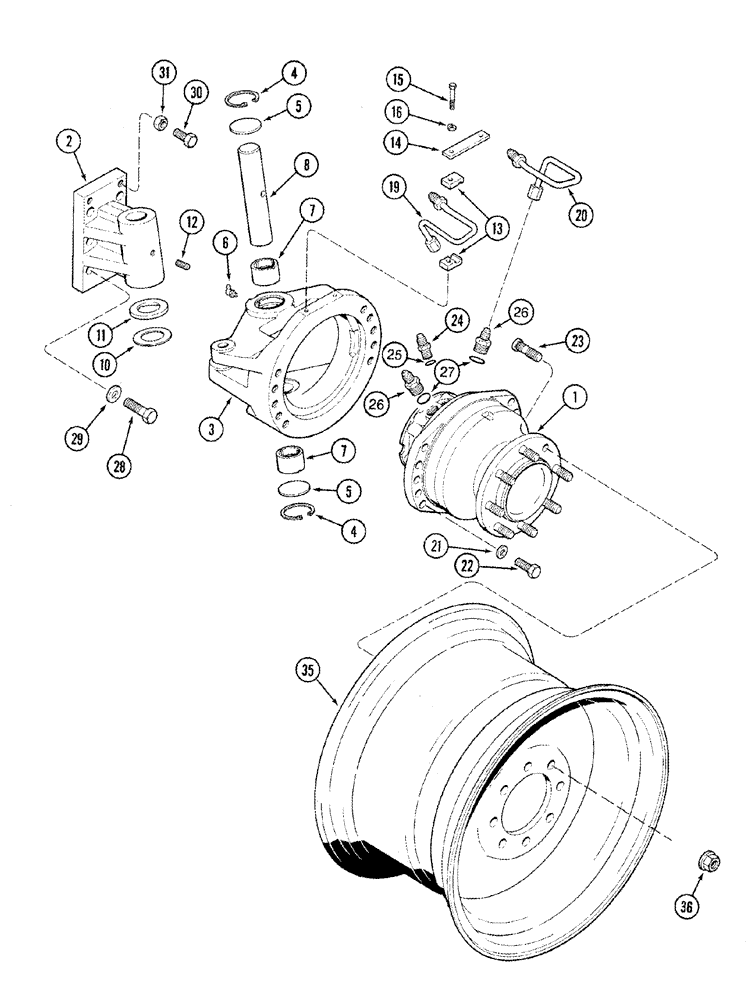

Запчасти Case IH 2388 (05-14) - MOTOR, WHEEL - KING PIN - POWER GUIDE AXLE - AXLE DRIVE WHEEL (11) - TRACKS/STEERING

1

87300716

MOTOR, HYDRAULIC

Wheel Drive

2шт.

See Figure 05-15

1шт.

Corn and Grain Combine

1шт.

2

1970138C1

HOUSING

King Pin

2шт.

3

406799A1

FRAME

RH, Incl. (2) 1970142C1, Ref 7

1шт.

Corn and Grain Combine

1шт.

3

1970354C1

FRAME

LH, Incl. (2) 1970142C1, Ref 7

1шт.

Corn and Grain Combine

1шт.

4

100-21244

SNAP RING,2.44", Int, #244

4шт.

5

41-3040

PLUG,Exp, 2 1/2"

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

7

1970142C1

BUSHING

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

King

2шт.

10

1970381C1

THRUST WASHER

Steel

1-2шт.

11

1970382C1

THRUST WASHER

Bronze

4шт.

12

83-15020

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

2шт.

13

1970148C1

CLAMP

8шт.

Corn and Grain Combine

1шт.

14

1970150C1

PLATE

2шт.

Corn and Grain Combine

1шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

19

1970146C1

HYD TUBE

Pressure, Right Hand Rear, Left Hand Front

2шт.

Corn and Grain Combine

1шт.

20

1970147C1

HYD TUBE

Pressure, Left Hand Rear, Right Hand Front

2шт.

Corn and Grain Combine

1шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

20шт.

92 - 120 Inch Power Guide Axle

1шт.

Corn and Grain Combine

1шт.

22

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

20шт.

92 - 120 Inch Power Guide Axle

1шт.

Corn and Grain Combine

1шт.

23

1970151C1

STUD

Inc. With REF 1

16шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 27

4шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

35

1970153C3

WHEEL ASSY

26 x 15, For 16.9 x 26 and 18.4 x 26" Tire, 8 Hole Pattern

2шт.

Corn and Grain Combine

1шт.

35

257875A2

WHEEL ASSY

28 x 18, For 600/65-R28" Tire, 8 Hole Pattern

2шт.

Corn and Grain Combine

1шт.

35

360213A1

WHEEL ASSY.

26 x 15, For 16.9 x 26 and 18.4 x 26 Inch Tire, 10 Hole Pattern

2шт.

35

220201A1

WHEEL ASSY

30 x 16, For 18.4 x 30" Tire, 10 Hole Pattern

2шт.

35

257878A2

WHEEL ASSY

28 x 18, For 600/65R28" Tire, 10 Hole Pattern

2шт.

36

1541701C1

FLANGE NUT

1шт.

37

179482C1

VALVE STEM

Tire, (Not Shown)

2шт.

38

407184C1

VALVE STEM

Core, Tire, (Not Shown)

2шт.

39

359846A1

PLUG

Tire Valve Hole, (Not Shown)

2шт.

40

181917A2

DECAL

Wheel Bolt Torque

2шт.

See Figure 09H-20

1шт.
