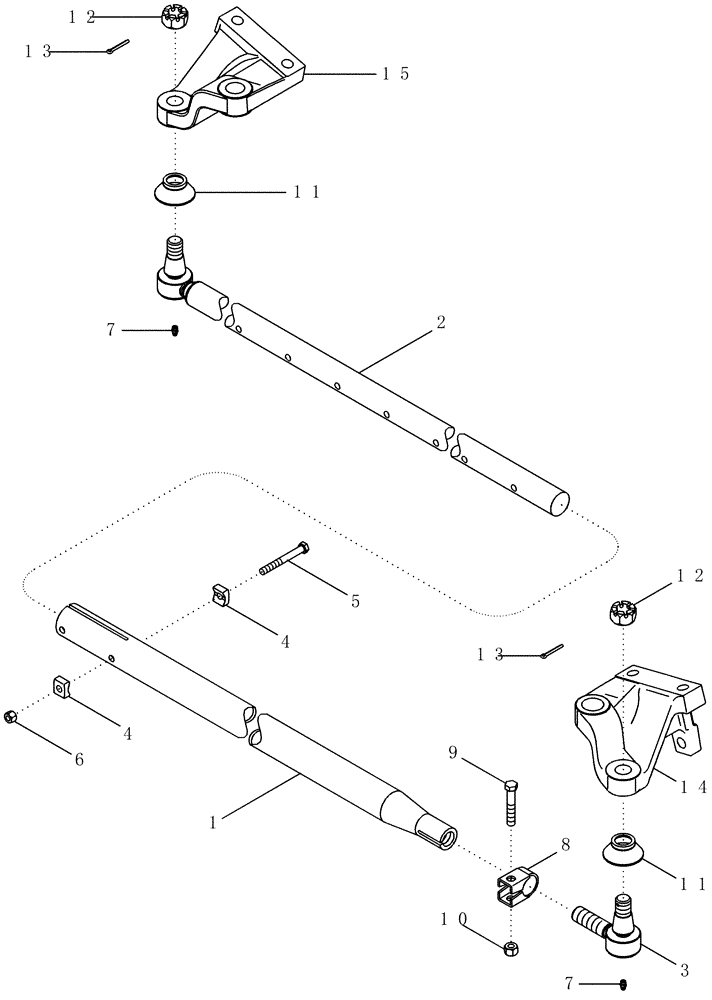

Запчасти Case IH 2388 (05-10) - AXLE, ADJUSTABLE - TIE ROD, WITH DUAL STEERING CYLINDERS (11) - TRACKS/STEERING

87559673

DRAG LINK

Inc. 1 - 12

1шт.

1

87559676

TUBE,2350.77 mm L

Outer

1шт.

2

87559678

THREADED TIE-ROD

Inner

1шт.

3

86984112

BALL JOINT,1-1/8" - 12 x 5-4/9"

1шт.

4

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

4шт.

5

326-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

2шт.

6

232-4136

LOCK NUT,3/8"-16, GC

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

87599078

CLAMP

1шт.

9

426-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

1шт.

10

231-4137

LOCK NUT,7/16"-14, GB

1шт.

11

87301010

BOOT

2шт.

12

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

13

432-816

COTTER PIN,1/8" x 1"

2шт.

14

87545463

ARM

RH

1шт.

15

87545464

SUPPORTING ARM

LH

1шт.
