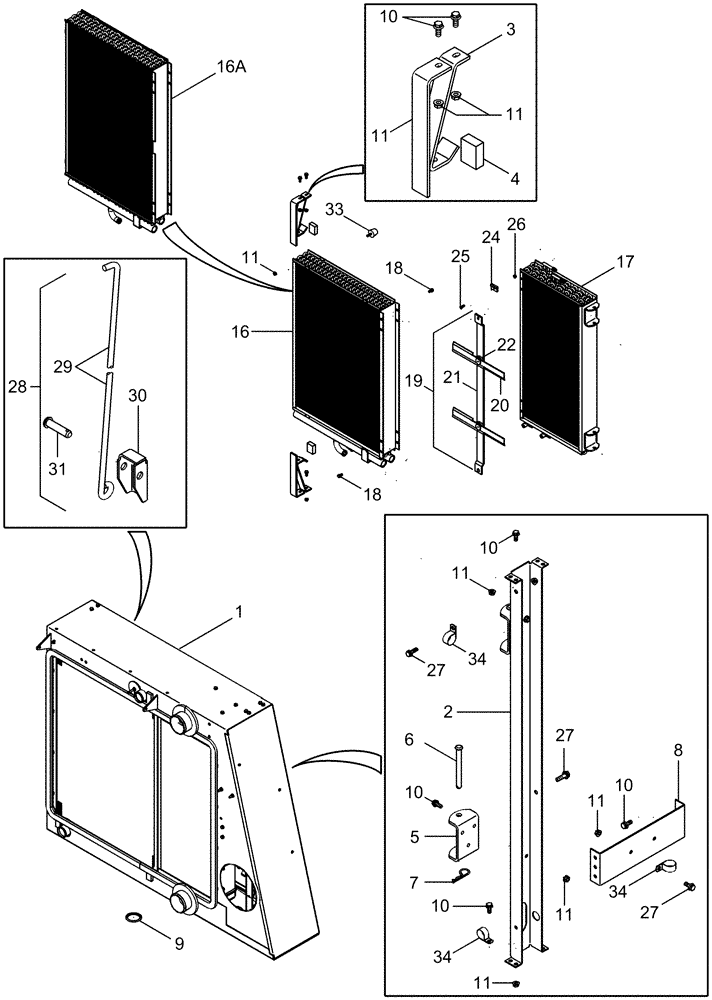

Запчасти Case IH 2388 (02-05) - COOLER BOX ASSY (01) - ENGINE

1

87343320

BOX

Cooler Box

1шт.

2

87429529

BRACKET

1шт.

3

87423364

SUPPORT

2шт.

4

187884C1

SEALING STRIP,50mm L

Cut 2 Inches From 187885C1

2шт.

5

87429534

BRACKET

2шт.

6

439-5880

HEADED PIN,1/2" x 5"

2шт.

7

480523R1

HAIR PIN COTTER

2шт.

8

86984095

BRACKET

Cross Brace

1шт.

9

87000778

PLUG,89mm OD

Clean Out

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

23шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

15

353-410

PLUG,Dome, .875" hole, Nylon

2шт.

16

444921A3

OIL COOLER

1шт.

Corn, Grain and Rice Combine

1шт.

16a

446343A3

OIL COOLER

Oil

1шт.

Rice Combine

1шт.

17

444922A3

COOLER

Fuel/Condenser

1шт.

Corn, Grain and Rice Combine

1шт.

18

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

8шт.

19

87341294

WIPER

Assy, Charge Air Cooler, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER with Pin Assy

2шт.

21

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

22

308803

BALL BEARING

2шт.

23

282857A1

DECAL

Connector Cover, (Not Shown)

2шт.

24

87408871

CLAMP

2шт.

25

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

26

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

27

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

28

87413776

SUPPORT

Oil Cooler Prop, Inc. 29 - 32

1шт.

29

87413775

ROD

1шт.

30

87413774

SUPPORT

1шт.

31

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1шт.

32

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

33

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

34

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.
