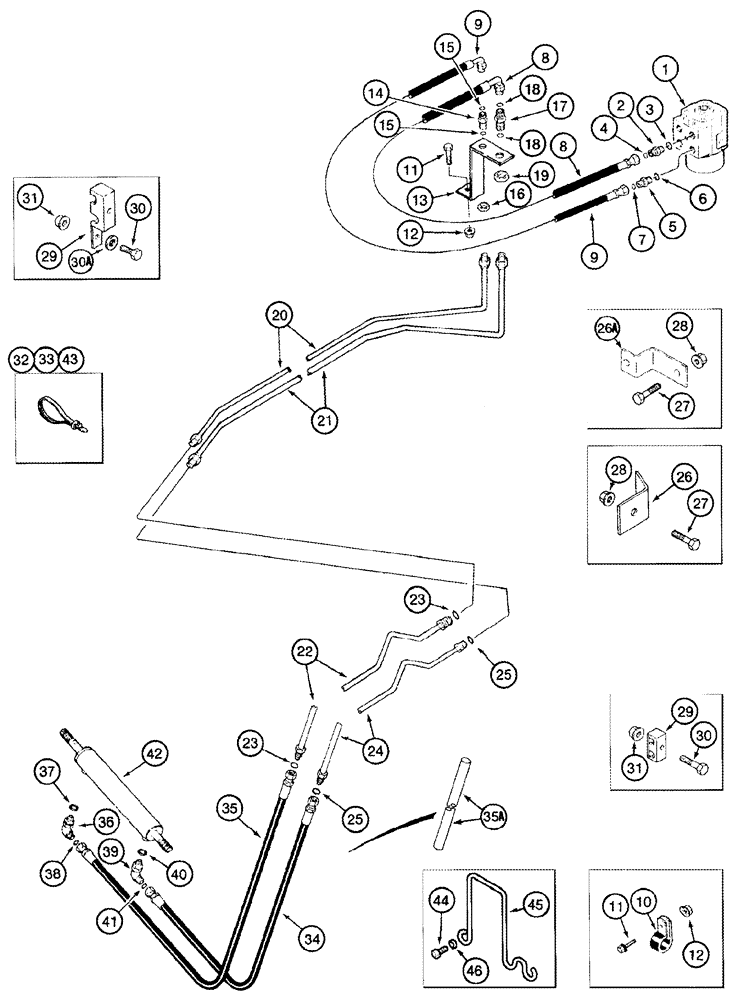

Запчасти Case IH 2388 (05-03) - HYDRAULICS - STEERING PUMP TO CYLINDER (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
387542A1
HYDRAULIC VALVE
Steering, With Single Steering Cylinder, Component Parts Not Serviced Separately
1шт.
1
433742A1
HYDRAULIC VALVE
Steering, With Dual Steering Cylinders, Component Parts Not Serviced Separately
1шт.
2
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 3, 4
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
4
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
5
175170A1
ADAPTER
Inc. 6, 7
1шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
7
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
8
128017A2
FLEXIBLE HOSE
2670 mm (105"), LH Turn
1шт.
9
128019A2
FLEXIBLE HOSE
2670 mm (105"), RH Turn
1шт.
10
515-25476
CLAMP,1 7/8", Insul, 1/2" Bolt
1шт.
11
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
2шт.
12
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
13
128539A1
SUPPORT
1шт.
14
201-120
HYD CONNECTOR,11/16"-16, Blkhd, ORFS
Inc. 15
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
16
201-909
BHD LOCK NUT,Blkhd, 11/16"-16
1шт.
17
201-121
HYD CONNECTOR,13/16"-16, Blkhd, ORFS
Includes 18
1шт.
18
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
19
201-903
TUBE NUT,Blkhd, 13/16"-16
1шт.
20
128571A1
TUBE,0.375" OD, 1911,264 mm Length
9.52 mm dia, Upper Front
1шт.
21
128572A1
TUBE,0.5" OD, 1696,984 mm Length
12,70 mm dia, Lower Front
1шт.
22
364369A1
TUBE
Upper Rear
1шт.
23
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
24
364370A1
TUBE
Lower Rear
1шт.
25
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
26
178960C1
BRACKET
1шт.
26a
196517C1
SUPPORT TUBE
1шт.
27
409-7612
BOLT,3/8"-16 x 1.09" OAL
2шт.
28
231-5146
FLANGE NUT,3/8"-16
2шт.
29
1316613C1
CLAMP
5шт.
30
413-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
5шт.
30a
495-81121
WASHER,.344" x 1 1/2" x .060"
6шт.
31
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
5шт.
32
306132C1
CABLE TIE,14.5" L
CABLE STRAP
1шт.
33
435437A1
CABLE TIE,3/16" x 7 1/4"
CABLE STRAP
2шт.
34
128083A2
FLEXIBLE HOSE
1727 mm (68 in), To Cylinder Closed End
1шт.
With 100 - 120 Inch Adjustable Axle
1шт.
With 120 - 144 Inch Adjustable Axle
1шт.
With Power Guide Axle
1шт.
With 100 - 120 Inch Adjustable Axle
1шт.
With 120 - 144 Inch Adjustable Axle
1шт.
With Power Guide Axle
1шт.
36
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Inc. 37, 38, Single Steering Cylinder
1шт.
See Figure 05-19
1шт.
36
201-406
TEE,11/16"-16 x 9/16"-18 Run, ORFS
Dual Steering Cylinder
1шт.
See Figure 05-19
1шт.
37
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
38
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
39
201-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 40, 41, Single Steering Cylinder
1шт.
See Figure 05-18
1шт.
39
201-416
TEE,13/16"-16 ORFS x 13/16"-16 Sw Run
Dual Steering Cylinder
1шт.
See Figure 05-19
1шт.
40
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
41
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
42
CYLINDER,Double Acting, 25.4mm Rod, 228.6mm Stroke
64 ID x 229 mm strk, Single Steering Cylinder
1шт.
87337226R
REMAN-HYD CYLINDER
2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ300001 ( 10/06 - )
1шт.
87337226C
CORE-HYD CYLINDER
Return Number
1шт.
See Figure 05-20
1шт.
42
87337229
CYLINDER
57 ID x 229 mm strk, Dual Steering Cylinder
2шт.
See Figure 05-21
1шт.
43
386170C1
CABLE TIE,.30" x 27 1/2"
CABLE STRAP 711 mm (28 in)
1шт.
43
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
1шт.
45
232707A1
GUIDE
1шт.
44
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
2шт.
46
495-81135
WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk
2шт.
47
231-5146
FLANGE NUT,3/8"-16
(Not Shown)
2шт.
