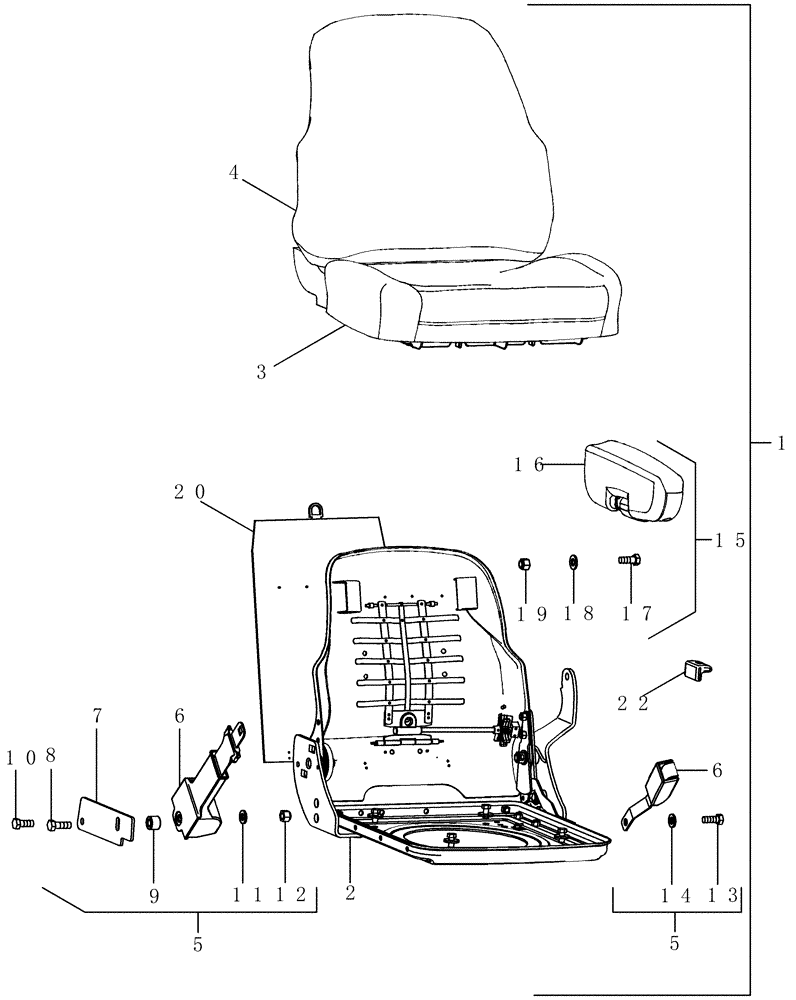

Запчасти Case IH 2388 (09G-11) - SEAT, OPERATOR - AIR SUSPENSION - CUSHIONS AND KNOBS (10) - CAB & AIR CONDITIONING

86989910

SEAT

Inc. 1 - 22, Inc. Figure(s) 09G-12, 09G-13

1шт.

1

87413044

SEAT

ASSY, Top, Inc. 2 - 22

1шт.

2

87416485

KIT

Seat Top

1шт.

3

87416486

SEAT CUSHION

ASSY, Cushion, With Operator's Presence System

1шт.

4

87416487

KIT

Back Cushion

1шт.

5

87416490

KIT

Seat Belt, Inc. 6 - 14

1шт.

6

279671A1

SAFETY BELT ,48.00 mm W

1шт.

7

87416920

PLATE

Seat Belt Mounting

1шт.

8

815-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

9

NSS

NOT SOLD SEPARAT

Spacer, Mounting Plate

1шт.

10

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

11

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

13

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

15

87416488

KIT

LH Armrest, Incl. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

Armrest

1шт.

17

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

1шт.

18

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

19

832-10312

NUT,M12 x 1.75, Cl8

1шт.

20

86994172

SERVICE KIT

KIT, Manual Holder, If Equipped

1шт.

21

86994165

SEAT ACCESSORY

KIT, Recliner Service, (Not Shown)

1шт.

22

87416475

KNOB

Recliner

1шт.
