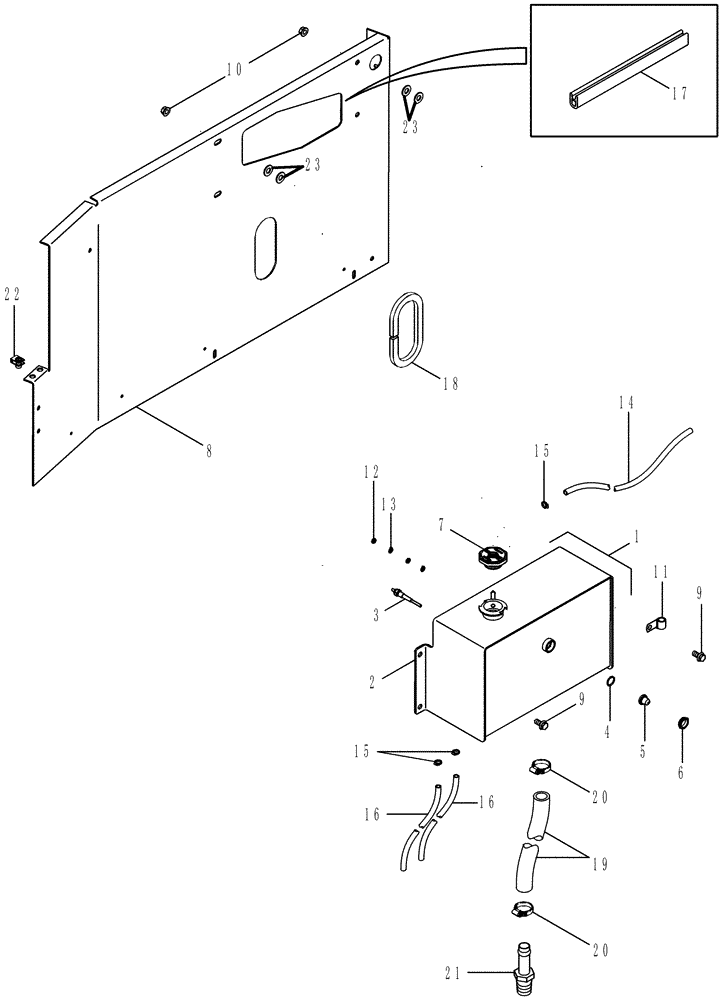

Запчасти Case IH 2388 (02-03) - DEAERATION SYSTEM (01) - ENGINE

1

87403849

TANK

Deaeration Assy, Inc. 2 - 7

1шт.

2

87403850

TANK

Deaeration

1шт.

3

279476A1

SENSOR

Coolant Probe

1шт.

4

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

5

86990536

LENS

Sight

1шт.

6

86990537

NUT,15/16"

Lens Retainer

1шт.

7

87109814

FILLER CAP

Deaeration Tank

1шт.

8

87529011

BRACKET

Rear

1шт.

8

87306892

SHEET

W/Rivet Nuts

1шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

12

225-14210

NUT,#10-32

2шт.

13

492-11010

LOCK WASHER,#10

2шт.

14

87408617

HOSE,7.92mm ID x 4850mm L

Cut From 86989959

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

3шт.

16

86989649

HYDRAULIC HOSE,8.00 mm ID x 900.00 mm

Deaeration, Cut 960 mm (35-3/8") from Bulk Hose 86989959

2шт.

17

87029779

SEAL

Cut 287 mm (11-1/3 in) From 196707C1

2шт.

18

87063C3

SEAL

Cut 406 mm (16 in) from 196707C1

1шт.

19

NS

NOT SERVICED

HOSE Deareation Supply, Cut 1005 mm (39.6 in) From Bulk Hose B90928

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

21

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

22

488837C1

SPRING NUT

Speed, 5/16

2шт.

23

87613214

WASHER,0.41" ID x 1" OD x 0.18" Thk

8шт.
